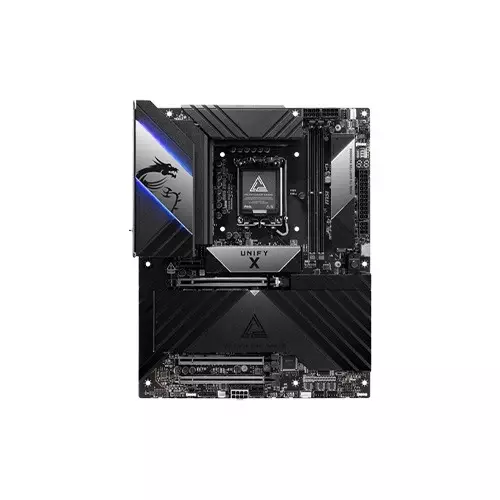

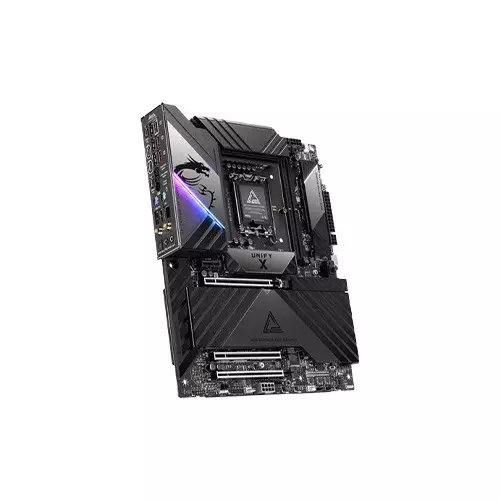

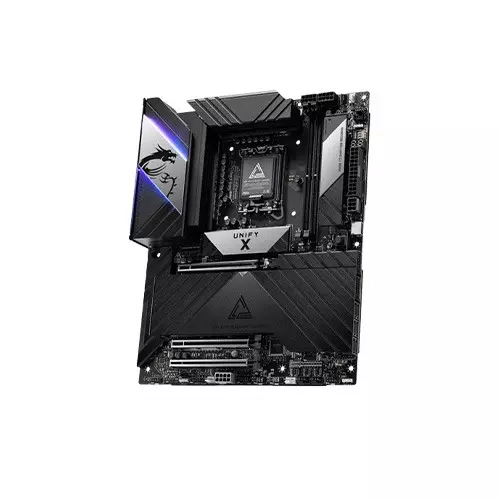

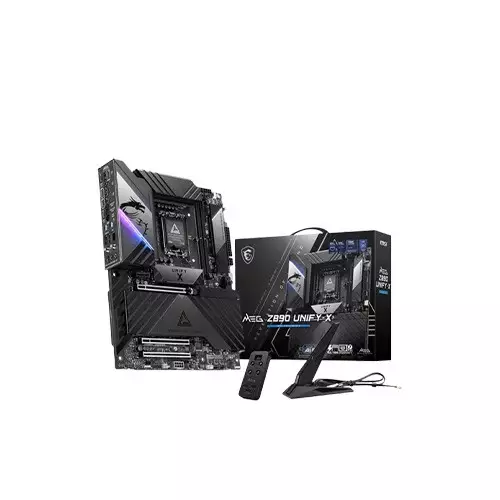

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

(0) Review

Brand:MSI
Product Code: 17942
Model: MEG Z890 UNIFY-X
Availability: In Stock

Description

Chipset - INTEL Z890
CPU - Supports Intel Core Ultra Processors (Series 2) LGA 1851
Memory - 2x DDR5 UDIMM, Capacity 128GB
OPERATING SYSTEM - Support for Windows 11 64-bit

৳86,500

Pay ৳86,500

Pay cash discounted price and save

Pay ৳ 15,858/ month

EMI available for 6 months on regular price: ৳95,150

remove add

Specification
Description
Reviews

Product Specification

Basic Information
Supported CPU	Intel Core Ultra Processors (Series 2), LGA 1851
Chipset	INTEL Z890
Form Factor	ATX (243.84mmx304.8mm)
Memory
Number of Memory Slots	2x DDR5 UDIMM, Maximum Memory
Maximum Memory	128GB
Supported Memory	Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s
Graphics
Graphics	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
Expansion Slots	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot. ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot. 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. * Please refer to the manual for M.2 SSD heatsink restrictions.
Storage
Supported Storage	6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 6x SATA 6G * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. * Please refer to the manual for M.2 SSD heatsink restrictions.
Network
LAN	1x Intel® Killer E5000B 5G LAN
Wireless	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Audio
Audio	1x Front Audio (JAUD)
BIOS
BIOS	M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
Ports & Connectors
USB Ports	USB Type-C 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Display Port	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Others
Special feature	LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED
Warranty
Warranty	3 year warranty

Description

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard

The MSI MEG Z890 UNIFY-X DDR5 Intel Z890 ATX Motherboard is a high-performance board designed for enthusiasts who want the most power, efficiency, and dependability. This motherboard, designed for Intel's latest processors with the LGA 1851 socket, offers great performance and stability, making it ideal for gaming, overclocking, and content creation. It supports cutting-edge DDR5 memory with optimized overclocking, resulting in faster load times and better multitasking performance. Its PCIe 5.0 slots enable seamless interoperability with next-generation graphics cards and NVMe SSDs, resulting in lightning-fast data transfer. The powerful VRM power supply system ensures consistent performance even under extreme workloads, while superior cooling solutions with expanded heatsinks and heat pipes assure thermal efficiency. The MEG Z890 UNIFY-X also includes high-speed networking, including WiFi 7 and 2.5G LAN, for dependable and lightning-fast connectivity. Its sleek, all-black design with modest accents lends a professional appearance, while the powerful BIOS and onboard features make system customization simple and precise. The MSI MEG Z890 UNIFY-X is ideal for PC builders who prioritize performance and endurance. It sets a new bar for high-end ATX motherboards .MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard comes with 3 years warranty.
