| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series | |
| Chipset | AMD B850 |
|
| Form Factor | ATX 243.84mm x 304.8mm |
|
| Memory | ||
| Number of Memory Slots | 4 x UDIMM | |
| Channel Supported | ||
| Maximum Memory | max. 256GB, DDR5 Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Supported Memory | 256GB | |
| Graphics | ||
| Graphics | 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| Storage | ||
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) |
|
| Network | ||
| LAN | 1x Realtek 8126VB 5G LAN |
|
| Wireless | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| BIOS | ||
| BIOS | ||
| Ports & Connectors | ||
| HDMI | ||
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| DVI-D (s) | ||
| Display Port | 1x DisplayPort 1.2 |
|
| Audio | 1x Front Audio (JAUD) | |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| Others | ||
| Bundled Software | ||
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
| Special feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 Years | |

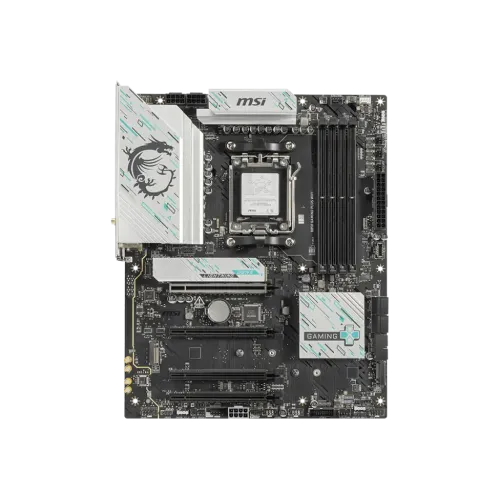

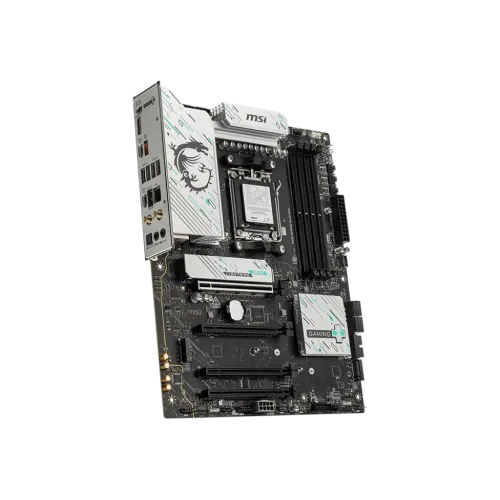

The MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard is a powerful and feature-rich board intended for gamers and PC enthusiasts seeking dependable performance and seamless communication. It uses the AM5 socket and supports the latest AMD Ryzen 9000, 8000, and 7000 series CPUs, making it a superb choice for high-performance gaming and multitasking. With DDR5 memory support, the motherboard provides higher speeds and increased efficiency for current applications. Its ATX form factor provides broad compatibility, while the strengthened PCIe slots provide stability for high-end graphics cards. The board also supports PCIe 5.0 for ultra-fast data transfer and next-generation storage solutions. Its extensive cooling features, numerous fan headers, and heatsinks ensure that systems perform effectively even under severe loads. The integrated WiFi assures stable wireless connectivity, while the high-speed LAN provides low-latency gaming performance. The B850 GAMING PLUS WIFI, which includes MSI's distinctive gaming features, increased audio, and a user-friendly BIOS, is designed to provide durability, expandability, and top-tier gaming performance in one package. The MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard comes with 3 years warranty.
