| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2), LGA 1851 | |
| Chipset | INTEL B860 | |
| Form Factor | mATX 243.84mmx243.84mm | |
| Memory | ||
| Number of Memory Slots | 4x UDIMM | |
| Maximum Memory | 256GB | |
| Supported Memory | Memory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz | |
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| Storage | ||
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G | |
| Network | ||
| LAN | Intel Killer E5000 5Gbps LAN | |
| Wireless | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM | |
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 with FRL | |

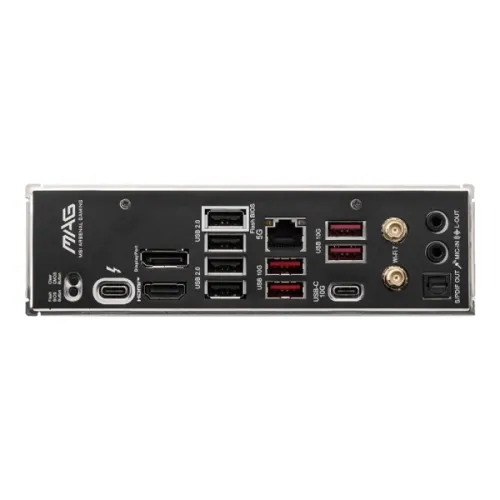

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) USB Type-C | |
| Display Port | 1x DisplayPort 1.4 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports | |
| Others | ||
| Wireless Communication module | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM | |
| Special feature | 4x EZ Debug LED 1x EZ Memory Detection LED | |
| Warranty | ||
| Warranty | 3 Years | |
The MSI MAG B860M MORTAR WIFI DDR5 LGA 1851 mATX Motherboard is a small but powerful alternative for users looking for great performance and dependability in a smaller package. It uses the Intel B860 chipset and LGA 1851 socket to accommodate the latest 14th and 15th Generation Intel Core processors, providing ample processing capacity for gaming, content creation, and work. It supports DDR5 memory, which delivers increased bandwidth and efficiency for better data processing and multitasking performance. Despite its mATX size, the motherboard has plenty of expansion options, including PCIe 5.0 and PCIe 4.0 slots for graphics and storage, as well as several M.2 slots with heatsinks for lightning-fast NVMe SSDs. Its sturdy power design and efficient cooling technology assure consistent system performance even under severe workloads. 2.5G LAN and WiFi 7 provide ultra-fast wired and wireless connections for gaming and streaming. The MSI MAG B860M MORTAR WIFI DDR5 Motherboard is an excellent alternative for customers who want to build a high-performance and future-ready small system. It also includes USB 3.2 Gen 2x2 connection, high-quality audio components, and increased durability. The MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 ATX Motherboard comes with 3 Year warranty.
