| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2), LGA 1851 | |
| Chipset | INTEL Z890 | |
| Form Factor | ATX (243.84mmx304.8mm) | |
| Memory | ||
| Number of Memory Slots | 4x UDIMM | |
| Maximum Memory | 256GB | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Graphics | ||
| Graphics | Support HDMI 2.1, maximum resolution of 4K 60Hz* Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| Storage | ||
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek 8126 5Gbps LAN | |
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|

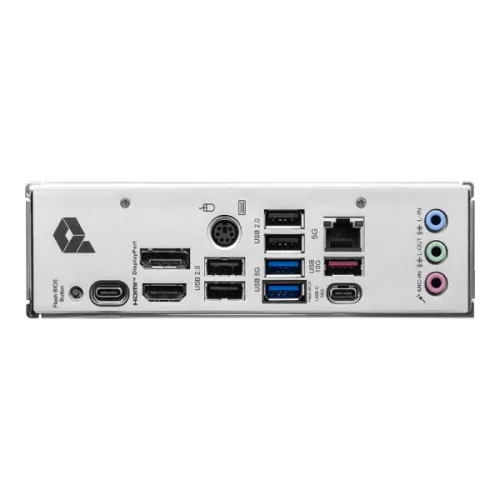

| Ports & Connectors | ||
| HDMI | 1x HDMI | |
| USB Ports | USB Type-C4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Display Port | 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Others | ||
| Special feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 Years | |

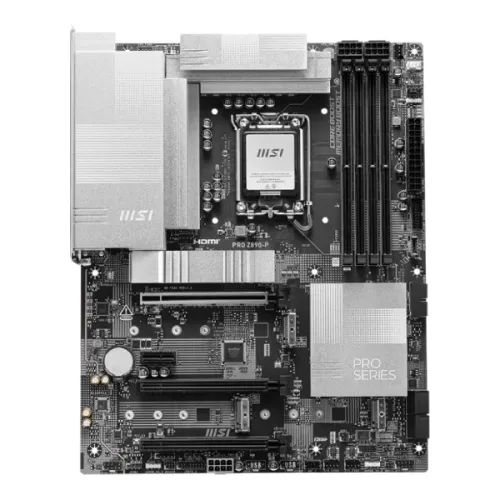

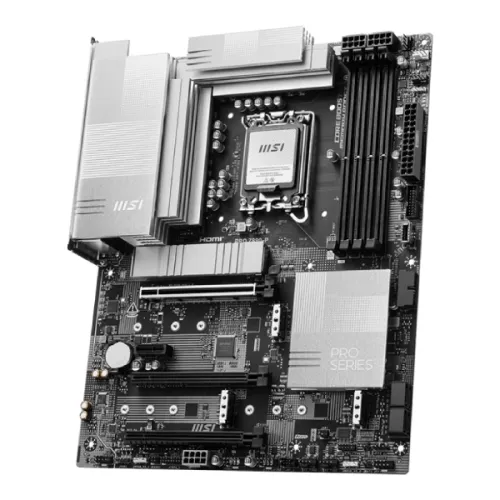

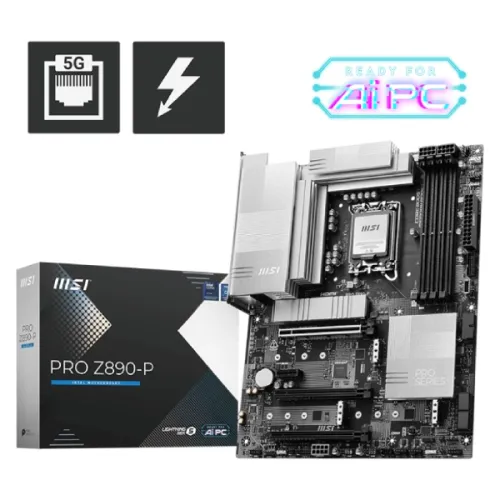

The MSI PRO Z890-P DDR5 LGA 1851 ATX Motherboard** is designed to provide reliability, performance, and efficiency for both professional and general computer applications. Powered by the most recent Intel Z890 chipset, it supports Intel 14th and 15th Gen Core CPUs with the sophisticated LGA 1851 socket, ensuring long-term compatibility and outstanding performance. With support for DDR5 memory technology, it provides quicker speeds, increased bandwidth, and greater efficiency for demanding workloads, multitasking, and current applications. The ATX form factor offers wide expansion with numerous PCIe 5.0 and PCIe 4.0 slots, allowing for smooth integration of next-generation graphics cards and NVMe storage systems. Its strong power supply design offers consistent performance and system stability even under severe load. The board features broad connectivity options with high-speed USB ports, including USB 3.2 Gen 2x2 Type-C, as well as support for M.2 storage with sophisticated heatsink cooling for long-term performance. It is designed with advanced thermal solutions to maintain efficiency and durability in harsh environments. The MSI PRO Z890-P DDR5 ATX Motherboard is a superb foundation for developing a powerful and future-ready PC aimed at professionals, creators, and gamers. The MSI PRO Z890-P DDR5 LGA 1851 ATX Motherboard comes with 3 Year warranty.
