| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD X870E | |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM sockets | |
| Channel Supported | Dual Channel | |
| Maximum Memory | Up to 256 GB (Maximum 64 GB per slot) | |
| Supported Memory | Support for DDR5 9000(OC) to 4400 MT/s modules; Support for AMD EXPO memory profiles; Unbuffered, Non-ECC configurations | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support + ASMedia USB4® Controller | |
| Max Shared Memory | Dependent on the installed AMD Ryzen processor | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe 5.0 x16 slot (actual speed depends on CPU) 1 x PCIe 4.0 x16 slot (runs at x2) 1 x PCIe 3.0 x16 slot (runs at x2) | |
| Storage | ||
| Supported Storage | Total 4 x M.2 slots & 4 x SATA 6Gb/s ports: • 1 x M.2 Socket (M2A_CPU) supporting PCIe 5.0 x4/x2 SSDs • 3 x M.2 Sockets (M2B/M2C/M2D_SB) supporting PCIe 4.0 x4/x2 SSDs | |
| Network | ||
| LAN | Realtek 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) | |
| Wireless | Qualcomm Wi-Fi 7 QCNCM865 (802.11be) with 160MHz channels | |
| Audio | ||
| Audio | Realtek ALC1220 CODEC High Definition Audio (2/4/5.1/7.1-channel), support for S/PDIF Out | |
| BIOS | ||
| BIOS | 1 x 512 Mbit flash, Licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port (supporting a maximum resolution of 4096x2160 60 Hz, HDMI 2.1 version) | |
| USB Ports | Rear IO: 2 x USB4® Type-C, 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A Internal Header: 1 x USB Type-C (USB 3.2 Gen 2x2), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 | |
| Display Port | Supported via Rear Dual USB4 Type-C ports (Max resolution 3840x2160 @ 240 Hz, DP 1.4 version & HDR) | |
| RAID | NVMe SSD: RAID 0, RAID 1, RAID 5, and RAID 10 SATA: RAID 0, RAID 1, and RAID 10 (RAID 5 requires Ryzen 9000 series) | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (For the GC-TPM2.0 SPI V2 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX, 2 x 8-pin ATX 12V, 1 x CPU fan header, 1 x water cooling pump header, 4 x system fan headers, 2 x system fan/pump headers, 3 x ARGB Gen2 headers, 1 x RGB header, 1 x Clear CMOS, 1 x Reset, 2 x Temp Sensors, 1 x Noise Detection | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) | |
| Wireless Communication module | Qualcomm Wi-Fi 7 + Bluetooth® v5.4 | |
| Special feature | X3D Turbo Mode 2.0 (AI-optimized performance), M.2 EZ-Flex heat dissipation, PCIe & M.2 EZ-Latch quick release, Smart Fan 6, RGB FUSION, Q-Flash Plus (BIOS Update without CPU/RAM) | |
| Warranty | ||
| Warranty | 3 Years | |

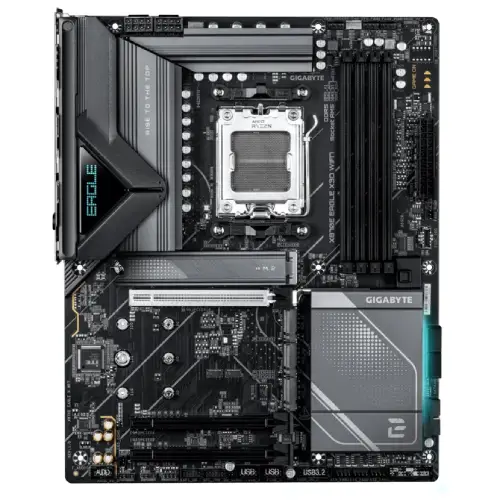

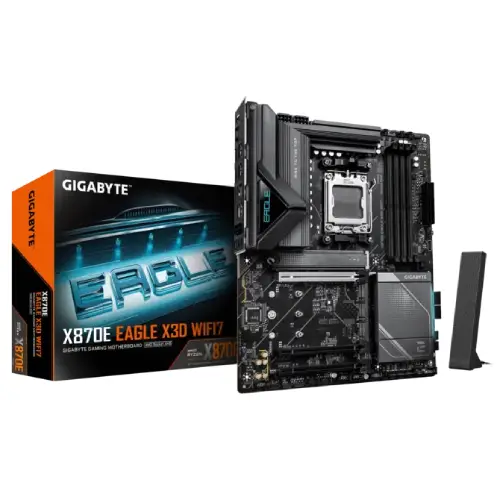

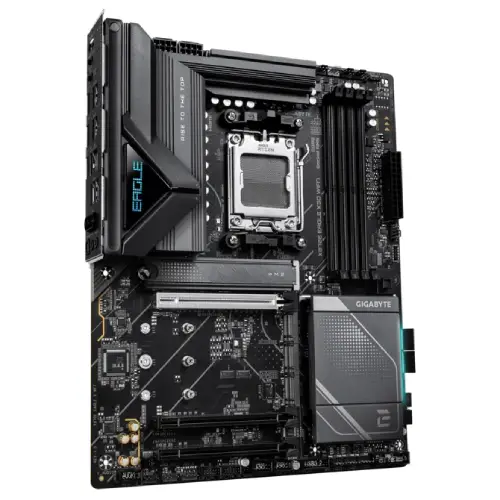

The Gigabyte X870E EAGLE X3D WIFI7 is an ATX AMD X870E motherboard built for AMD Ryzen 9000/8000/7000 series AM5 processors, featuring AI-powered X3D Turbo Mode 2.0 for optimized gaming performance. It supports dual-channel DDR5 memory up to 256GB with AMD EXPO™ and OC speeds reaching 9000MT/s. The board delivers robust power with a digital twin 14+2+2 phase VRM solution, ensuring stable performance across all Ryzen 9000 series CPUs. Storage includes four M.2 slots—one PCIe 5.0 x4 and three PCIe 4.0 x4—plus four SATA 6Gb/s ports, enabling ultra-fast NVMe storage configurations. Expansion features a PCIe 5.0 x16 EZ-Latch Plus slot with 10x strength for GPUs, alongside PCIe 4.0 x4 and PCIe 3.0 x2 slots. Networking integrates Realtek 5GbE LAN and Qualcomm Wi-Fi 7 (QCNCM865) with Bluetooth 5.4 and directional ultra-high gain antenna. Audio uses Realtek ALC1220 with DTS:X® Ultra and S/PDIF Out. Rear I/O includes HDMI 2.1, Dual USB4 Type-C with DP-Alt, and HDD support. Gigabyte provides a 5-year warranty on this motherboard.
