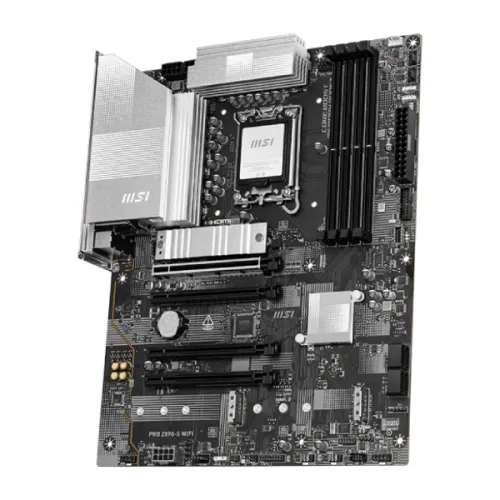

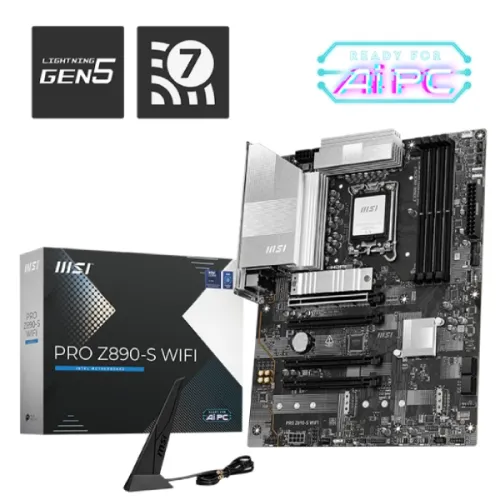

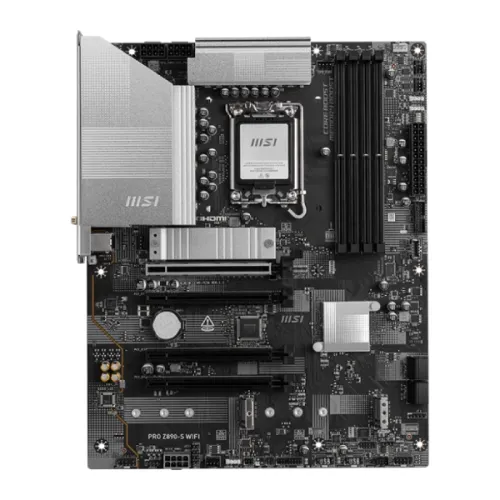

MSI PRO Z890-S WIFI DDR5 LGA 1851 ATX Motherboard

(0) Review

Brand:MSI
Product Code: 17948
Model: PRO Z890-S WIFI
Availability: In Stock

Description

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Dual Channel 8800+ MT/s (OC), Max 256GB
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2 Slot, 1x 2.5Gbps LAN, Intel Wi-Fi 7, Bluetooth 5.4

৳37,300

Pay ৳37,300

Pay cash discounted price and save

Pay ৳ 6,838/ month

EMI available for 6 months on regular price: ৳41,030

remove add

Specification
Description
Reviews

Product Specification

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset	INTEL Z890
Form Factor	ATX 243.84mmx304.8mm
Memory
Number of Memory Slots	4x UDIMM
Maximum Memory	256GB
Supported Memory	Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Graphics
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Expansion Slots
Expansion Slots	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
Storage
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Network
LAN	Realtek 8125D 2.5Gbps LAN
Wireless	Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Audio
Audio	1x Front Audio (JAUD)
Ports & Connectors
HDMI	1x HDMI

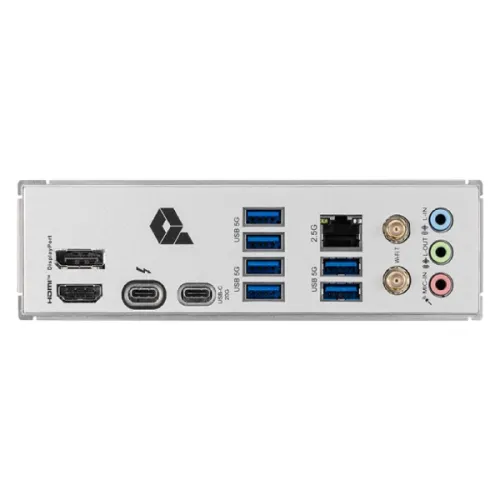

USB Ports	USB Type-C 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Display Port	1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1
Audio	1x Front Audio (JAUD)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Others
Wireless Communication module	The Wireless module is pre-installed in the M.2 (Key-E) slot
Warranty
Warranty	3 Year

Description

MSI PRO Z890-S WIFI DDR5 LGA 1851 ATX Motherboard

The MSI PRO Z890-S WIFI DDR5 LGA 1851 ATX Motherboard is intended to provide stability, performance, and efficiency for modern computing requirements. It features the Intel Z890 chipset and is compatible with the latest Intel Core processors on the LGA 1851 socket, ensuring seamless multitasking and excellent performance for gaming, multimedia creation, and professional activities. This motherboard supports DDR5 memory, which provides quicker transfer rates and increased bandwidth, hence improving system responsiveness and overall efficiency. It features PCIe 5.0 slots for next-generation graphics cards and ultra-fast storage, ensuring long-term performance. It comes with WiFi 7 and 2.5G LAN, ensuring high-speed, stable connectivity for work or online gaming. The PRO Z890-S also has extensive I/O capabilities, including high-speed USB Type-C, making it suitable for current peripherals and devices. Even in high-volume environments, advanced thermal management technologies ensure consistent cooling and long-term reliability. Built with MSI's emphasis on durability and professional-grade design, the MSI PRO Z890-S WIFI DDR5 ATX Motherboard is an ideal choice for consumers looking for a dependable, feature-rich base for their PC projects. MSI PRO Z890-S WIFI DDR5 LGA 1851 ATX Motherboard comes with 3 years warranty.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

Rating: Bad Good

What is the best price of MSI PRO Z890-S WIFI DDR5 LGA 1851 ATX Motherboard in Bangladesh?

The best price of MSI PRO Z890-S WIFI DDR5 LGA 1851 ATX Motherboard in Bangladesh is 37,300. You can buy the MSI PRO Z890-S WIFI DDR5 LGA 1851 ATX Motherboard at best price from our website.
