| Basic Information | ||
| Supported CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B650 |
|
| Form Factor | mATX 211mmx243.84mm |
|
| Memory | ||
| Number of Memory Slots | 2x DDR5 | |
| Channel Supported | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 128GB | |
| Supported Memory | Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 | |
| Max Shared Memory | maximum resolution of 4K 60Hz* 1x VGA |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot |
|
| Storage | ||
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek RTL8111H Gigabit LAN |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Ports & Connectors | ||

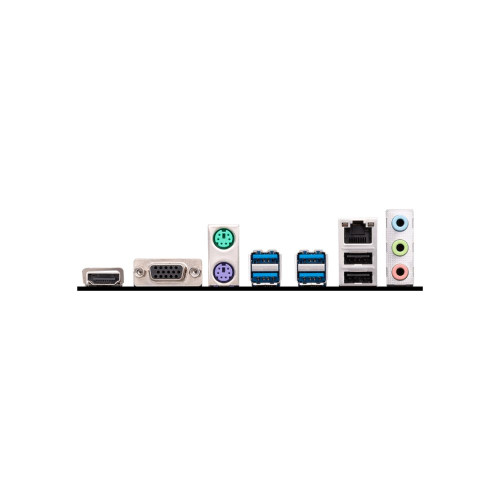

| HDMI | 1x HDMI 2.1, maximum resolution of 4K 60Hz* 1x VGA |
|
| USB Ports | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
| Audio | 1x Front Audio (JAUD) | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
|
| Others | ||
| Special feature | 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |

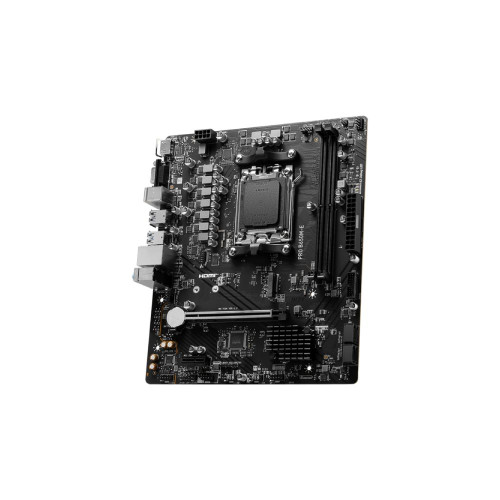

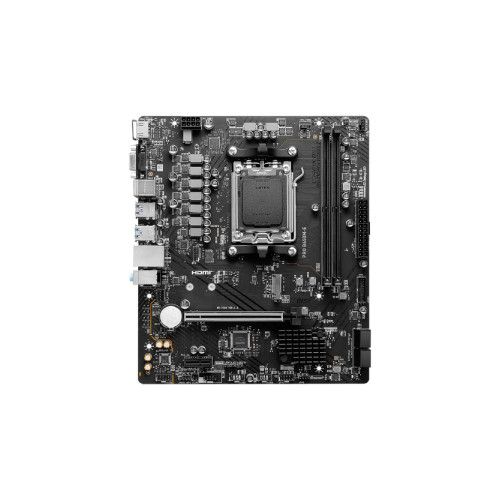

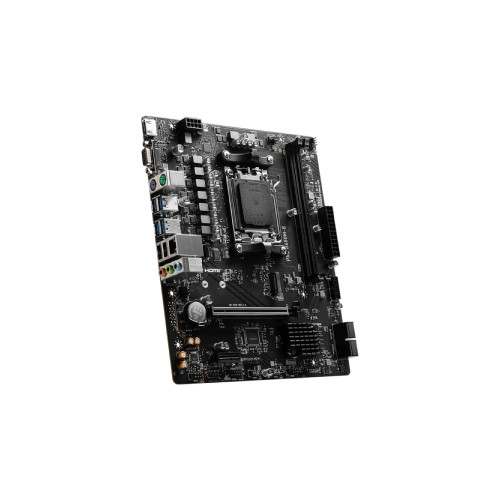

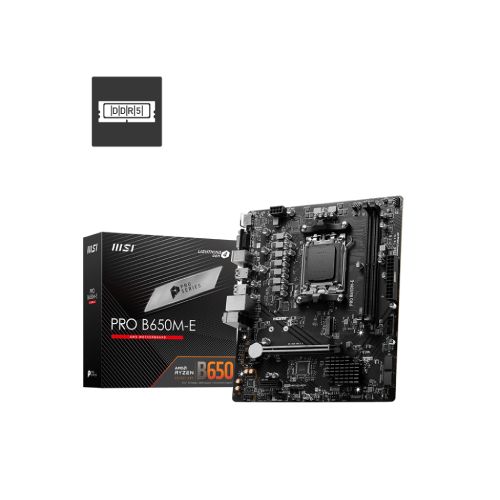

The MSI PRO B650M-E AMD B650 Chipset AM5 mATX Motherboard supports AMD Ryzen 9000, 8000, and 7000 series desktop processors. It employs the latest AM5 socket, ensuring future-proof support for demanding users and gamers. The motherboard has two DDR5 memory slots and can accommodate up to 128GB of RAM. It provides high-speed performance and allows for overclocking up to 6800+MHz. The MSI PRO B650M-E board supports AMD EXPO profiles and has a dual-channel architecture, making it ideal for multitasking, multimedia creation, and gaming. In terms of graphics, the board has both HDMI 2.1 and VGA outputs, making it compatible with both new and older displays. The HDMI connector supports up to 4K at 60Hz resolution, although display possibilities vary depending on whether your CPU has integrated graphics. It has one PCIe x16 slot and one PCIe x1 slot for expansion, with PCIe 4.0 and 3.0 supported, depending on the processor. This MSI PRO B650M-E AM5 mATX motherboard also includes one M.2 slot with PCIe 4.0 x4 speed for high-performance SSDs and four SATA 6Gb/s connections for additional storage. The audio portion is driven by the Realtek ALC897 codec, which provides 7.1-channel HD audio for an immersive experience. Realtek Gigabit LAN provides connectivity, as do a variety of USB connections, including USB 5Gbps Type-A. The MSI Motherboard, which is built on a robust mATX PCB, contains useful features such as EZ Debug LED indications and TPM 2.0 support. It is suitable for Windows 10 and 11. The MSI PRO B650M-E AMD B650 Chipset AM5 mATX Motherboard comes with 3 years warranty.
