| Basic Information | ||
| Supported CPU | Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5 | |
| Chipset | AMD X870 | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB |
|
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology | |
| Maximum Memory | Max. capacity of system memory: 256GB | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* | |
| Graphics | ||
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* |
|
| Storage | ||
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
|
| Audio | ||
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out Port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
|
| BIOS | ||
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | - 2 x USB4 Type-C Ports (40 Gb/s)* - 4 x USB 3.2 Gen1 Type-A Ports - 6 x USB 2.0 Ports - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
| RAID | - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* |
|

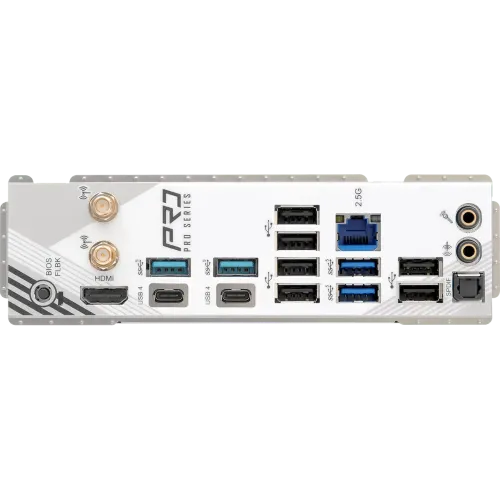

| Internal I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 4 x USB 3.2 Gen1 Type-A Ports - 6 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Special feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Warranty | ||
| Warranty | 3 Years | |

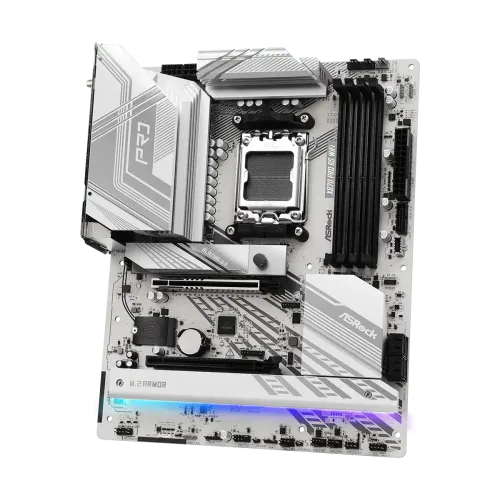

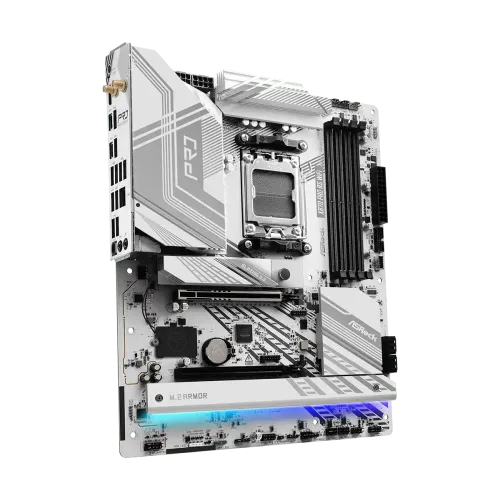

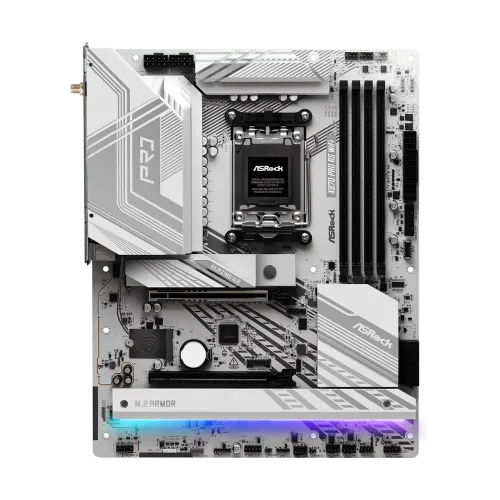

The ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard is a high-performance ATX motherboard designed for AMD's latest AM5 platform, offering top-tier features for gamers, creators, and PC enthusiasts. Powered by the cutting-edge X870 chipset, this board supports DDR5 memory, enabling ultra-fast data transfer and improved multitasking capabilities. It features USB4 Type-C ports that offer speeds of up to 40 Gb/s, 2.5G LAN, and Wi-Fi 7 for fast and reliable connectivity. The integrated RDNA graphics supports resolutions up to 8K 30Hz via USB4 ports. The ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard is built for durability with a 14+2+1 power phase design, 80A, and enlarged heatsink armor for improved thermal performance. An integrated I/O shield, BIOS Flashback button, and ASRock Auto Driver Installer simplify setup and updates. Storage options include Blazing M.2 Gen5, Hyper M.2 Gen4, and Ultra M.2 Gen3 slots, along with support for RAID 0, 1, and 10 configurations for M.2 NVMe drives. Audio is enhanced by Realtek ALC1220 7.1 HD Audio with Nahimic software, while the Dragon 2.5G LAN software optimizes network performance. Cooling options include multiple smart fan connectors and an AIO pump header. The ASRock X870 Pro RS WiFi AM5 Motherboard provides extensive USB connectivity with USB 3.2 Gen2x2, USB 3.2 Gen1, and USB 2.0 ports for front and rear panels. With built-in WiFi 7 and 2.5GbE LAN, it delivers lightning-fast network connectivity for smooth online gaming and streaming. The board also includes PCIe 5.0 support for next-gen graphics cards and storage, along with premium features like USB 4.0, robust 14+2+1 power phase design, and reinforced PCIe slots for durability. Its stylish black design with RGB headers makes it a sleek choice for modern gaming rigs.
