| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
|
| Chipset | INTEL Z890 |
|
| Form Factor | ATX (243.84mmx304.8mm) |
|
| Memory | ||
| Number of Memory Slots | 4 | |
| Maximum Memory | 256GB | |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s |
|
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz* |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) 4x M.2 |
|
| Storage | ||
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Network | ||
| LAN | Realtek 8126 5Gbps LAN |
|
| Wireless | Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) |
|
| Ports & Connectors | ||

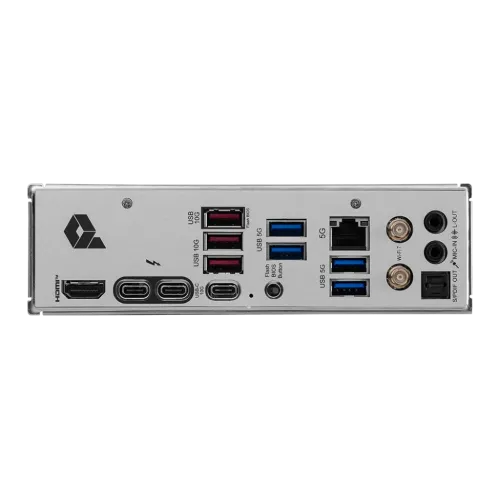

| HDMI | 1x HDMI 2.1 | |
| USB Ports | USB Type-C 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Display Port | 2x Type-C DisplayPort DisplayPort 1.4 |
|
| Audio | 1x Front Audio (JAUD) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Others | ||
| Wireless Communication module | The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Warranty | ||
| Warranty | 3 Years | |
The MSI PRO Z890-A WIFI DDR5 LGA 1851 ATX Motherboard is a professional-grade platform designed to provide stability, productivity, and current performance. It is powered by Intel's Z890 chipset and supports the latest LGA 1851 CPUs, providing ample computational capability for both business and home use. The motherboard supports DDR5 memory, which ensures faster data transfer, increased bandwidth, and greater multitasking efficiency. It has PCIe 5.0 slots, which allow it to work with the latest graphics cards, as well as high-speed NVMe storage for faster response times. The board is built with a strong VRM and excellent cooling technologies, ensuring steady power delivery and endurance under severe workloads. Built-in WiFi 7 and 2.5G LAN provide seamless connectivity, ensuring quick, dependable networking for office use, streaming, and remote work. The MSI PRO Z890-A WIFI also has many USB connections, M.2 slots, and simple BIOS tools for quick setup and customization. Its clean and professional form makes it ideal for workplaces while still providing the flexibility required for current PC configurations. This motherboard is ideal for professionals, content creators, and power users since it combines durability, performance, and future-ready technologies in a single efficient package. tHE MSI PRO Z890-A WIFI DDR5 LGA 1851 ATX Motherboard comes with 3 years warranty.
