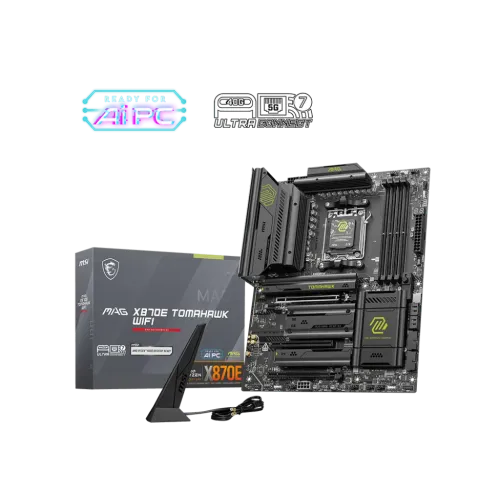

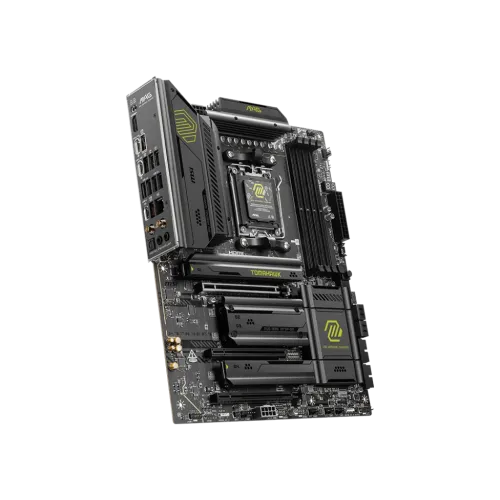

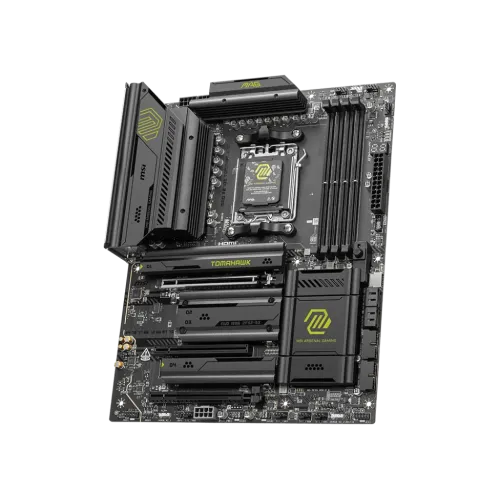

-500x500.png "MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard")
-500x500.png "MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard")
-500x500.png "MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard")
-500x500.png "MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard")
| Basic Information | ||
| Supported CPU | Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 | |
| Chipset | AMD X870E |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Memory | ||
| Number of Memory Slots | 4x DIMMs | |
| Channel Supported | ||
| Maximum Memory | 256GB | |
| Supported Memory | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 4x M.2 |
|
| Storage | ||
| Supported Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) |
|
| Network | ||
| LAN | 1x Realtek 8126 5G LAN | |
| Wireless | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) |
|
| BIOS | ||
| BIOS | ||
| Ports & Connectors | ||
| HDMI | 1x HDMI | |

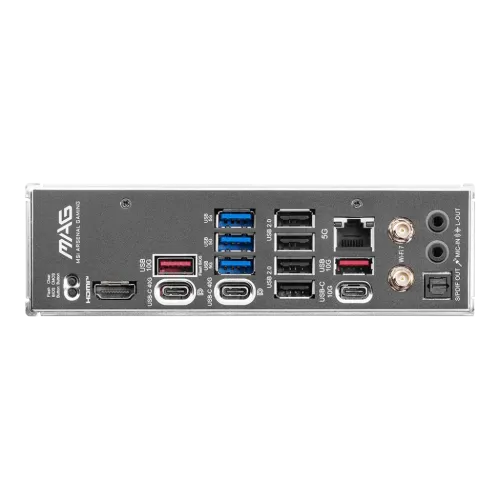

| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| DVI-D (s) | ||
| Display Port | 2x Type-C DisplayPort |
|
| Audio | ||
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors. *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors. |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Others | ||
| Bundled Software | ||
| Wireless Communication module | ||
| Special feature | 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Warranty | ||
| Warranty | 3 Years |
|
The MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard is a strong, cutting-edge platform made for productive and high-performance gaming. Built on the sophisticated AMD X870E chipset, it supports the latest AMD Ryzen 9000 and 8000 series CPUs on the AM5 socket, assuring top-tier computing capabilities. This board offers lightning-fast speeds and increased efficiency for demanding tasks thanks to its support for DDR5 memory. It has several M.2 slots with Shield Frozr for improved SSD performance and cooling, and PCIe 5.0 slots for state-of-the-art graphics cards and lightning-fast NVMe storage. Even during intense gaming or creative endeavors, the expanded heatsink design, superior VRM power delivery, and cutting-edge cooling technologies guarantee optimal system stability. With WiFi 7 and 2.5G LAN, networking is next-generation, providing low latency and seamless connectivity. Additionally, the motherboard offers a wide range of connectivity choices, such as USB 4.0 and USB 3.2 Gen 2x2 for incredibly quick data transfers. The MAG X870E TOMAHAWK WIFI is meant to last thanks to its sturdy construction, reinforced PCIe slots, and MSI's military-grade dependability. It is a great option for professionals and gamers creating a future-proof AM5 system because of its elegant ATX design, discreet RGB accents, and MSI software tools. The MSI MAG X870E TOMAHAWK WIFI AM5 ATX Motherboard comes with 3 Year warranty.
