| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) LGA 1851 |
|
| Chipset | INTEL Z890 |
|
| Form Factor | ATX 243.84mmx304.8mm | |
| Memory | ||
| Number of Memory Slots | 4x DDR5 UDIMM | |
| Maximum Memory | Capacity 256GB | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s | |
| Graphics | ||
| Graphics | Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed | |
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Network | ||
| LAN | Intel Killer E5000 5Gbps LAN | |
| Wireless | Intel Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| BIOS | ||
| BIOS | Flash BIOS Button | |
| Ports & Connectors | ||
| HDMI | 1x HDMI Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
|
| USB Ports | USB Type-C Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Display Port | 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 Supports up to 8K display |
|
| Audio | 1x Front Audio (JAUD) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Wireless Communication module | The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Warranty | ||
| Warranty | 3 years | |

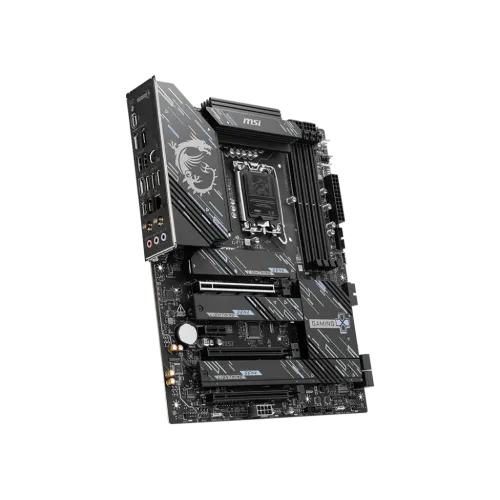

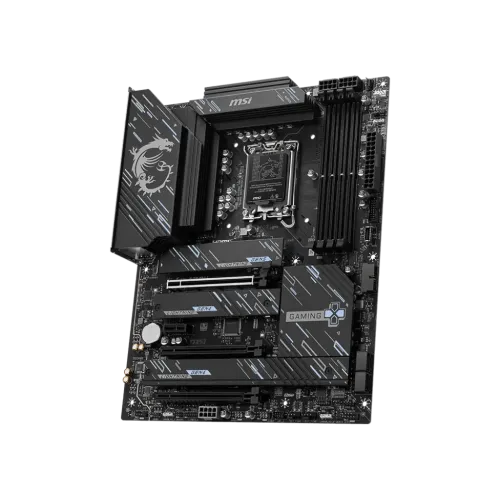

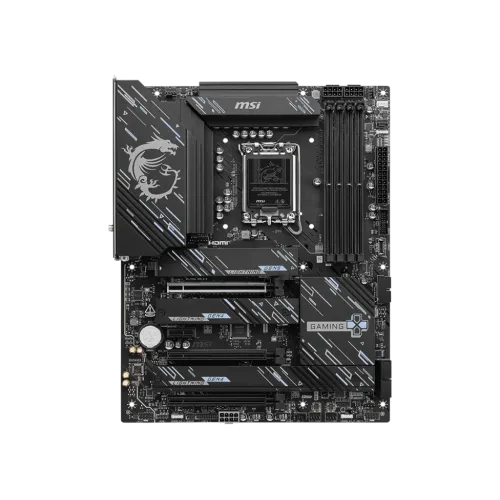

The MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard is intended for mainstream gamers and PC builders who require dependable performance and gaming-specific features. It uses the Intel Z890 chipset and supports the latest LGA 1851 processors, ensuring compatibility with next-generation Intel CPUs. DDR5 memory compatibility allows users to experience quicker speeds, greater multitasking, and smoother overall performance. The board has PCIe 5.0 slots, which enable for high-performance graphics cards and NVMe SSDs with lightning-fast bandwidth. Its sturdy power supply system and excellent thermal design provide stability even throughout extended game sessions. The built-in WiFi 7 and 2.5G LAN ensure low-latency online gameplay and flawless streaming. Its user-friendly BIOS and MSI software utilities make customization, performance tuning, and monitoring simple. The MSI Z890 GAMING PLUS WIFI boasts a sleek gaming-inspired design with subtle accents that finds a mix between appearance and performance. It is an excellent choice for gamers seeking a feature-rich, future-ready ATX motherboard without sacrificing durability or pricing. The MSI Z890 GAMING PLUS WIFI LGA 1851 ATX Motherboard comes with 3 years warranty.
