Basic Information | ||
Supported CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors | |
Chipset | AMD X870E | |
Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
|
Memory | ||
Supported Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules |
|
Graphics | ||
Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* |
|
Expansion Slots | ||
Expansion Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode* - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
Storage | ||
Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors |
|
Network | ||
LAN | - 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s - Realtek RTL8126 |
|
Wireless | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
|
Audio | ||
Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
|
BIOS | ||
BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
Ports & Connectors | ||
HDMI | 1 x HDMI Port | |
USB Ports | - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports |
|
RAID | - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|

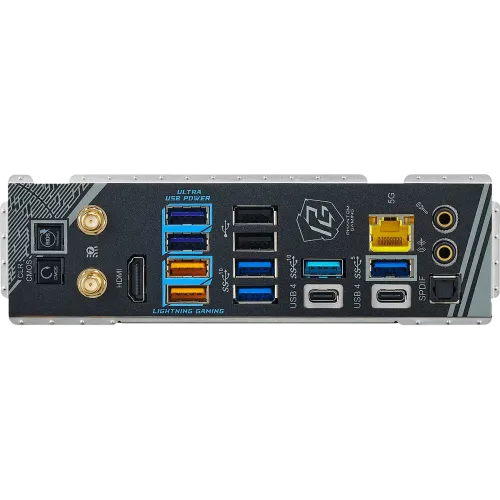

Internal I/O Ports | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) - 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
|
Others | ||
Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
Warranty | ||
Warranty | 03 years |

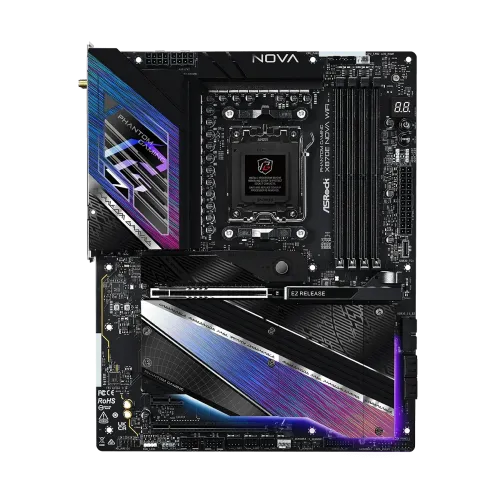

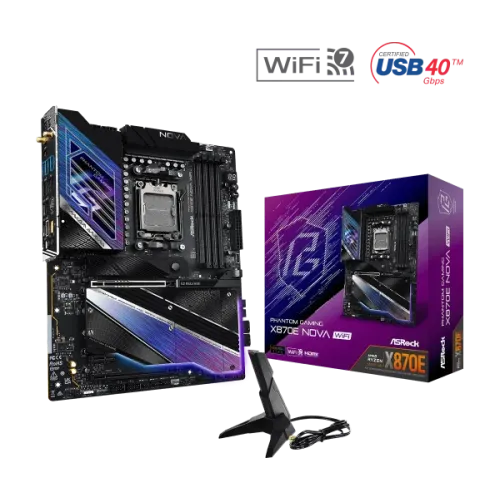

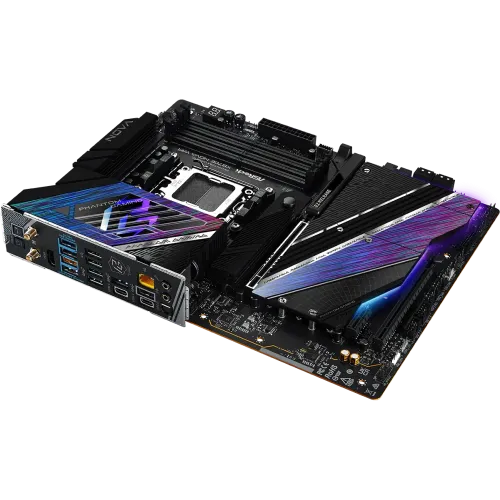

The ASRock Phantom Gaming X870E Nova WiFi is a premium ATX motherboard tailored for AMD’s AM5 platform, offering support for Ryzen 7000, 8000, and 9000 series CPUs via the X870E chipset. Boasting a robust 20+2+1-phase VRM design with 110 A Smart Power Stages and an 8‑layer, 2 oz copper PCB, it ensures rock‑solid power delivery and stable overclocking. The board supports DDR5 memory up to 8200 MT/s with EXPO/XMP profile compatibility and up to 256 GB total capacity. In terms of expansion, it includes a PCIe 5.0 x16 slot for next‑gen GPUs, plus a PCIe 3.0 x16 slot (wired at x2) and a PCIe 3.0 x1 slot. Storage-wise, it offers one “Blazing” M.2 Gen 5×4 slot, three Hyper M.2 slots supporting Gen4×4 NVMe drives, plus an additional M.2 slot supporting PCIe 3.0×2 or SATA, and four SATA 6 Gb/s ports—all with full RAID support. Convenient usability enhancements include tool‑less M.2 heatsinks and installation clips, an integrated I/O shield, BIOS Flashback, EZ‑Release GPU mounting, and Clear CMOS button.
Connectivity is next‑level, featuring dual USB4 Type‑C ports, one front USB 3.2 Gen2×2 Type‑C header, multiple Gen2 and Gen1 USB ports, Realtek 5 GbE LAN with Multi‑Link Operation (MLO), and built‑in Wi‑Fi 7 (802.11be) plus Bluetooth 5.4 using a MediaTek MT7925E module. For audio, it uses the Realtek ALC4082 7.1‑channel codec with isolated PCB layers and Nahimic software for enhanced clarity and immersive effect.
While it’s frequently praised for value and features, some users have reported early BIOS and hardware stability concerns, such as occasional Ethernet or Wi‑Fi dropouts and incompatibility with certain memory kits, though many of these have been resolved in updates. Overall, the X870E Nova WiFi stands out as a high‑end, future‑ready motherboard delivering a compelling blend of performance, connectivity, and user‑friendly design for enthusiasts and high‑speed gamers.
