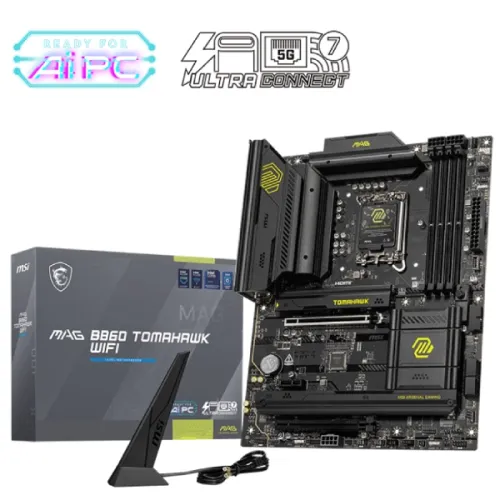

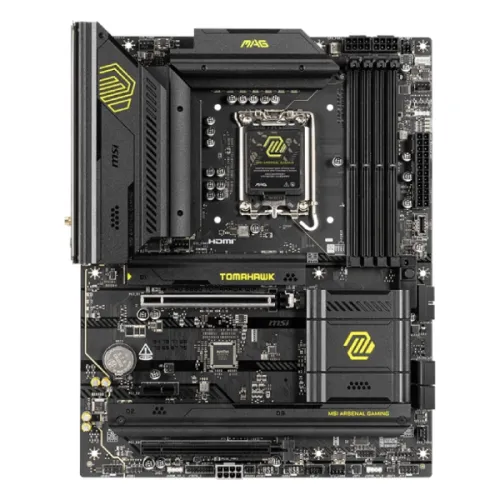

-500x500.png "MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 ATX Motherboard")
-500x500.png "MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 ATX Motherboard")
-500x500.png "MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 ATX Motherboard")
| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2), LGA 1851 | |
| Chipset | INTEL B860 | |
| Form Factor | ATX 243.84mmx304.8mm | |
| Memory | ||
| Number of Memory Slots | 4x UDIMM | |
| Channel Supported | DDR5 | |
| Maximum Memory | 256GB | |
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Graphics | ||
| Graphics | Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
|
| Network | ||
| LAN | Intel Killer E5000 5Gbps LAN | |
| Wireless | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| Ports & Connectors | ||
| HDMI | 1x HDMI |
|
| Display Port | 1x DisplayPort | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Others | ||
| Wireless Communication module | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Special feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 Years | |
The MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 ATX Motherboard is a powerful and long-lasting platform intended for gamers, designers, and professionals who want performance and dependability. Built on the Intel B860 chipset, it supports the most recent 14th and 15th Gen Intel Core processors with the LGA 1851 socket, providing ample processing power for current applications and gaming workloads. With support for DDR5 memory, users may enjoy quicker data transfer speeds, increased economy, and greater system responsiveness, making it suitable for multitasking and demanding software. The ATX form factor allows for expansion via numerous PCIe 5.0 and PCIe 4.0 slots, making it compatible with next-generation graphics cards and high-speed NVMe SSDs. Its strong VRM architecture assures stable power delivery, while the improved cooling system with enlarged heatsinks maintains consistent thermal performance. Connectivity is impressive, with high-speed USB 3.2 Gen 2x2 ports, several M.2 slots with heatsinks, 2.5G LAN, and integrated WiFi 7, ensuring lightning-fast networking for gaming and productivity. The MSI MAG B860 TOMAHAWK WIFI DDR5 ATX Motherboard, with its robust build quality, effective thermal solutions, and complete feature set, serves as a future-ready basis for building a high-performance PC. The MSI MAG B860 TOMAHAWK WIFI DDR5 LGA 1851 ATX Motherboard comes with 3 Year warranty.
