Basic Information | ||
Supported CPU | Intel Core Ultra Processors (Series 2), LGA 1851 | |
Chipset | INTEL B860 |
|
Form Factor | ATX (243.84mmx304.8mm) | |
Memory | ||
Number of Memory Slots | 4 | |
Maximum Memory | Maximum Memory Capacity 256GB |
|
Supported Memory | 4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
|
Graphics | ||
Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
Expansion Slots | ||
Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) 3x M.2 |
|
Storage | ||
Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
|
Network | ||
LAN | Realtek 8126 5Gbps LAN |
|
Audio | ||
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|

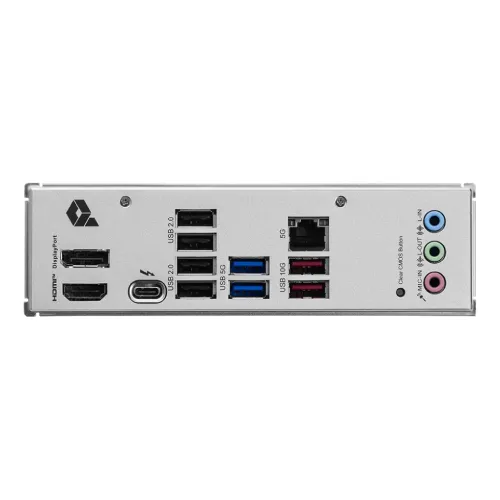

Ports & Connectors | ||
HDMI | 1x HDMI | |
USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
Display Port | 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 |
|
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
Warranty | ||
Warranty | 3 Years |

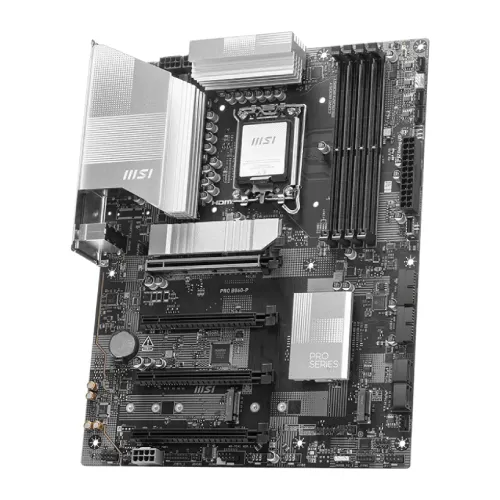

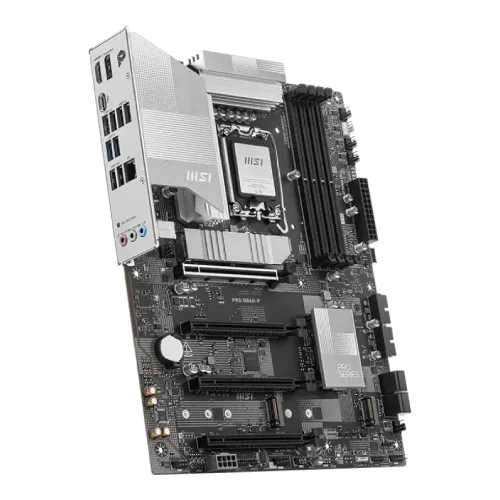

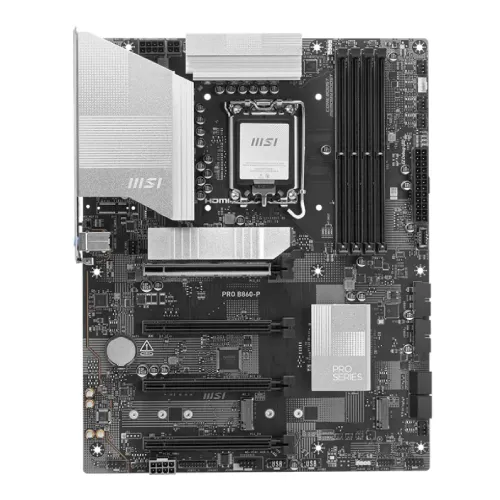

The MSI PRO B860-P LGA 1851 ATX Motherboard is a professional-grade platform that supports the latest Intel 14th and 13th Generation processors using the LGA 1851 socket. It is based on the Intel B860 chipset and provides reliability, performance, and expandability for both business and personal computing applications. This motherboard supports DDR5 memory, which provides better bandwidth and faster performance for multitasking and demanding applications. It has numerous PCIe slots, including PCIe 5.0 for next-generation graphics cards, as well as M.2 slots for ultra-fast NVMe SSD storage, making it a forward-thinking option for high-speed data performance. The strong power supply system, which includes enlarged heatsinks, ensures consistent efficiency and thermal stability even under heavy loads. The MSI PRO B860-P offers a variety of connectivity choices, including USB Type-C, several high-speed USB ports, and 2.5G LAN, ensuring seamless wired networking. MSI's proprietary features, such as Core Boost, Memory Boost, and Audio Boost, improve CPU performance, RAM stability, and provide a rich audio experience. The ATX form factor offers plenty of expansion capability, making it ideal for workstations, productivity projects, and popular gaming setups. The MSI PRO B860-P LGA 1851 ATX Motherboard, with its dependability, performance, and future-ready technologies, is a perfect foundation for a versatile and powerful PC design. The MSI PRO B860-P LGA 1851 ATX Motherboard comes with 3 years warranty.
