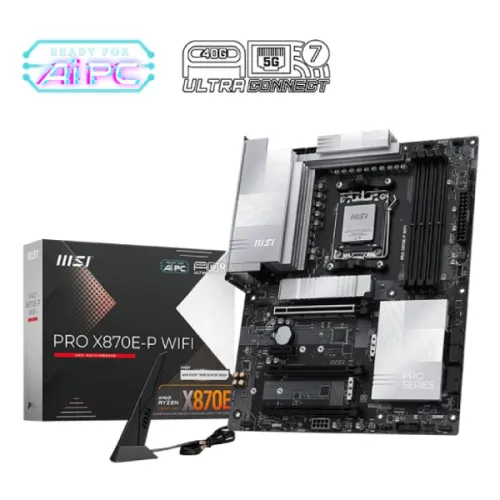

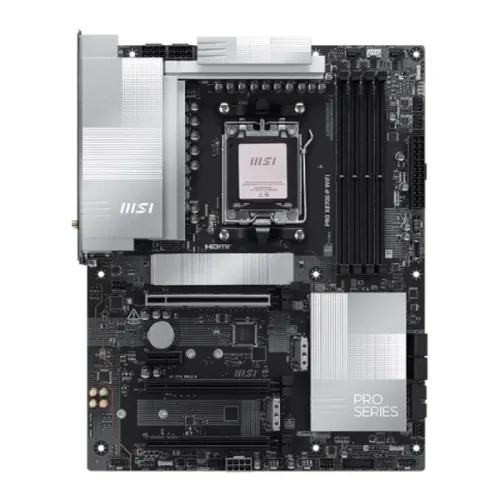

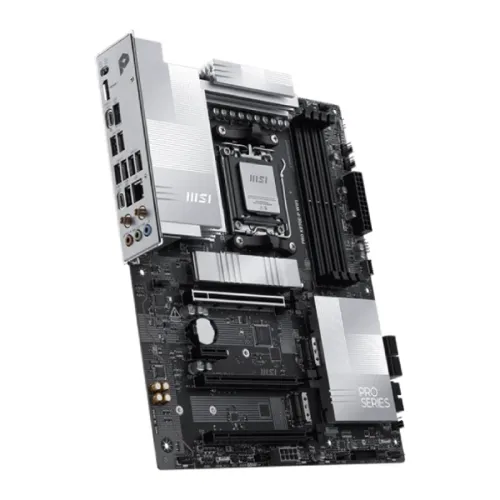

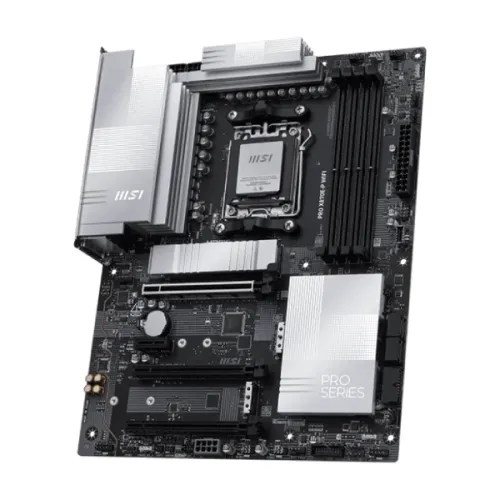

-500x500.png "MSI PRO X870E-P WIFI AM5 ATX Motherboard")
-500x500.png "MSI PRO X870E-P WIFI AM5 ATX Motherboard")
-500x500.png "MSI PRO X870E-P WIFI AM5 ATX Motherboard")
-500x500.png "MSI PRO X870E-P WIFI AM5 ATX Motherboard")
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870E |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Memory | ||
| Number of Memory Slots | 4x UDIMM |
|
| Channel Supported | ||
| Maximum Memory | 256GB | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors) 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices |
|
| Storage | ||
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Network | ||
| LAN | Realtek 8126VB 5G LAN |
|
| Wireless | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| BIOS | ||
| BIOS | Flash BIOS Button |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz |
|

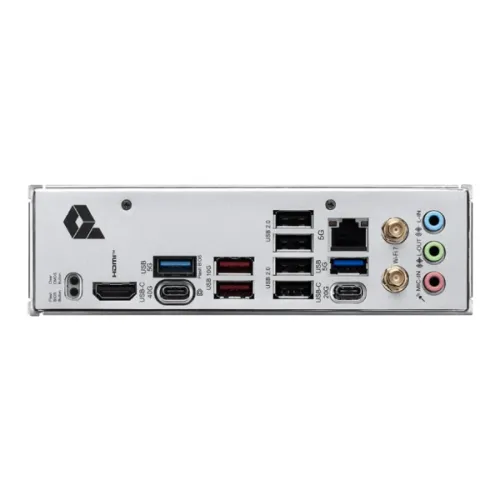

| USB Ports | USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| DVI-D (s) | ||
| Display Port | 1x Type-C DisplayPort 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C |
|
| Audio | ||
| RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors. |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Others | ||
| Bundled Software | ||
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
|
| Special feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 Years | |
Professionals and heavy users that want a reliable and powerful platform for work and multitasking are the target audience for the MSI PRO X870E-P WIFI AM5 ATX Motherboard. It guarantees outstanding performance and future-proof support because it is powered by the AMD X870E chipset and designed for the newest AMD Ryzen 9000 and 8000 series CPUs on the AM5 socket. In addition to PCIe 5.0 slots for next-generation graphics cards and NVMe storage, the board offers DDR5 memory for faster speeds and increased efficiency. For dependable SSD performance, it also has several M.2 slots with heatsinks. It offers robust and quick connectivity for work and play with WiFi 7 and 2.5G LAN. It is perfect for builds that prioritize productivity due to its professional ATX layout, strong VRM design, and improved cooling options. With USB 4.0, USB 3.2 Gen 2x2, and front-panel USB-C, the MSI PRO X870E-P WIFI provides flexible connection that balances efficiency, performance, and durability for today's computing demands. The MSI PRO X870E-P WIFI AM5 ATX Motherboard comes with 3 Year warranty.
