| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2), LGA 1851 | |
| Chipset | INTEL Z890 | |
| Form Factor | ATX (243.84mmx304.8mm) | |
| Memory | ||
| Number of Memory Slots | 4x DDR5 UDIMM, Maximum Memory | |
| Maximum Memory | 256GB | |
| Supported Memory | Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
|
| Graphics | ||
| Graphics | 1x HDMI Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices *Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Storage | ||
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Network | ||
| LAN | 1x Intel® Killer™ E5000B 5G LAN | |
| Wireless | Intel® Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| BIOS | ||
| BIOS | PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 | |
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 | |

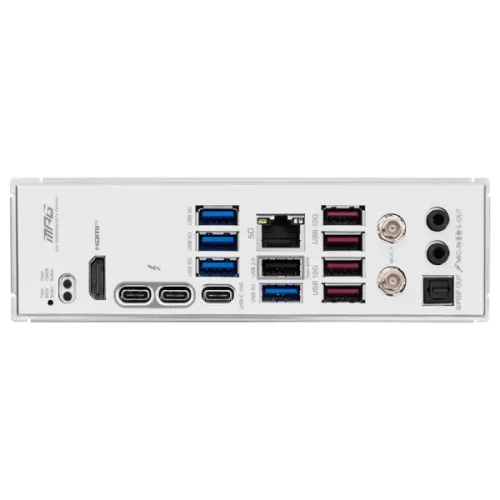

| USB Ports | 1x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
|
| Display Port | 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| RAID | •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Others | ||
| Special feature | LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Warranty | ||
| Warranty | 3 Years | |

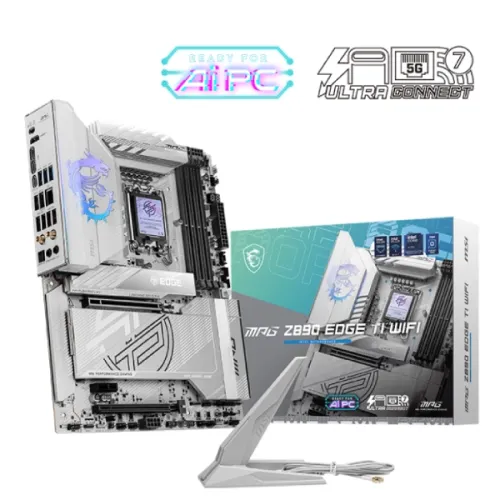

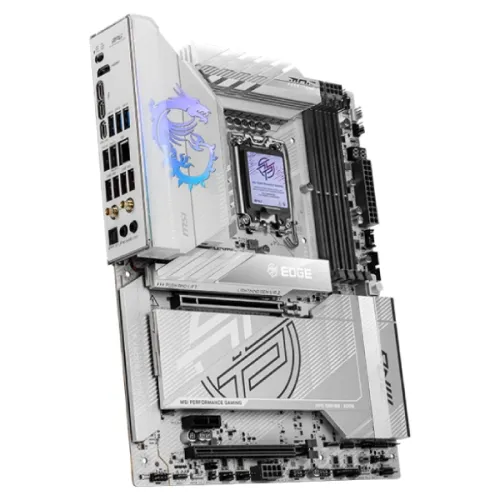

The MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard is an excellent choice for gamers, creators, and PC enthusiasts looking for high-performance hardware with modern features. Built on the Intel Z890 chipset and compatible with the newest LGA 1851 processors, it provides sophisticated performance tweaking and stability for demanding activities. It supports high-speed DDR5 memory, which allows for faster data transfer, smoother multitasking, and efficient overclocking. The motherboard includes PCIe 5.0 slots, which provide next-generation bandwidth for graphics cards and NVMe storage systems. Its robust VRM power delivery design and sophisticated cooling solutions provide steady operation even under heavy workloads. The MPG Z890 EDGE TI WIFI also supports WiFi 7 and 2.5G LAN for lightning-fast networking, making it ideal for online gaming and high-speed data transfers. Its sleek titanium-inspired design exudes luxury, while the user-friendly BIOS and software utilities provide simple customization and system optimization. The MSI MPG Z890 EDGE TI WIFI is a fantastic ATX motherboard for building a high-performance, future-ready PC, with its design combining power, dependability, and flair. The MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard comes with 3 years warranty.
