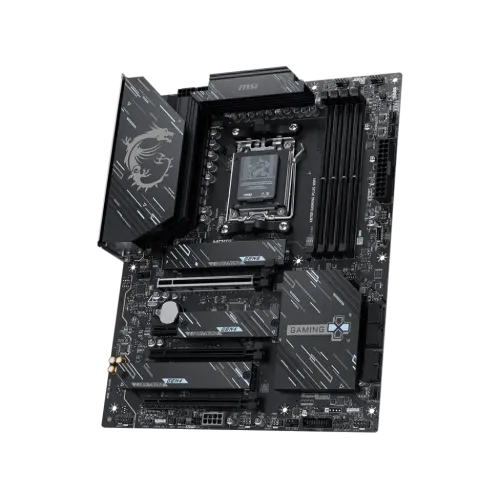

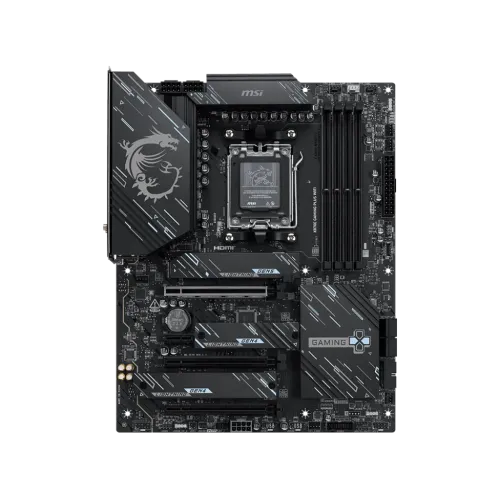

-500x500.png "MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard")
-500x500.png "MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard")
-500x500.png "MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard")
-500x500.png "MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard")
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870E | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Memory | ||
| Number of Memory Slots | 4x DIMMs | |
| Channel Supported | DDR5 | |
| Maximum Memory | 256GB | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. Overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz |
|
| Expansion Slots | ||
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| Storage | ||
| Supported Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
|
| Network | ||
| LAN | Realtek 8126VB 5G LAN | |
| Wireless | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Audio | ||
| Audio | 1x Front Audio (JAUD) | |
| Ports & Connectors | ||
| HDMI | 1x HDMI | |

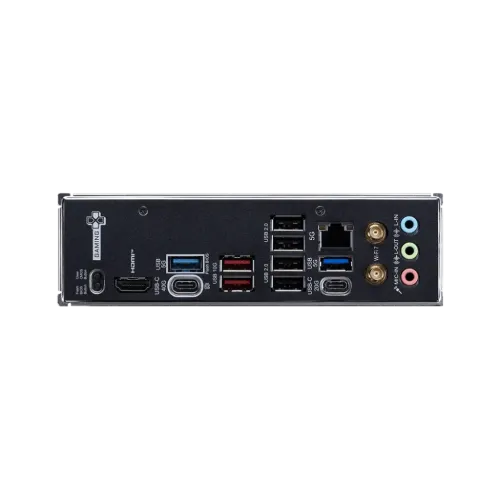

| USB Ports | 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Display Port | 1x Type-C DisplayPort 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 |
|
| Audio | 1x Front Audio (JAUD) | |
| RAID | • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Others | ||
| Special feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty | ||
| Warranty | 3 Years | |
The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is made to provide AMD's newest platforms with robust performance, stability, and gaming features. Its AMD Ryzen 9000 and 8000 series processors on the AM5 socket are supported by the AMD X870E chipset, which guarantees outstanding compatibility and performance that is ready for the future. It offers the speed and expandability required for contemporary gaming and workloads thanks to support for DDR5 memory, PCIe 5.0 graphics and storage ports, and several M.2 connectors with heatsinks. WiFi 7 and 2.5G LAN power networking, providing incredibly fast and dependable connectivity. This motherboard is the perfect alternative for gamers and producers who desire great performance and long-term dependability because of its strong power delivery system, improved cooling design, and numerous high-speed USB options, including USB 4.0 and USB 3.2 Gen 2x2. .MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
