| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Z690 | |
| Form Factor | ATX 30.5cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Support max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Expansion Slots | ||
| Expansion Slots | PCI Intel 12th Gen Processors* 1 x PCIe 5.0 x16 slot - Intel 12th support PCIe 5.0 x16 mode Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode) 1 x PCIe 3.0 x1 slot |
|
| Storage | ||
| Supported Storage | Intel12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Intel 2.5Gb Ethernet | |
| Wireless | Bluetooth v5.2 | |
| Audio | ||
| Audio | 1 x Front Panel Audio header (AAFP) | |
| BIOS | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Ports & Connectors | ||
| USB Ports | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| Others | ||
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|
| Wireless Communication module | 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* |
|
| Warranty | ||
| Warranty | 3 years | |

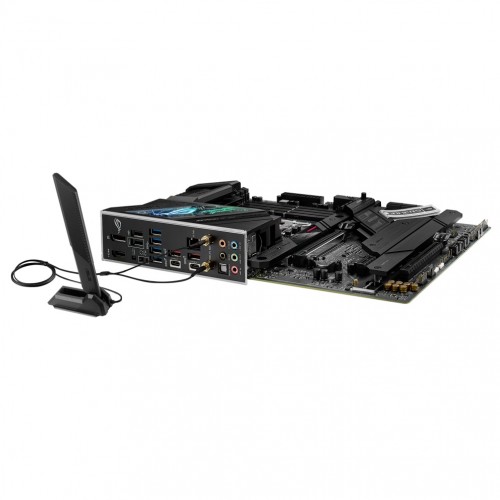

The motherboard for the Asus ROG STRIX Z690-F GAMING WIFI has an Intel LGA 1700 socket. Prepared for Celeron, Pentium Gold, and Intel Core 12th Generation processors. The motherboards of the Asus Prime series are skillfully designed to maximize the performance of 12th Generation Intel processors. It includes an improved power solution. Support for multi-core CPUs is provided by 16+1 power stages with 8+8 ProCool II power connectors, premium alloy chokes, and robust capacitors. It has four onboard M.2 heatsinks, an integrated I/O cover, VRM heatsinks with a high conductivity thermal pad, an L-shaped heatpipe, and an M.2 backplate for the M.2 1 slot. It has Intel 2.5 Gb Ethernet and WiFi 6E (802.11ax) onboard, along with ASUS LANGuard.
