| Basic Information | ||
| Supported CPU | Ryzen series processors are compatible with the AM4 motherboard slots | |
| Chipset | AMD B450 | |
| Form Factor | Micro-ATX (≈ 203 × 235 mm) | |
| Memory | ||
| Number of Memory Slots | 2 × DDR4 DIMM slots, dual-channel support | |
| Maximum Memory | ~32–64 GB depending on variant. | |
| Supported Memory | Up to DDR4-3200 (OC) listed for this model | |
| Graphics | ||
| Graphics | HDMI + VGA display interfaces on rear I/O | |
| Expansion Slots | ||
| Expansion Slots | - 1 × PCIe 3.0 x16 (for GPU) – implied by reviews of the series - 1 × PCIe 3.0 x1 slot (as per distributor spec) |
|
| Storage | ||
| Supported Storage | - 4 × SATA III (6 Gb/s) ports - 1 × M.2 slot (supports PCIe 3.0 x4 / SATA) for SSDs |
|
| Network | ||
| LAN | Realtek RTL8111H Gigabit Ethernet (1 Gb/s) | |
| Audio | ||
| Audio | On-board audio codec (e.g., Realtek ALC662 in similar board variant) – 6-channel support mentioned in related variant. | |
| BIOS | ||
| BIOS | 128M UEFI, supports multiple languages | |
| Ports & Connectors | ||
| HDMI | -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution | |
| USB Ports | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 Type-A interfaces 2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces |
|
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels | |

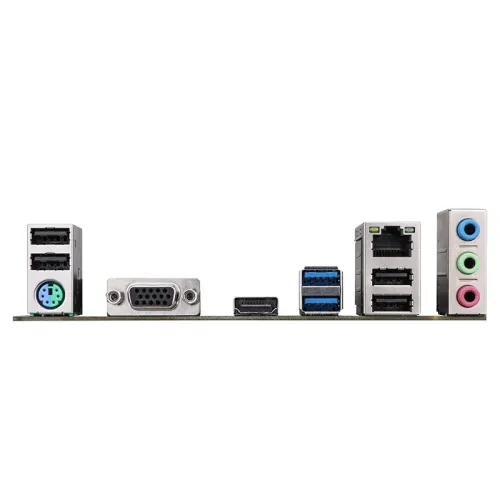

| Internal I/O Ports | Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/output/microphone) On board : -1×CPU fan pin -1×System fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×Debug light pin |
|
| Warranty | ||
| Warranty | 3 years | |

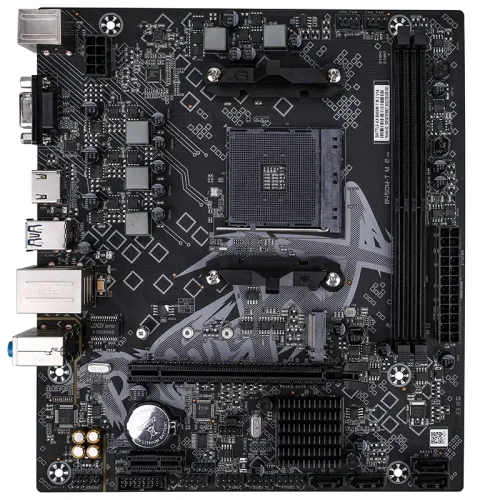

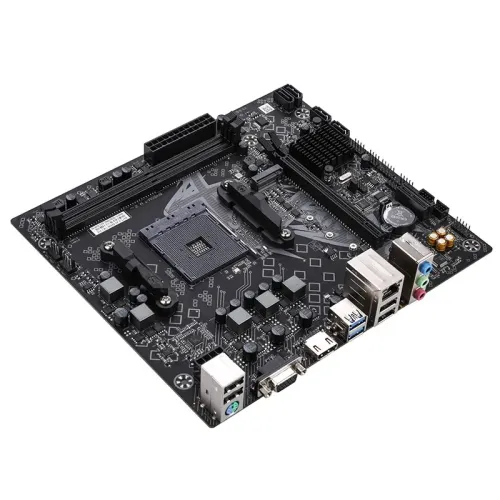

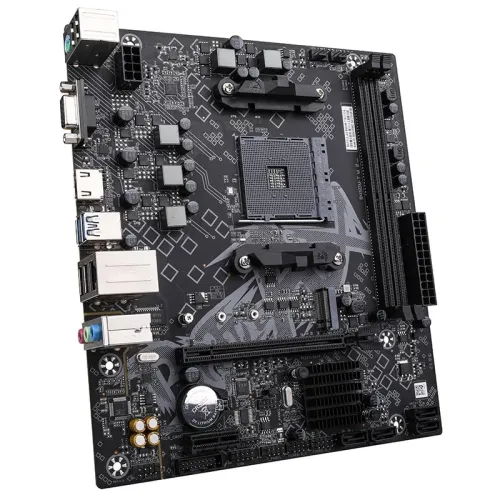

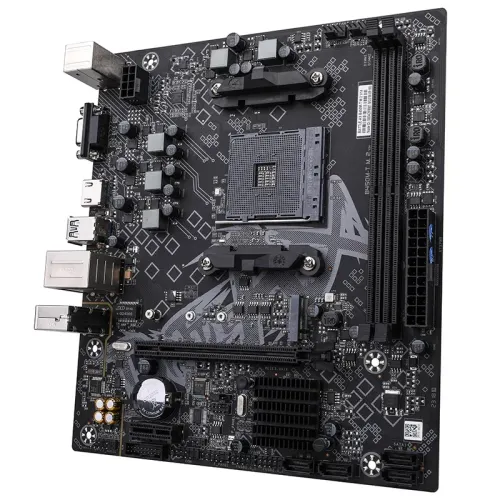

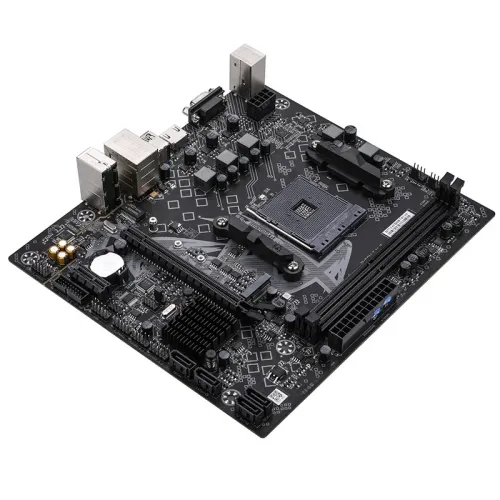

The Colorful BATTLE-AX B450M-T V14 is a reliable and cost-effective AM4 motherboard designed for AMD Ryzen processors. It supports DDR4 memory, delivering stable performance for everyday computing and gaming. With its Micro-ATX form factor, it easily fits into compact cases while still providing essential features like high-speed data transfer, PCIe expansion slots, SATA ports, and durable power delivery components. Built with quality materials and an efficient cooling design, this motherboard ensures consistent operation and long-term durability, making it an excellent choice for budget builders seeking solid performance and stability.
