| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000, 8000 and 7000 Series Processors (Socket AM5) | |
| Chipset | AMD B850 | |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Sockets | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) | |
| Supported Memory | DDR5 8200(O.C) / 8000(O.C) up to 4400 MT/s; supports AMD EXPO & Intel® XMP profiles | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support | |
| Max Shared Memory | Shared system memory dynamically allocated depending on CPU configurations | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe 5.0 x16 slot (integrated in CPU)* 1 x PCIe 3.0 x16 slot running at x4 (integrated in Chipset) | |
| Storage | ||
| Supported Storage | 2 x M.2 Socket 3 connectors (1x PCIe 5.0 x4/x2, 1x PCIe 4.0 x4/x2) 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Wi-Fi 6E (802.11ax) supporting 2.4/5/6 GHz frequency bands | |
| Audio | ||
| Audio | Realtek Audio CODEC, High Definition Audio (2/4/5.1/7.1-channel), S/PDIF Out | |
| BIOS | ||
| BIOS | 1 x 256 Mbit flash, licensed AMI UEFI BIOS | |
| Ports & Connectors | ||
| HDMI | 1 x Front HDMI port (supports 1920x1080 @ 30 Hz / HDMI 1.4 version) | |
| USB Ports | Rear Panel: 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 Internal Headers: 1 x USB Type-C (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 | |
| Display Port | 1 x DisplayPort (supports 3840x2160 @ 144 Hz / DP 1.4 version & HDR) | |
| RAID | RAID 0, RAID 1, RAID 5*, and RAID 10 for NVMe SSD storage RAID 0, RAID 1, and RAID 10 for SATA storage | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For GC-TPM2.0 SPI modules) | |
| Internal I/O Ports | 1 x 24-pin main power, 1 x 8-pin 12V power, 1 x CPU fan header, 1 x water cooling pump header, 3 x system fan headers, 3 x addressable RGB Gen2 headers, 1 x RGB strip header, 2 x M.2, 4 x SATA, 1 x front audio, 1 x Q-Flash Plus button | |
| Others | ||
| Bundled Software | GIGABYTE Control Center (GCC), Norton Internet Security (OEM version) | |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE + Bluetooth 5.3 | |
| Special feature | X3D Turbo Mode, AORUS AI Snatch, EZ-Latch Click, Digital Twin 12+2+1 Phase VRM Design, Q-Flash Plus | |
| Warranty | ||
| Warranty | 3 Years | |

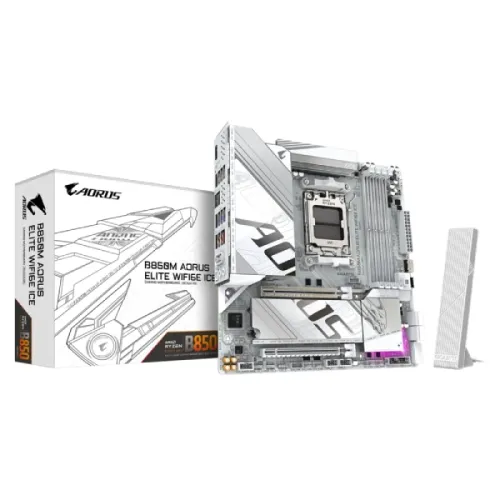

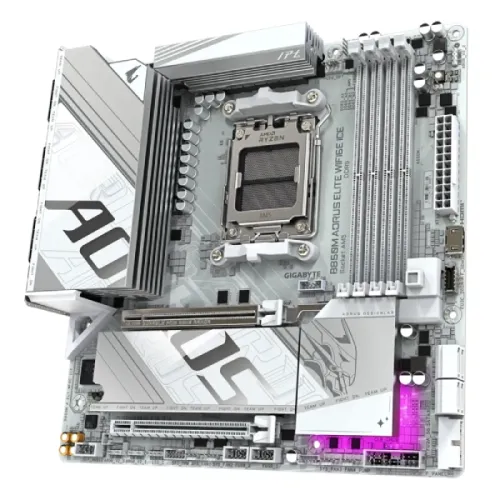

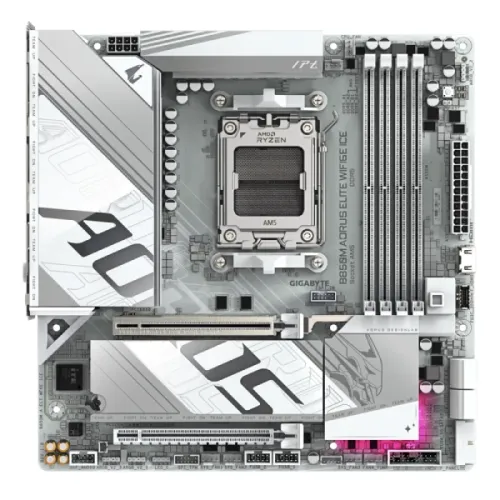

The GIGABYTE B850M AORUS ELITE WIFI6E ICE is a premium white Micro-ATX motherboard built for AMD AM5 socket Ryzen 7000/8000/9000 series processors, featuring the AMD B850 chipset. It supports up to 256GB DDR5 memory across 4 DIMM slots with AMD EXPO technology and speeds reaching 8200 MT/s OC. The board includes one PCIe 5.0 x16 slot and one PCIe 3.0 x16 slot for graphics, plus two M.2 slots: one PCIe 5.0 x4 and one PCIe 4.0 x4 for ultra-fast NVMe storage. Connectivity features Wi-Fi 6E (802.11ax), Bluetooth 5.3, and 2.5Gbps LAN. Rear USB includes 1 USB 3.2 Gen2 Type-C, 2 USB 3.2 Gen2 Type-A, 5 USB 3.2 Gen1, and 4 USB 2.0 ports. It offers 4 SATA 6G ports, 6 PWM fan headers, 1 RGB and 3 ARGB headers, HDMI and DisplayPort outputs, and an 8-pin EPS plus 24-pin ATX power connector. GIGABYTE provides a 5-year warranty on this motherboard.
