| Basic Information | ||
| Supported CPU | Support for 9th and 8th Generation Intel® Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® processors in the LGA1151 package. | |
| Chipset | Intel® H310 Express Chipset | |
| Form Factor | Micro ATX Form Factor | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM sockets | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | Up to 32 GB | |
| Supported Memory | DDR4 2666 / 2400 / 2133 MHz; supports ECC Un-buffered DIMM (in non-ECC mode), non-ECC Un-buffered DIMM, and Extreme Memory Profile (XMP). (Note: 2666 MHz / XMP requires an 8th or 9th Gen Core i5/i7/i9 processor) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor - Intel® HD Graphics support: - 1 x HDMI port (Max resolution: 4096x2160 @ 30 Hz) - 1 x D-Sub (VGA) port (Max resolution: 1920x1200 @ 60 Hz) | |
| Max Shared Memory | 1 GB | |
| Expansion Slots | ||
| Expansion Slots | - 1 x PCI Express x16 slot (running at x16, PCIe 3.0 standard) - 2 x PCI Express x1 slots (PCIe 2.0 standard) | |
| Storage | ||
| Supported Storage | - 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) - 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | GbE LAN chip (10/100/1000 Mbit) / GIGABYTE Exclusive 8118 Gaming LAN | |
| Audio | ||
| Audio | Audio Codec, High Definition Audio, 2/4/5.1/7.1-channel (7.1 requires HD front panel audio module enablement) | |
| BIOS | ||
| BIOS | 1 x 128 Mbit flash; licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port (Supports HDMI 1.4 version and HDCP 2.2) | |
| USB Ports | Chipset-driven: - 4 x USB 3.1 Gen 1 ports (2 on back panel, 2 via internal header) - 6 x USB 2.0/1.1 ports (4 on back panel, 2 via internal header) | |
| TPM (Trusted Platform Module ) | 1 x TPM header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power, 1 x 4-pin ATX 12V power, 4 x SATA 6Gb/s, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.1 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x TPM header, 1 x Clear CMOS jumper | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility, GIGABYTE APP Center (including @BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, etc.) | |
| Special feature | Smart Fan 5 (with Fan Stop and hybrid fan headers), Anti-Sulfur Resistors Design, Ultra Durable Protection, High-End Audio Capacitors with Audio Noise Guard, Glass Fabric PCB | |
| Warranty | ||
| Warranty | 3 Years | |

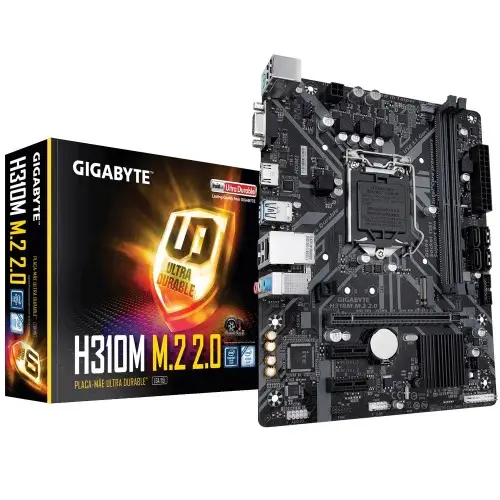

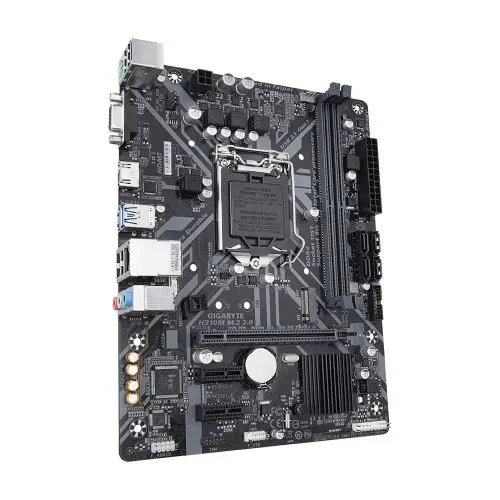

The Gigabyte H310M M.2 9th Gen Micro ATX Motherboard supports 9th and 8th Gen Intel Core processors in the LGA1151 package, featuring the Intel H310 Express Chipset. It delivers dual-channel non-ECC unbuffered DDR4 memory support with 2 DIMM slots, accommodating up to 32GB at 2666/2400/2133 MHz, including XMP support. Storage includes one ultra-fast M.2 Connector (Socket 3, M Key) for 2260/2280 SATA and PCIe Gen2 x2 SSDs, plus four SATA 6Gb/S connectors. Graphics output offers HDMI 1.4 (4096×2160@30 Hz) and D-Sub (1920×1200@60 Hz) for multiple displays. Expansion features a PCI Express x16 slot (PCIe 3.0) and two PCI Express x1 slots (PCIe 2.0). Audio is powered by Realtek ALC887 for 7.1-channel HD audio with high-quality capacitors. LAN uses Realtek GbE (10/100/1000 Mbit) with Gigabyte’s 8118 Gaming LAN bandwidth management. USB provides four USB 3.1 Gen 1 ports and six USB 2.0/1.1 ports. Smart Fan 5 includes multiple temperature sensors and hybrid fan headers with FAN STOP. The board measures 22.6cm × 17.4cm in Micro ATX form factor and carries a 3-year manufacturer warranty.
