| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel® Core Ultra Processors | |
| Chipset | Intel B860 Express Chipset | |
| Form Factor | Micro ATX Form Factor (24.4cm x 22.5cm) | |
| Memory | ||
| Number of Memory Slots | 2 x DDR5 DIMM sockets | |
| Channel Supported | Dual channel memory architecture | |
| Maximum Memory | Up to 128 GB (64 GB single DIMM capacity) | |
| Supported Memory | DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 5600 MT/s | |
| Graphics | ||
| Graphics | Integrated Intel HD Graphics support | |
| Max Shared Memory | Dependent on CPU support | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe 5.0 x16 slot (x16); 1 x PCIe 4.0 x16 slot (x4) | |
| Storage | ||
| Supported Storage | 2 x M.2 connectors (PCIe 4.0); 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio | ||
| Audio | Audio CODEC, High Definition Audio (7.1-channel support) | |
| BIOS | ||
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port (supports 4096x2160@60 Hz, HDMI 2.1) | |
| USB Ports | Back: 3 x USB 3.2 Gen 1, 3 x USB 2.0; Internal: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers | |
| Display Port | 1 x DisplayPort (supports 3840x2160@144 Hz, DisplayPort 2.1) | |
| RAID | RAID 0, 1, 5, 10 support for SATA devices | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (GC-TPM2.0 SPI V2) | |
| Internal I/O Ports | 24-pin ATX, 8-pin ATX 12V, 2 x M.2, 4 x SATA, CPU/System fan headers, 3 x ARGB Gen2 headers, Front panel/audio headers | |
| Others | ||
| Bundled Software | GIGABYTE Control Center (GCC) | |
| Special feature | Q-Flash Plus, EZ-Latch (PCIe release), AI Perfdrive, D5 Bionic Corsa | |
| Warranty | ||
| Warranty | 3 Years | |

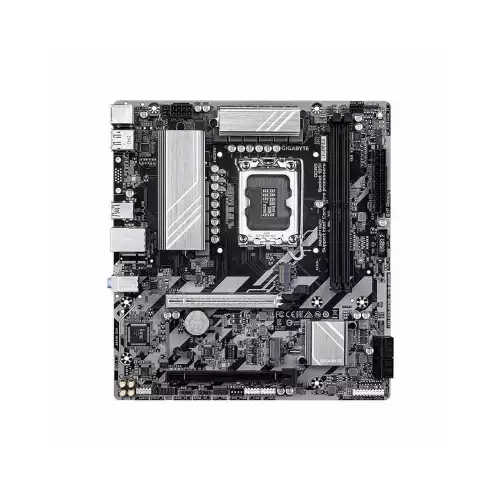

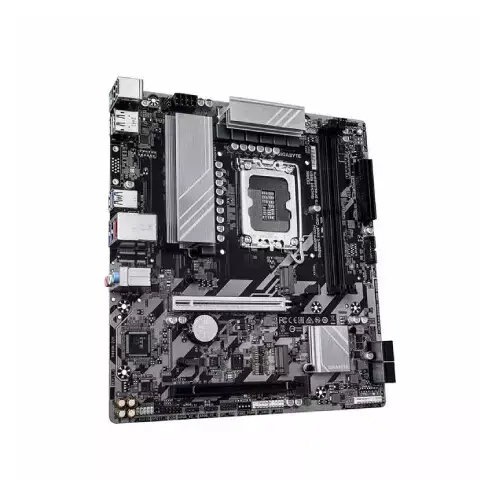

The Gigabyte B860M D2H features an LGA1851 socket supporting Intel Core Ultra Series 2 processors with Intel B860 Express chipset. It includes 2 DDR5 DIMM slots supporting dual-channel memory up to 128GB (64GB single DIMM) at speeds up to 9066 MT/s (OC) with XMP 3.0, ECC (non-ECC mode), and non-ECC unbuffered support. The board has 1 PCIe 5.0 x16 slot with PCIe EZ-Latch quick-release and 1 PCIe 4.0 x4 slot. Storage includes 2 PCIe 4.0 x4 M.2 slots (2280) and 4 SATA 6Gb/s ports with RAID 0/1/5/10. Graphics outputs are 1 HDMI 2.1 (4K@60Hz, HDCP 2.3) and 1 DisplayPort 2.1 (4K@144Hz) dependent on CPU iGPU. Networking uses Realtek 2.5GbE LAN (RJ-45). Audio is Realtek 8-Channel HD Audio with S/PDIF Out and 3 source connectors supporting 2/4/5.1/7.1 channels. USB includes rear 1 USB-C 3.2 Gen 2, 1 USB-A 3.2 Gen 2, 4 USB-A 3.2 Gen 1, 4 USB 2.0; internal 2 USB 3.2 Gen 1 headers and 4 USB 2.0 headers. Power is 6+1+2-phase hybrid VRM with 24-pin ATX and 8-pin CPU connectors. Form factor is Micro-ATX 24.4cm × 22.5cm. It includes RGB FUSION with 3 addressable LED headers, Smart Fan 6 hybrid headers, Q-Flash Plus, and EZ Debug LEDs. Operating systems support Windows 11/10 64-bit. Warranty is 3 years.
