| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors. (L3 cache varies with CPU) | |
| Chipset | Intel H610 Express Chipset | |
| Form Factor | Micro ATX (mATX); 23.0cm x 21.5cm | |
| Memory | ||
| Number of Memory Slots | 2 x DDR5 DIMM sockets | |
| Channel Supported | Dual Channel memory architecture | |
| Maximum Memory | Up to 64 GB (32 GB maximum single DIMM capacity) | |
| Supported Memory | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s modules. Supports ECC Un-buffered DIMM, non-ECC Un-buffered DIMM, and Extreme Memory Profile (XMP). | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub (VGA) port (Max 1920x1200@60 Hz) and 1 x HDMI port (Max 4096x2160@60 Hz, HDMI 2.1 version & HDCP 2.3 support) | |
| Max Shared Memory | Dependent entirely on the installed Intel CPU capabilities | |
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Storage | ||
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) and 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Audio | ||
| Audio | Audio CODEC High Definition Audio; supports 2/4/5.1/7.1-channel configurations | |
| BIOS | ||
| BIOS | 1 x 128 Mbit flash; licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1 port (Rear I/O panel) | |
| USB Ports | Chipset: 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 via internal header) + 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through internal USB headers | |
| RAID | Not supported natively by the H610 Chipset | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 modules only) | |
| Internal I/O Ports | 1 x 24-pin ATX power, 1 x 8-pin ATX 12V power, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 1 x Clear CMOS jumper | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software | |
| Special feature | Support for GIGABYTE APP Center, Q-Flash, Xpress Install, 6+1+1 Hybrid Digital VRM Design, Smart Fan 6 configuration, Anti-Sulfur Resistors | |
| Warranty | ||
| Warranty | 3 Years Official Brand Warranty | |

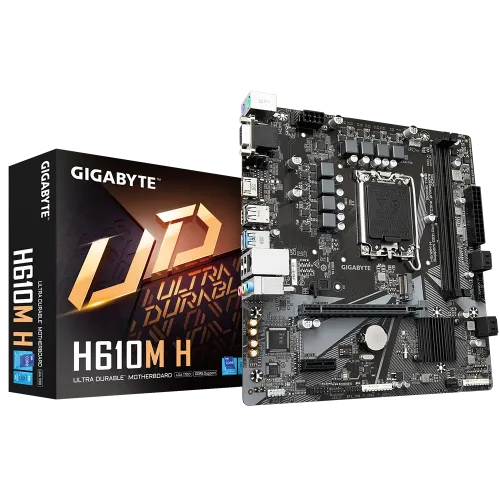

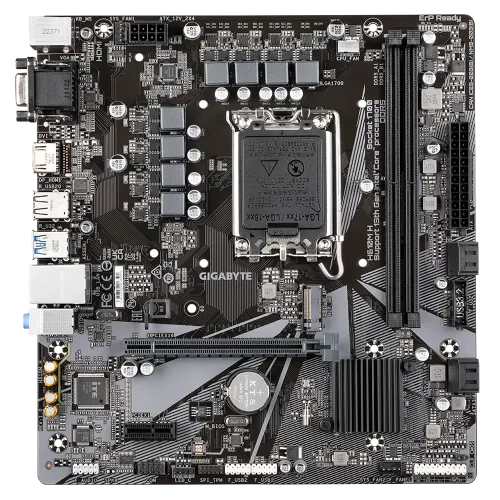

The GIGABYTE H610M H DDR5 LGA1700 mATX Motherboard supports 14th/13th/12th Gen Intel Processors with dual-channel DDR5 memory up to 64GB at 4800MHz (OC). Built on the Intel H610 Express Chipset, it features a 6+1+1 Hybrid Digital VRM Design for stable power delivery and includes one PCI Express x16 slot supporting PCIe 4.0 for high-performance GPUs. Storage options include one Gen3 x4 M.2 connector for NVMe PCIe 3.0 SSDs and four SATA 6Gb/s ports. Graphics output provides 1x HDMI 2.1 (4K 60Hz) and 1x D-Sub port. Networking is handled by Realtek GbE LAN (1 Gbps) with bandwidth management, while audio uses the Realtek Audio CODEC with high-quality capacitors and Audio Noise Guard. Smart Fan 6 offers multiple temperature sensors and hybrid fan headers with FAN STOP. The motherboard includes Anti-Sulfur Resistors for enhanced longevity and supports Windows 11/10 64-bit. GIGABYTE provides a 3-year warranty for this Ultra Durable produc
