| Basic Information | ||
| Supported CPU | Supports AMD Ryzen series processors that fit the AMD AM4 slot | |
| Chipset | AMD B550 | |
| Form Factor | M-ATX | |
| Memory | ||
| Number of Memory Slots | 2 | |
| Maximum Memory | - Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory - Support Extreme Memory Profile (XMP) memory technology - Supports dual-channel memory technology - 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory) |
|
| Expansion Slots | ||
| Expansion Slots | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot |
|
| Storage | ||
| Supported Storage | 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel) |
|
| Network | ||
| LAN | RTL8125 2.5Gbit LAN | |
| Audio | ||
| Audio | Realtek ALC897 high fidelity decoding chip, supports up to 5.1 channels | |
| BIOS | ||
| BIOS | 128M UEFI, support multiple languages | |
| Ports & Connectors | ||
| HDMI | -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution | |

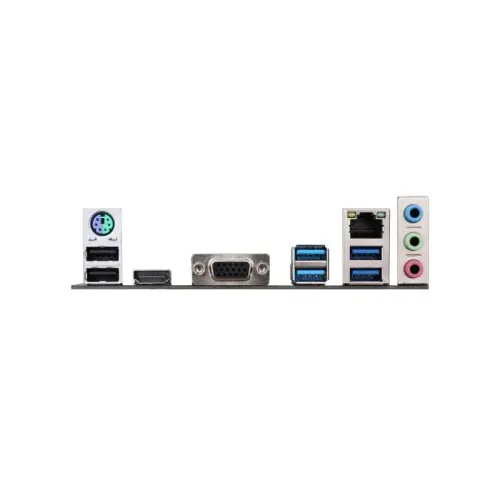

| USB Ports | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×VGA interface -1×PS/2 interface -1×2.5G network interface -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×System fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×12V 4-pin RGB pin -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper |
|
| Warranty | ||
| Warranty | 3 Years | |

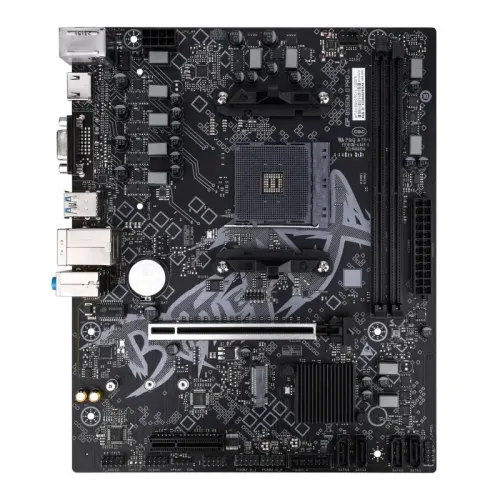

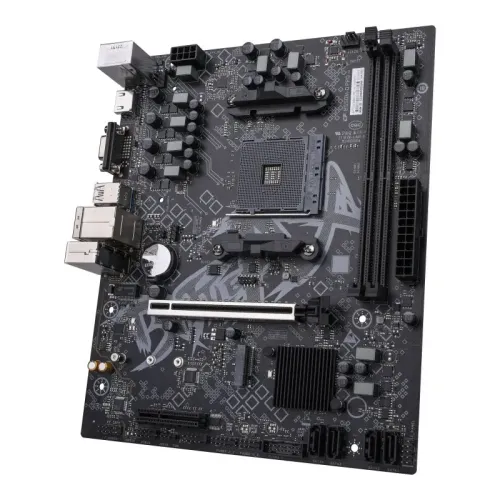

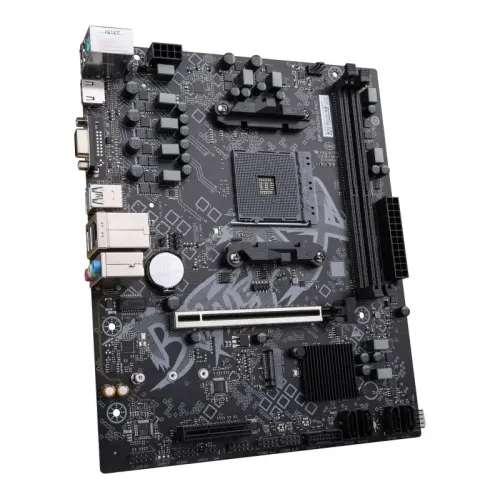

The Colorful BATTLE-AX B550M-D PRO V14 is a micro-ATX motherboard built for the AMD AM4 platform and the B550 chipset, offering a solid entry to mid-range option for PC builders. With support for 3rd-gen and even some 5th-gen AMD Ryzen CPUs (check for the latest BIOS update), it brings modern features like a full-length PCIe 4.0 x16 slot for graphics cards, a PCIe 4.0 ×4/NVMe M.2 slot for fast storage, dual DDR4 DIMMs supporting up to 64 GB (2 × 32 GB) and memory speeds up to DDR4-3600 (OC). Key connectivity includes a 2.5 GbE LAN port, HDMI + VGA display outputs (for Ryzen APU users), and a compact mATX form factor that fits into smaller cases. Overall, it’s a cost-effective motherboard that delivers the essentials of the B550 platform — PCIe 4.0, high memory speeds, and modern I/O — for users looking to build a capable AM4 machine without breaking the bank.
