| Basic Information | ||
| Supported CPU | AMD Socket AM5, supporting AMD Ryzen 9000, 8000, and 7000 Series Processors | |
| Chipset | AMD B840 | |
| Form Factor | Micro ATX (mATX) Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 2 x DDR5 DIMM Sockets | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | Up to 128 GB (Maximum 64 GB per single DIMM capacity) | |
| Supported Memory | DDR5 7600(O.C.) down to 4800 MT/s; supports non-ECC Un-buffered DIMM modules, AMD EXtended Profiles for Overclocking (AMD EXPO™), and Extreme Memory Profile (XMP) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support | |
| Max Shared Memory | Dynamically allocated by system based on total operating memory pool | |
| Expansion Slots | ||
| Expansion Slots | Integrated in CPU: 1 x PCIe 4.0 x16 slot (Supports x16 mode for Ryzen 9000/7000, drops to x8 mode for Ryzen 8000 series) Integrated in Chipset: 1 x PCIe 3.0 x16 slot (running at x4 mode) | |
| Storage | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU): Supports PCIe 4.0 x4/x2 SSDs (Type 2580/2280) 1 x M.2 connector (M2C_SB): Supports PCIe 3.0 x2 SSDs (Type 2280) 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Wi-Fi 6 RTL8851BE (802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz dual frequency bands) | |
| Audio | ||
| Audio | Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel configuration support | |
| BIOS | ||
| BIOS | 1 x 256 Mbit flash; licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @60 Hz (HDCP 2.3 and HDR compliant) | |

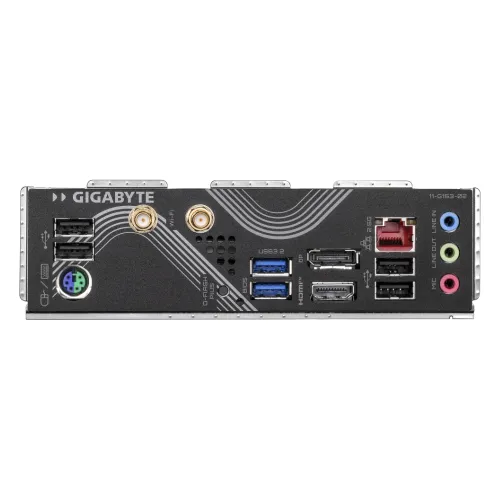

| USB Ports | Back Panel: 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports Internal Headers: 1 x USB Type-C® header (USB 3.2 Gen 1 support), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers (supporting 4 additional ports) | |
| Display Port | 1 x DisplayPort 1.4 port, supporting a maximum resolution of 3840x2160 @144 Hz (HDR compliant) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage (RAID 5 exclusive to Ryzen 9000 series); RAID 0, RAID 1, and RAID 10 for SATA devices | |
| TPM (Trusted Platform Module ) | Supported via AMD CPU fTPM architecture; 1 x physical SPI TPM header available on-board | |
| Internal I/O Ports | 1x 24-pin ATX main power, 1x 8-pin ATX 12V power, 1x CPU fan header, 1x CPU fan/water pump header, 1x system fan header, 1x system fan/water pump header, 2x Addressable RGB Gen2 LED strip headers, 1x RGB LED strip header, 2x M.2 slots, 4x SATA 6Gb/s, 1x front panel header, 1x front panel audio header, USB headers, 1x reset jumper, 1x Clear CMOS jumper | |
| Others | ||
| Bundled Software | GIGABYTE Control Center (GCC), Norton® Internet Security (OEM edition) | |
| Wireless Communication module | Wi-Fi 6 RTL8851BE module + Bluetooth 5.3 | |
| Special feature | Q-Flash Plus button (BIOS update without installing CPU/memory), Smart Fan 6 control with dual curve mode, PCIe EZ-Latch quick-release mechanical design, AI-Trace Technology optimization | |
| Warranty | ||
| Warranty | 3 Years | |

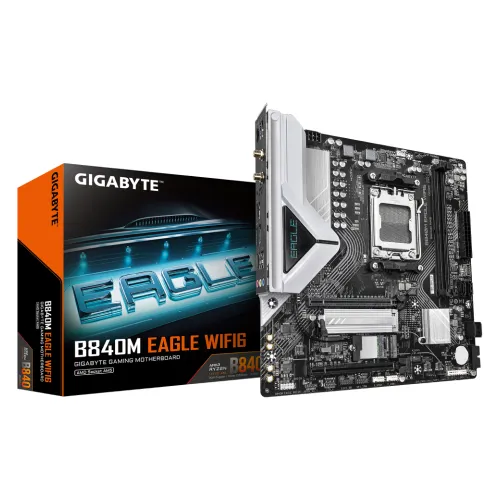

The GIGABYTE B840M EAGLE WIFI6 is a Micro ATX motherboard built on the AMD B840 chipset with AMD AM5 socket support for AMD Ryzen 9000, 8000, and 7000 Series processors. It features dual-channel DDR5 memory with 2 DIMM slots supporting up to 128GB (64GB per DIMM) at overclocked speeds up to 7600 MT/s, with AMD EXPO and XMP memory profile support. The board includes 2 M.2 slots (one PCIe 4.0 x4/x2 CPU-connected, one PCIe 3.0 x2 chipset-connected) and 4 SATA 6Gb/s ports with NVMe SSD RAID 0/1/5/10 support . Expansion features a PCIe 4.0 x16 CPU slot with EZ-Latch quick-release design and PCIe UD Slot providing 10X strength for graphics cards. Display outputs include 1 DisplayPort 1.4 (3840×2160@144Hz with HDR) and 1 HDMI 2.1 (4096×2160@60Hz with HDR/HDCP 2.3) . Networking delivers Realtek 2.5GbE LAN plus Realtek Wi-Fi 6 RTL8851BE (802.11ax, 2.4/5GHz) with Bluetooth 5.3. Audio is 8-channel HD audio via Realtek ALC897. The motherboard includes Smart Fan 6 cooling, Q-Flash Plus BIOS update without CPU/RAM/GPU, and carries a 3-year Gigabyte warranty.
