| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors | |
| Chipset | Intel B760 Express Chipset | |
| Form Factor | Micro ATX Form Factor (23.0cm x 21.5cm) | |
| Memory | ||
| Number of Memory Slots | 2 x DDR5 DIMM sockets | |
| Channel Supported | Dual Channel | |
| Maximum Memory | Up to 128 GB (64 GB single DIMM capacity) | |
| Supported Memory | DDR5 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s modules; Support for Extreme Memory Profile (XMP) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support | |
| Max Shared Memory | Shared system memory dynamically allocated by the OS/CPU depending on available RAM configuration. | |
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCI Express x16 slot (supports PCIe 4.0 and runs at x16) Chipset: 1 x PCI Express x1 slot (supports PCIe 3.0 and runs at x1) | |
| Storage | ||
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) + 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Audio | ||
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel configuration | |
| BIOS | ||
| BIOS | 1 x 128 Mbit flash; Licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port (supporting a maximum resolution of 4096x2160@60 Hz, HDMI 2.1 version, and HDCP 2.3) | |
| USB Ports | Back Panel: 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports Internal Headers: 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports | |
| Display Port | 1 x DisplayPort (supporting a maximum resolution of 4096x2304@60 Hz, DisplayPort 1.2 version, and HDCP 2.3) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Internal I/O Ports | 1x 24-pin main power, 1x 8-pin 12V power, 1x CPU fan header, 2x system fan headers, 1x RGB LED strip header, 2x M.2 Socket 3, 4x SATA 6Gb/s, 1x front panel, 1x front panel audio, 1x S/PDIF Out, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 1x serial port header, 1x Clear CMOS jumper | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software | |
| Special feature | Q-Flash Support (update BIOS without installing CPU, memory, or graphics card); EZ-Latch design for the PCIe 4.0 x16 slot; Smart Fan 6 thermal management | |
| Warranty | ||
| Warranty | 3 Years | |

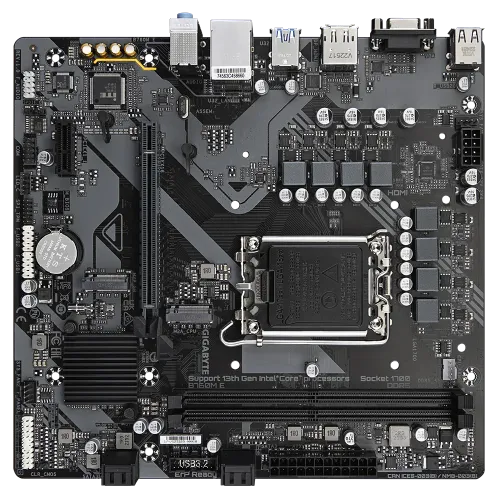

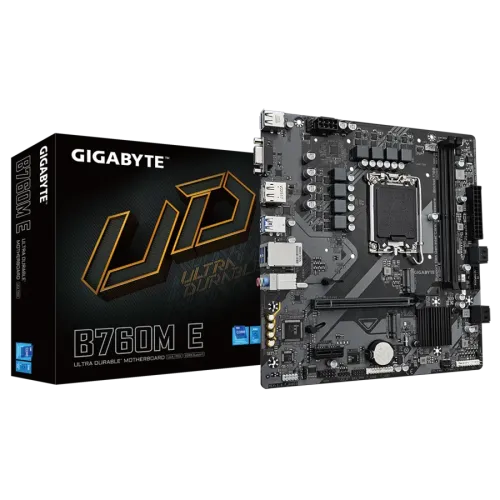

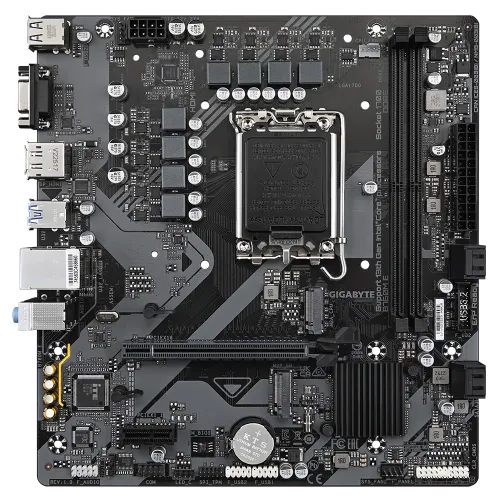

The GIGABYTE B760M E DDR5 Micro ATX LGA1700 motherboard delivers uncompromised performance for Intel 12th/13th/14th Gen processors with its hybrid 6+1+1 phases digital VRM solution and premium chokes. This DDR5 motherboard supports dual-channel memory up to 128GB with overclocking capability reaching 7200MHz+ via XMP 3.0, featuring GIGABYTE's exclusive DDR5 circuit design that unlocks programmable voltage control. Next-generation storage includes two PCIe 4.0 x4 M.2 Connectors alongside four SATA 6Gb/s ports with RAID support. The reinforced PCIe 4.0 x16 slot offers EZ-Latch quick release design for easy GPU installation. Graphics connectivity provides HDMI 2.1 (4K@60Hz), DisplayPort 1.2, and D-Sub for triple-monitor setups. Network features Realtek GbE LAN with bandwidth management, while audio delivers 8-channel HD audio with high-end capacitors and Audio Noise Guard. Smart Fan 6 includes multiple temperature sensors, hybrid PWM/DC fan headers supporting up to 24W, and FAN STOP technology. The Micro ATX form factor measures 23.0cm × 21.5cm. GIGABYTE provides a 3-year warranty for this motherboard.
