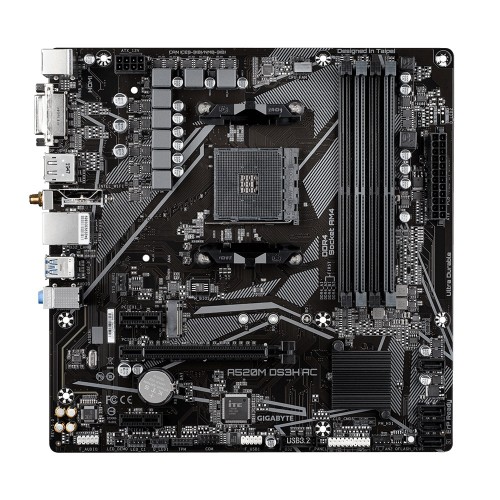

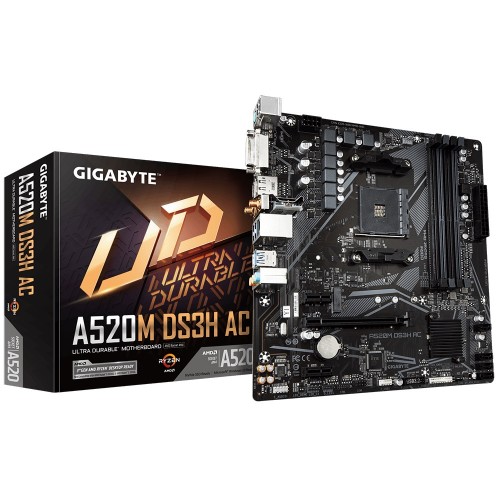

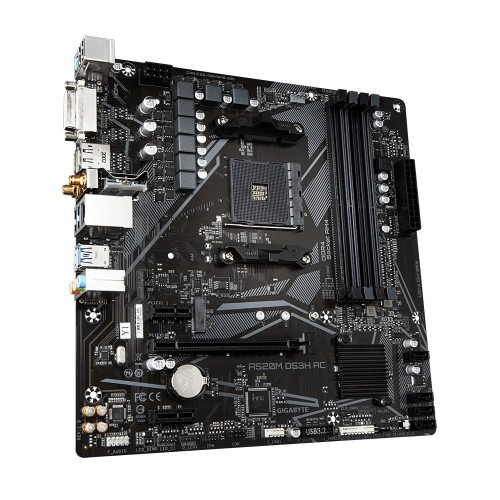

-500x500.png "GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard")
-500x500.png "GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard")
-500x500.png "GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard")
| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors | |
| Chipset | AMD A520 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM sockets |
|
| Channel Supported | DDR4 | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Supported Memory | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz Support for up to 3 displays at the same time |
|
| Max Shared Memory | 16 GB | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
|
| Storage | ||
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Network | ||
| LAN | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Wireless | Intel Wi-Fi 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
|
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|

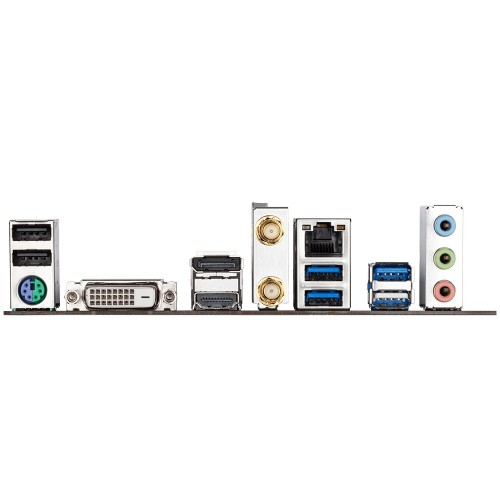

| Ports & Connectors | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB Ports | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| Display Port | 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz | |
| Audio | 1 x front panel audio header | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| Others | ||
| Special feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Warranty | ||
| Warranty | 3 Years | |
For entry-level and mid-range AMD projects, the GIGABYTE A520M DS3H AC Ultra Durable AM4 Micro-ATX Motherboard is a reliable option that combines performance benefits with durability. Its AMD Ryzen 3000, 4000 G-Series, and 5000 series CPUs on the AM4 socket are supported by the AMD A520 chipset, which makes it suitable for office work, gaming, and multimedia duties. To improve system responsiveness, it has a dual-channel DDR4 memory architecture that supports high-speed modules. The motherboard has HDMI and DVI-D outputs for flexible display support, M.2 and SATA ports for quick storage solutions, and PCIe slots for graphics expansion. Users benefit from dependable and quick network connectivity thanks to integrated Wi-Fi AC and Gigabit LAN. For steady performance and enduring dependability, it is constructed using GIGABYTE's Ultra Durable design, which combines premium parts, reliable power delivery, and cutting-edge cooling solutions. It is appropriate for small to medium-sized PC designs due to its small Micro-ATX form factor, which also allows for future expansion. For consumers seeking an affordable, feature-rich AMD system foundation, this board is a great option. The GIGABYTE A520M DS3H AC Micro ATX Motherboard comes with 3 years warranty.
