| Basic Information | ||
| Supported CPU | 14th/13th/12th Gen Intel Processors (LGA1700) | |
| Chipset | Intel H610 |
|
| Form Factor | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm | |
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM Slots | |
| Channel Supported | Dual Channel DDR5 Memory Technology |
|
| Maximum Memory | 96GB | |
| Supported Memory | 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800 Supports Intel Extreme Memory Profile (XMP) 3.0 |
|
| Graphics | ||
| Graphics | Intel Xe Graphics Architecture (Gen 12) 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz |
|
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset:1 x PCIe 3.0 x1 Slot (PCIE2) 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors |
|
| Storage | ||
| Supported Storage | 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | Gigabit LAN 10/100/1000 Mb/s Realtek 8111H |
|
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
| BIOS | ||
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Ports & Connectors | ||
| HDMI | 2x HDMI Port 2.1 |
|
| USB Ports | 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (4 Rear, 2 Front) |
|
| Audio | 1 x Front Panel Audio Connector HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
|

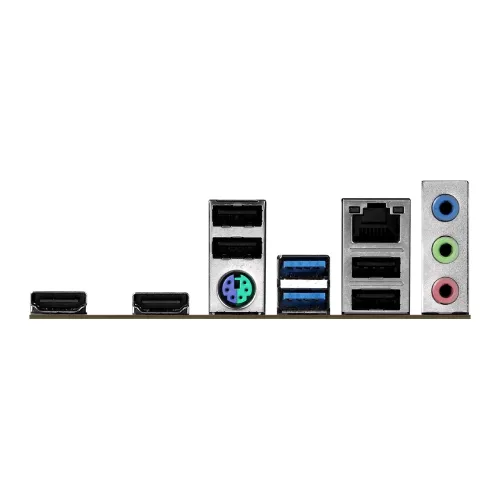

| Internal I/O Ports | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24-pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports). Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 2 x HDMI Ports 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Bundled Software | ASRock Motherboard Utility (A-Tuning) UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash |
|
| Special feature | 1 x RJ-45 LAN Port |
|
| Warranty | ||
| Warranty | 3 years |
|

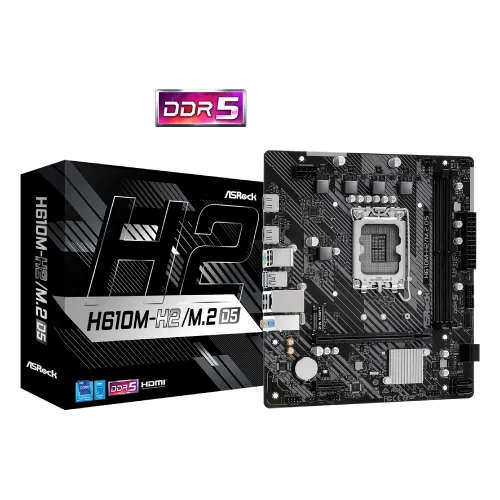

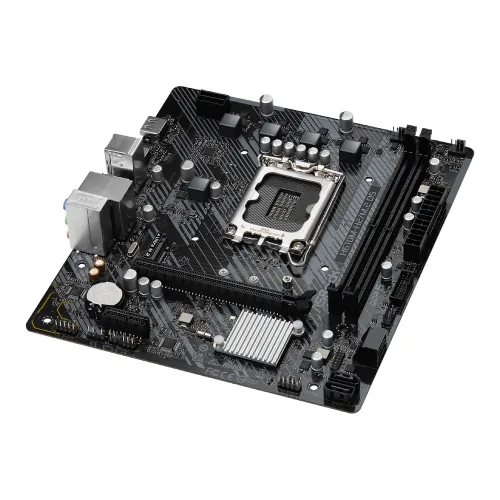

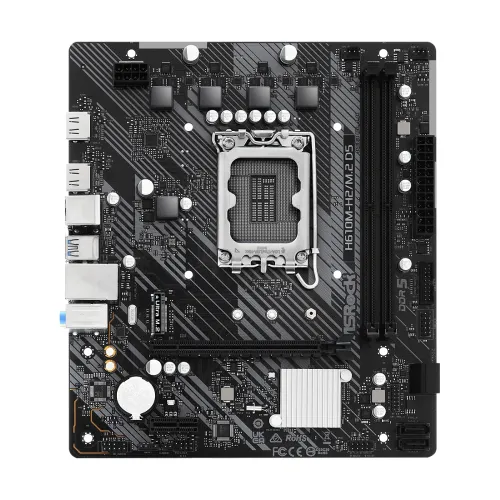

The ASROCK H610M-H2/M.2 is a dependable and high-performance mATX motherboard engineered for Intel’s 14th, 13th, and 12th Generation CPUs. With DDR5 memory support, this motherboard guarantees quicker data processing, better multitasking, and increased overall system reliability. The H610 chipset provides reliable performance for daily tasks, office activities, and basic gaming setups. Featuring an M.2 slot for NVMe SSDs, you obtain lightning-fast storage speeds for rapid booting and seamless application performance. The small micro-ATX form factor is perfect for building space-saving PCs, and its sturdy components along with efficient power delivery guarantee lasting reliability. Ideal for cost-sensitive users, students, and home/office configurations, the ASROCK H610M-H2/M.2 provides excellent value with contemporary features, effective performance, and smooth compatibility with Intel’s latest processors. ASROCK H610M-H2/M.2 DDR5 LGA1700 mATX Motherboard comes with 3 years warranty.
