| Basic Information | ||
| Supported CPU | AMD Socket AM5, supporting AMD Ryzen 9000, 8000, and 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | Micro ATX (mATX); 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM Sockets | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | Up to 256 GB (Maximum 64 GB per single DIMM capacity) | |
| Supported Memory | DDR5 8200(O.C) down to 4400 MT/s; supports non-ECC Un-buffered DIMM modules, AMD EXtended Profiles for Overclocking (AMD EXPO™), and Extreme Memory Profile (XMP) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support | |
| Max Shared Memory | Dynamically allocated by system (Typically defaults up to 2 GB - 16 GB depending on system RAM allocation) | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCIe x16 slot (integrated in CPU; supports PCIe 5.0 x16 for Ryzen 9000/7000, drops to PCIe 4.0 for Ryzen 8000 series); 1 x PCIe 3.0 x16 slot (running at x4 mode from Chipset) | |
| Storage | ||
| Supported Storage | 2 x M.2 Socket 3 connectors (M2A_CPU supporting PCIe 5.0/4.0 x4/x2; M2B_CPU supporting PCIe 4.0 x4/x2); 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Realtek Wi-Fi 6E RTL8852CE (Triple-band 2.4/5/6 GHz, 160MHz wireless standard support) | |
| Audio | ||
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for optical S/PDIF Out | |
| BIOS | ||
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port (via front header internal connection support, max resolution 1920x1080 30 Hz) | |
| USB Ports | Rear: 1 x USB Type-C (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A (red), 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 Internal Headers: 1 x USB Type-C (USB 3.2 Gen 2x2), 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 | |
| Display Port | 1 x DisplayPort (Rear panel, supporting max resolution 3840x2160@144 Hz, DisplayPort 1.4, and HDR) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage (RAID 5 requires Ryzen 9000); RAID 0, RAID 1, and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | Integrated/Supported via AMD fTPM (Hardware TPM header available on-board) | |
| Internal I/O Ports | 1x 24-pin power, 1x 8-pin 12V power, 1x CPU fan header, 1x CPU fan/water pump header, 3x system fan headers, 1x system fan/water pump header, 3x Addressable RGB Gen2 LED headers, 1x RGB LED header, 2x M.2 slots, 4x SATA 6Gb/s, 1x front panel header, 1x front audio header, USB headers, 1x Trusted Platform Module header | |
| Others | ||
| Bundled Software | GIGABYTE Control Center (GCC), Norton Internet Security (OEM version) | |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE + Bluetooth 5.3 | |
| Special feature | Q-Flash Plus Button (Flash BIOS without CPU/GPU installed), RGB FUSION support, EZ-Latch mechanics for quick M.2/PCIe releases, Smart Fan 6 control | |
| Warranty | ||
| Warranty | 3 Years | |

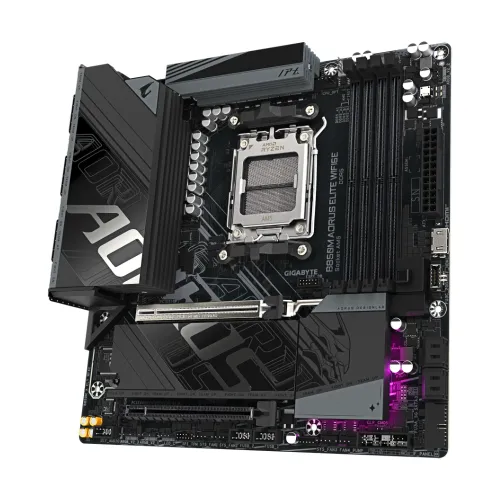

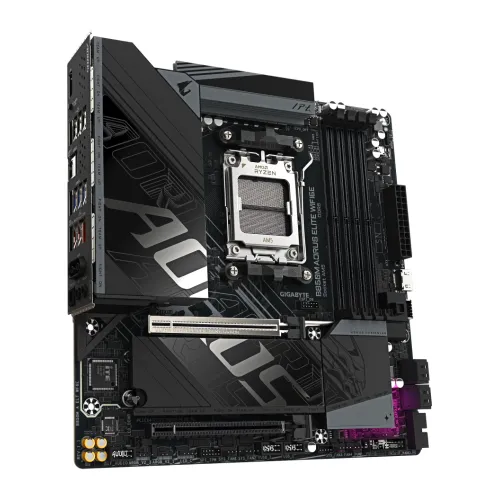

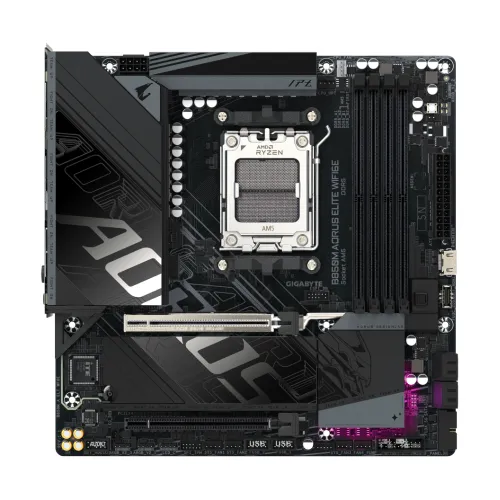

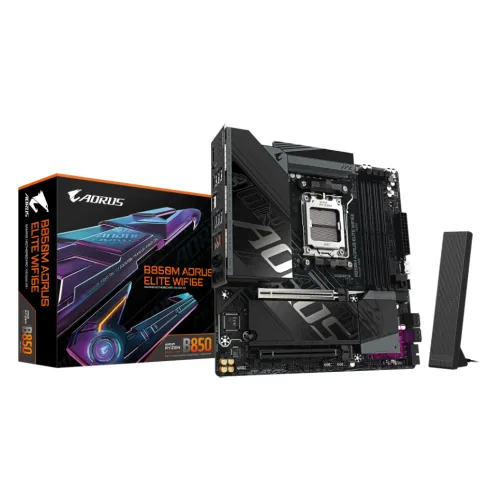

The GIGABYTE B850M AORUS ELITE WIFI6E is a high-performance AMD AM5 microATX motherboard built for Ryzen 9000/8000/7000 series processors, featuring the cutting-edge AMD B850 chipset. It supports dual-channel DDR5 memory up to 256GB with AMD EXPO™ technology, reaching speeds beyond 8200 MT/s OC for exceptional gaming and content creation performance. The board includes a robust PCIe 5.0 x16 slot with PCIe UD Slot technology for 10x strength and improved heat dissipation, plus dual M.2 slots—one PCIe 5.0 x4 and one PCIe 4.0 x4—for ultra-fast storage. Networking is anchored by Wi-Fi 6E (802.11ax) with a directional ultra-high gain antenna and 2.5GbE LAN for lag-free connectivity. Enhanced thermal design features VRM Thermal Armor Advanced and M.2 Thermal Guard Ext. Connectivity includes HDMI, DisplayPort, USB 3.2 Gen2 Type-C, and six 4-pin PWM fan headers. GIGABYTE offers this motherboard with a standard 3-year manufacturer warranty.
