| Basic Information | ||
| Supported CPU | AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors | |
| Chipset | AMD B450 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) of system memory | |
| Supported Memory | Dual channel memory architecture Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies | |
| Max Shared Memory | 16 GB | |
| Storage | ||
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port | |
| USB Ports | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel | |
| DVI-D (s) | 1 x DVI-D port | |
| Audio | 3 x audio jacks | |
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software | |
| Warranty | ||
| Warranty | 3 years | |

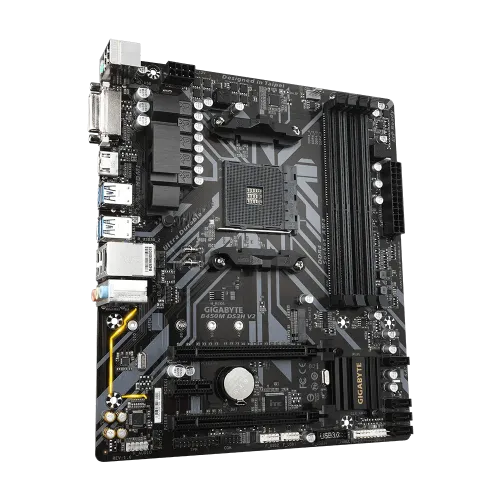

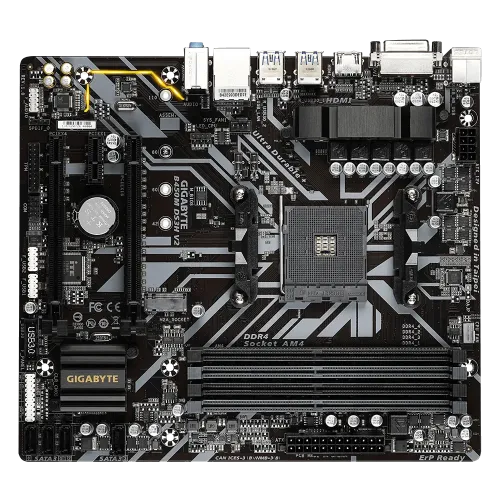

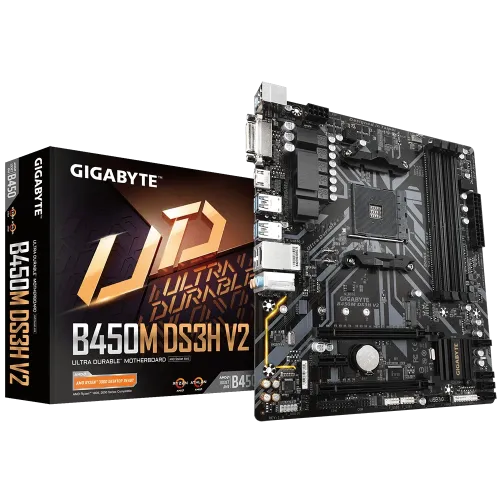

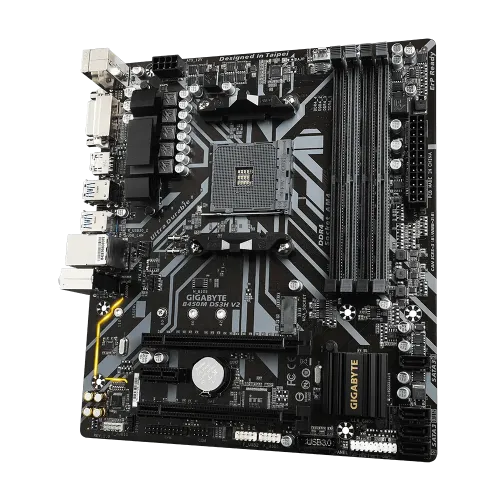

The Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard is a reliable and feature-rich motherboard designed for AMD Ryzen processors. Built on the AMD B450 chipset, it supports Ryzen 5000, 4000 G-Series, 3000, and 2000 Series processors, delivering excellent performance for gaming, productivity, and everyday computing. Its Micro ATX form factor includes dual-channel DDR4 memory support, an M.2 NVMe SSD slot for high-speed storage, PCIe expansion slots, and multiple USB connectivity options. With Ultra Durable components, high-quality audio capacitors, and comprehensive cooling support, the Gigabyte B450M DS3H V2 offers stability, efficiency, and excellent value for users building or upgrading an AMD-based PC.
