| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors | |
| Chipset | AMD B550 |
|
| Form Factor | ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR4 | |
| Channel Supported | DDR4 | |
| Maximum Memory | up to 128 GB | |
| Supported Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 – 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: – AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs – AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Network | ||
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) | |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless standard |
|
| Audio | ||
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI port (Note) | |
| USB Ports | CPU: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| DVI-D (s) | ||
| Display Port | 1 x DisplayPort (Note) | |
| Audio | 3 x audio jacks | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | ||
| Special feature | ||
| Warranty | ||
| Warranty | 3 Years | |

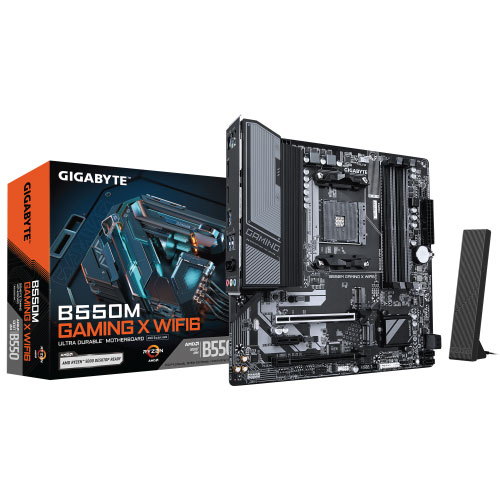

The GIGABYTE B550M GAMING X WIFI6 AMD DDR4 Motherboard is designed to deliver reliable performance and modern connectivity for gamers and PC enthusiasts using AMD’s AM4 platform. Built on the B550 chipset, it supports AMD Ryzen 3000, 5000, and select newer processors, ensuring smooth multitasking and gaming performance. With support for DDR4 memory, it provides stable speeds and efficient power usage, making it suitable for both budget and mid-range builds. The motherboard comes with built-in Wi-Fi 6, offering fast, low-latency wireless connectivity, along with Gigabit LAN for stable wired networking. It features PCIe 4.0 support for high-speed GPUs and NVMe storage, ensuring faster data access and reduced loading times in games and applications. The Micro-ATX form factor allows for compact builds without sacrificing expandability, offering multiple USB ports, HDMI, and DisplayPort outputs. Enhanced with GIGABYTE’s Ultra Durable components, Smart Fan 5 cooling, and solid VRM design, the B550M GAMING X WIFI6 ensures long-lasting reliability and stable system operation. It is an excellent choice for gamers seeking an affordable yet powerful motherboard with modern connectivity and features. The GIGABYTE B550M GAMING X WIFI6 AMD AM5 DDR4 Micro ATX Motherboard comes with 3 years warranty.
