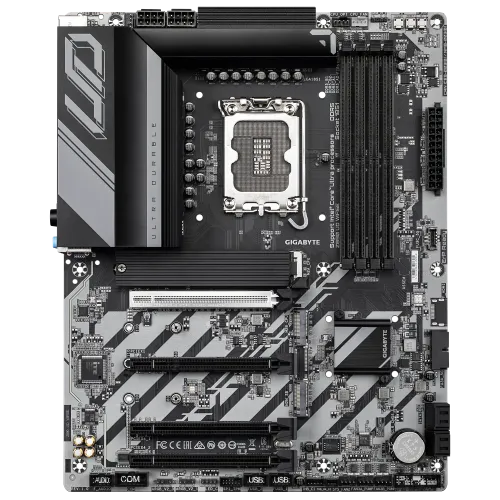

-500x500.png "Gigabyte Z890 UD WIFI6E DDR5 LGA 1851 ATX Motherboard")

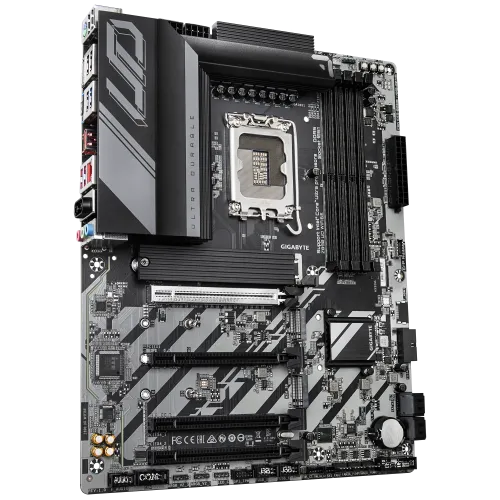

-500x500.png "Gigabyte Z890 UD WIFI6E DDR5 LGA 1851 ATX Motherboard")

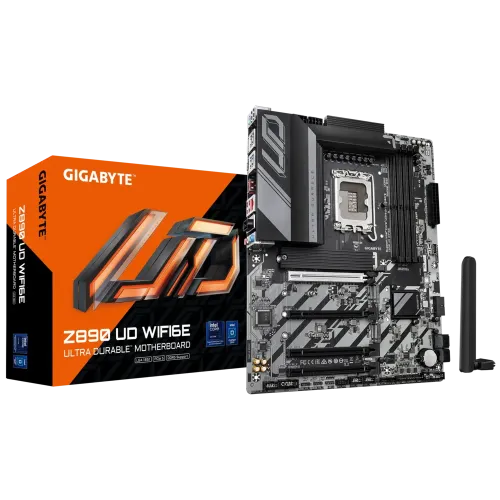

-500x500.png "Gigabyte Z890 UD WIFI6E DDR5 LGA 1851 ATX Motherboard")
| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU |
|
| Chipset | Intel Z890 Express Chipset | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Channel Supported | DDR5 | |
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
| Storage | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Audio | ||
| Audio | 3 x audio jacks | |
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||

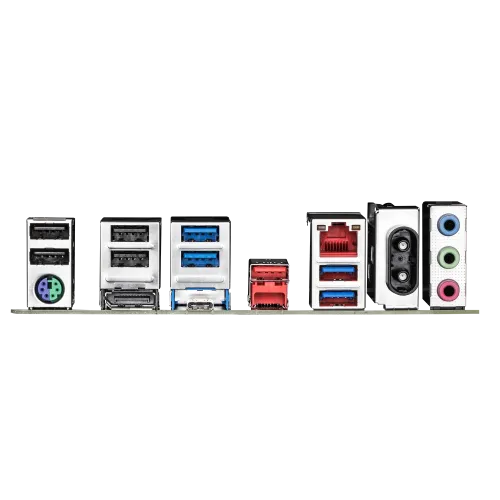

| USB Ports | 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) |
|
| Display Port | 1 x DisplayPort | |
| Audio | 3 x audio jacks | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special feature | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Warranty | ||
| Warranty | 3 years | |
The Gigabyte Z890 UD WIFI6E DDR5 LGA 1851 ATX Motherboard is designed to provide dependable performance and cutting-edge connectivity for current Intel-based systems. It is built with the latest LGA 1851 socket and supports Intel's latest processors, offering powerful computing for gaming, multimedia creation, and productivity applications. With DDR5 memory compatibility, the board provides quicker speeds, increased bandwidth, and greater efficiency for demanding workloads. It also includes WiFi 6E technology, which delivers quicker, more consistent, and low-latency wireless access for smooth online gaming and streaming. The motherboard has several PCIe slots, which allow for high-performance GPUs and expansion cards, as well as sophisticated storage options including NVMe M.2 slots for ultra-fast SSDs. The improved power supply assures consistent overclocking potential, while the sturdy build quality ensures long-term dependability. The ATX form factor offers exceptional expandability, making it suitable for consumers seeking a balance of power and flexibility. The Gigabyte Z890 UD WIFI6E is a reliable choice for developing a future-ready PC, thanks to its extensive features and sturdy design. The Gigabyte Z890 UD WIFI6E DDR5 LGA 1851 ATX Motherboard comes with 3 years warranty.
