| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DIMM sockets | |
| Channel Supported | DDR5 |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Supported Memory | 14th and 13th Generation Intel Core i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
|
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe |
|
| Storage | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Wireless | Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Audio | ||
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB Ports | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| Display Port | 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) | |
| Wireless Communication module | Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Special feature | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Warranty | ||
| Warranty | 3 Years | |

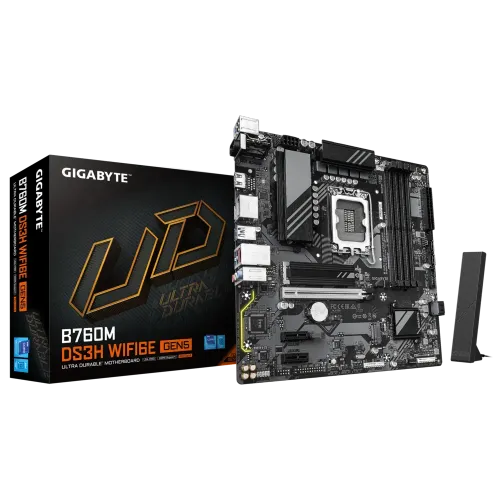

For consumers who desire dependable performance in a small package without compromising on contemporary features, the GIGABYTE B760M DS3H WIFI6E GEN5 mATX Motherboard is a flexible and dependable option. Supporting Intel Core 12th, 13th, and 14th generation processors, it guarantees fluid performance for productivity and gaming needs. The board offers enhanced multitasking efficiency, reduced power consumption, and higher speeds thanks to its support for DDR5 memory. Additionally, it has M.2 PCIe 4.0 slots for fast NVMe storage and PCIe 5.0 support for next-generation GPUs, which guarantee speedy data transfers and startup times. High-speed LAN guarantees smooth conventional networking, while integrated Wi-Fi 6E provides incredibly fast and reliable wireless connectivity. Even under demanding workloads, stability and endurance are ensured by GIGABYTE's Ultra Durable components, Smart Fan cooling technology, and optimized power architecture. The B760M DS3H WIFI6E GEN5 is a great option for constructing a dependable mid-range gaming or productivity PC because it is small and powerful. GIGABYTE B760M G AX DDR5 Micro ATX Intel Motherboard comes with 3 years warranty.
