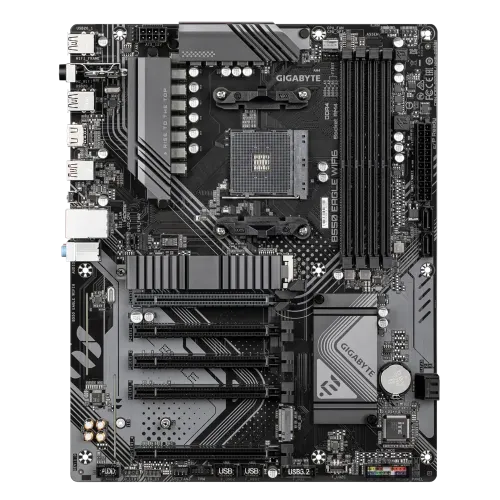

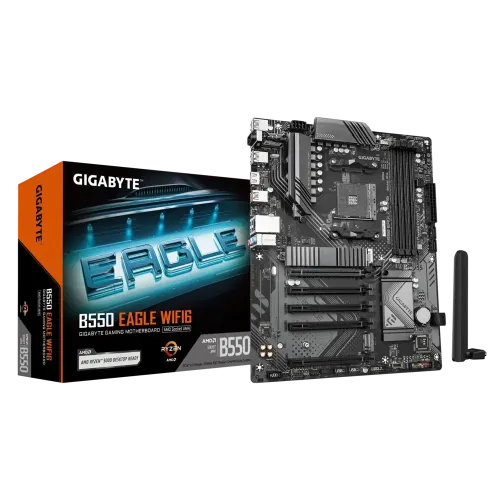

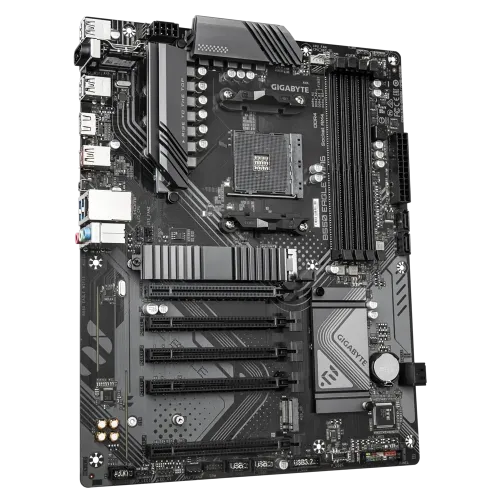

-500x500.png "Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard")
-500x500.png "Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard")
-500x500.png "Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard")
| Basic Information | ||
| Supported CPU | Ryzen 5000/ 5000 G/ 4000 G and 3000 Series Processors | |
| Chipset | AMD B550 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Channel Supported | DDR4 | |
| Maximum Memory | 128 GB | |
| Supported Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. |
|
| Max Shared Memory | 16 GB | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) 1 x M.2 connector (M2A_CPU) 1 x M.2 connector (M2B_SB) |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Network | ||
| LAN | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
|
| Wireless | Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard |
|
| Audio | ||
| Audio | 3 x audio jacks | |
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI | |
| USB Ports | CPU: - AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel - AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |

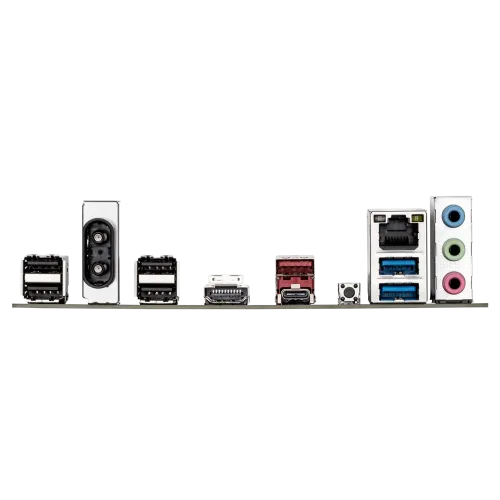

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard |
|
| Special feature | Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Warranty | ||
| Warranty | 3 Years | |
For gamers and PC builders seeking dependable performance, contemporary connection, and features that are ready for the future on the AMD AM4 platform, the GIGABYTE B550 EAGLE WIFI6 AM4 ATX Motherboard was designed. It supports AMD Ryzen 3000, 5000, and some more recent processors and is powered by the B550 chipset, which allows for seamless gaming and multitasking. It provides reliable and effective performance for demanding applications and daily workloads thanks to support for DDR4 memory. The motherboard has PCIe 4.0 support for NVMe SSDs and next-generation graphics cards, which guarantees lightning-fast data transfer and quick loading times. Gigabit LAN and integrated Wi-Fi 6 offer fast, low-latency networking choices that are ideal for smooth streaming and competitive online gaming. Numerous expansion slots, storage choices, and connectivity features—such as USB 3.2 Gen ports, HDMI, and DisplayPort outputs—are made possible by the ATX form factor. The B550 EAGLE WIFI6's Smart Fan 5 technology, sophisticated cooling solutions, and GIGABYTE Ultra Durable components guarantee steady system performance even under demanding workloads. For consumers seeking a balance between gaming features, connection, and long-term durability, it is a good option. The GIGABYTE B550 EAGLE WIFI6 AMD DDR4 Micro ATX Motherboard comes with 3 years warranty.
