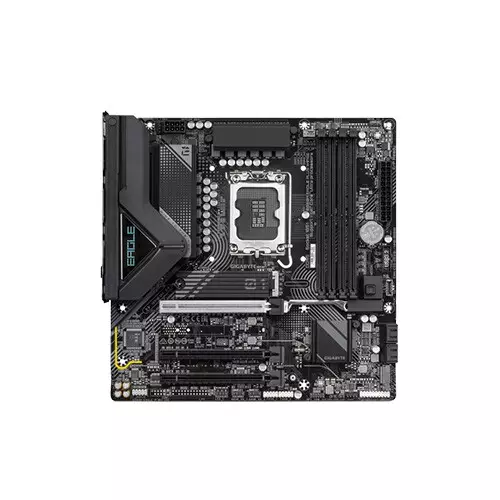

-500x500.png "GIGABYTE B860M EAGLE PLUS WIFI6E Intel Motherboard")

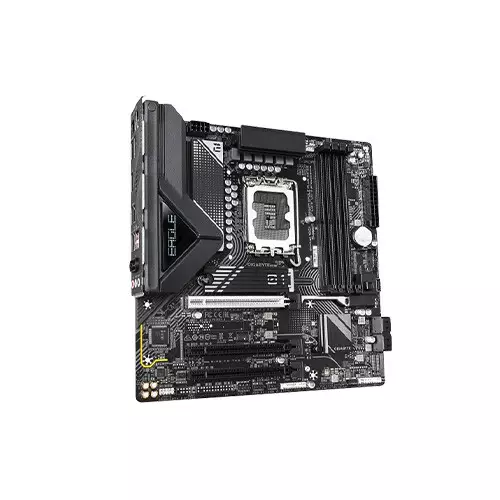

-500x500.png "GIGABYTE B860M EAGLE PLUS WIFI6E Intel Motherboard")

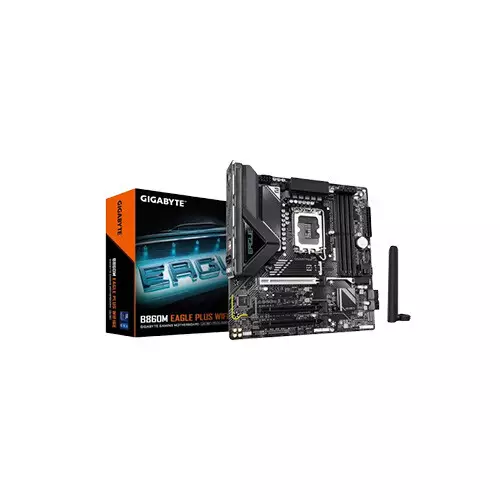

-500x500.png "GIGABYTE B860M EAGLE PLUS WIFI6E Intel Motherboard")
| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
|
| Chipset | Intel B860 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 DIMM | |
| Channel Supported | DDR5 | |
| Maximum Memory | up to 256 GB | |
| Supported Memory | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3) |
|
| Storage | ||
| Supported Storage | PCIe 5.0/4.0 M.2 + 4×SATA 6Gb/s with RAID support | |
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Wireless | Intel Wi-Fi 6E AX211 (PCB rev. 1.0/2.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|

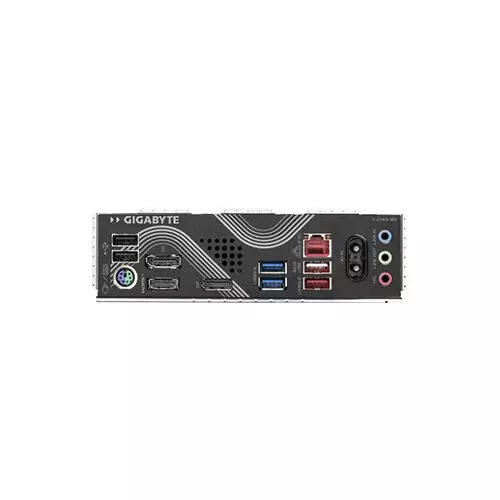

| Ports & Connectors | ||
| HDMI | 1 x HDMI port | |
| USB Ports | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| Display Port | 2 x DisplayPorts | |
| Audio | 3 x audio jacks | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Others | ||
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty | ||
| Warranty | 3 years | |
The latest Intel 14th and 13th Gen Core processors with the LGA1851 socket are supported by the small and powerful GIGABYTE B860M EAGLE PLUS WIFI6E DDR5 Micro ATX Intel Motherboard. Its performance and efficiency-focused design incorporates DDR5 memory for enhanced system responsiveness and faster data transfer. This board has several M.2 slots with heat guards for fast NVMe SSDs, PCIe 5.0 support for graphics cards, and sturdy PCIe armor for stability. With Wi-Fi 6E and 2.5GbE LAN, networking is state-of-the-art and guarantees quick and dependable connections for productivity, gaming, and streaming. Under demanding workloads, the motherboard maintains cool operation thanks to Smart Fan 6 technology and improved thermal solutions. The GIGABYTE B860M EAGLE PLUS WIFI6E is a great option for gamers and creators seeking a blend of performance, connectivity, and durability in a smaller box because of its Micro ATX form factor, which makes it perfect for modest setups while still providing sturdy capabilities. The GIGABYTE B860M EAGLE PLUS WIFI6E Intel Motherboard comes with 3 years warranty.
