| Basic Information | ||
| Supported CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR5 | |
| Channel Supported | DDR5 | |
| Maximum Memory | 256 GB | |
| Supported Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs |
|
| Network | ||
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations |
|
| Audio | ||
| Audio | Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Realtek® ALC1220 CODEC (Only for rev. 1.1) * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI port* | |
| USB Ports | – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 4 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) |
|
| DVI-D (s) | ||
| Display Port | –1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. |
|
| Audio | 1 x front panel audio header | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper * Actual support may vary by CPU. |
|
| Others | ||
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations |
|
| Special feature | ||
| Warranty | ||
| Warranty | 3 years | |

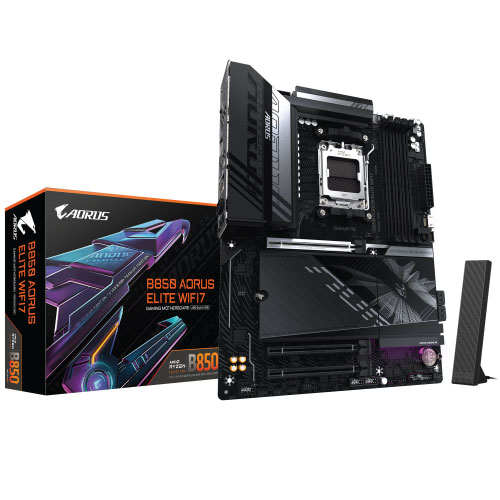

The GIGABYTE B850 A ELITE WF7 AMD DDR5 Motherboard is a high-performance ATX motherboard designed for AMD AM5 processors, making it an excellent choice for gaming and productivity builds. Powered by the AMD B850 chipset, it supports cutting-edge DDR5 memory, PCIe 5.0 expansion, and ultra-fast NVMe SSDs for smooth and future-ready performance. It comes equipped with advanced connectivity, including WiFi 7, 2.5GbE LAN, and multiple USB 3.2 Gen2 ports, ensuring lightning-fast data transfer and seamless online experiences. The motherboard also features GIGABYTE’s renowned Ultra Durable design with enhanced power delivery, reinforced PCIe slots, and efficient thermal solutions to maintain system stability under heavy workloads. With its sleek Elite aesthetics, RGB Fusion support, and robust build quality, the B850 A ELITE WF7 is ideal for gamers and PC enthusiasts looking for reliability, speed, and next-gen technology. The GIGABYTE B850 A ELITE WF7 AMD DDR5 Motherboard comes with 3 years warranty.
