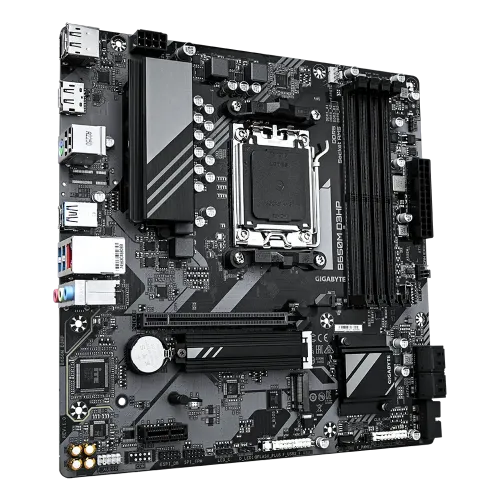

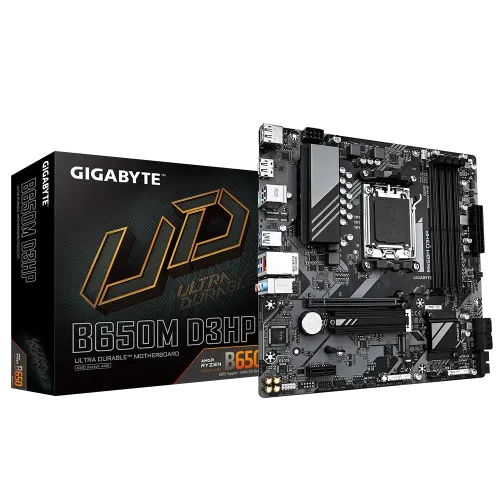

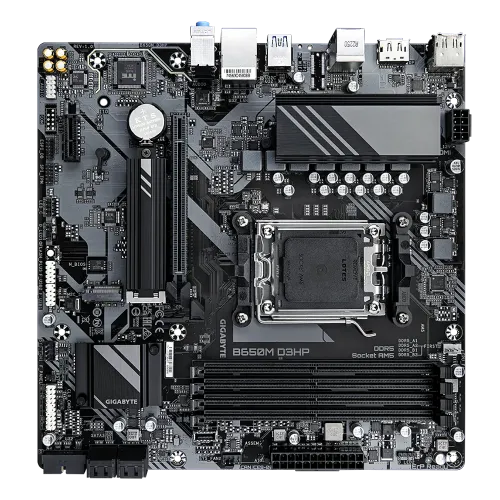

-500x500.png "GIGABYTE B650M D3HP DDR5 AM5 Micro ATX Motherboard")
-500x500.png "GIGABYTE B650M D3HP DDR5 AM5 Micro ATX Motherboard")
-500x500.png "GIGABYTE B650M D3HP DDR5 AM5 Micro ATX Motherboard")
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors |
|
| Chipset | AMD B650 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 DIMMs |
|
| Channel Supported | DDR5 | |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Supported Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) |
|
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI | |
| USB Ports | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
|
| Display Port | 2 x DisplayPorts | |
| Audio | 3 x Audio jacks | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |

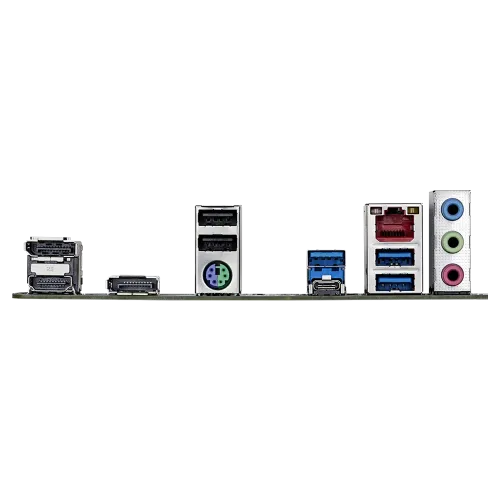

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special feature | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty | ||
| Warranty | 3 Years | |
A dependable and effective option for individuals constructing a contemporary PC with AMD's most recent Ryzen CPUs on the AM5 architecture is the GIGABYTE B650M D3HP DDR5 AM5 Micro ATX Motherboard. With the B650 chipset, it maintains a small Micro ATX design while offering outstanding performance and support for the future. This motherboard guarantees quicker speeds, more bandwidth, and improved power efficiency for multitasking, productivity, and gaming thanks to its compatibility with DDR5 memory. Additionally, it supports PCIe 4.0 for ultra-fast NVMe SSDs and next-generation graphics cards, allowing for faster data transfers and fluid gameplay. The board's superior cooling design maintains performance under demanding workloads, and its construction incorporates GIGABYTE's Ultra Durable components, which guarantee stability and lifespan. It also has high-speed connectivity features including network support and USB ports, offering mainstream PC builders a well-balanced combination of power, dependability, and affordability. The GIGABYTE B650M D3HP AMD AM5 DDR5 Micro ATX Motherboard comes with 3 years warranty.
