| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU |
|
| Chipset | Intel Z890 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Channel Supported | DDR5 |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Supported Memory | Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version. |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) |
|
| Storage | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Wireless | ||
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI port |
|
| USB Ports | 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports |
|
| DVI-D (s) | ||
| Display Port | 2 x DisplayPort |
|
| Audio | 3 x audio jacks 1 x front panel audio header |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |

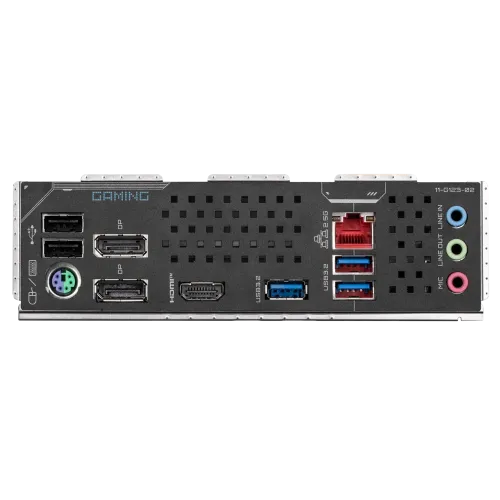

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Wireless Communication module | ||
| Special feature | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup |
|
| Warranty | ||
| Warranty | 3 years | |

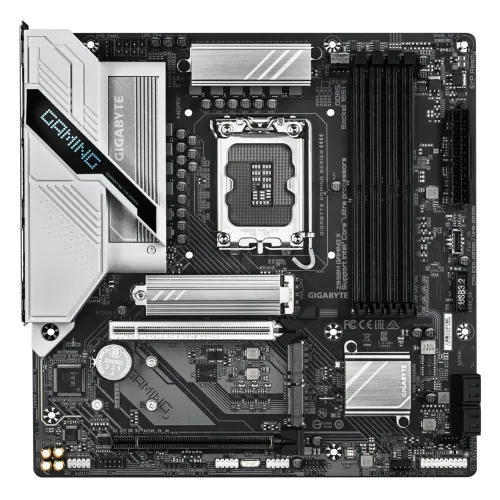

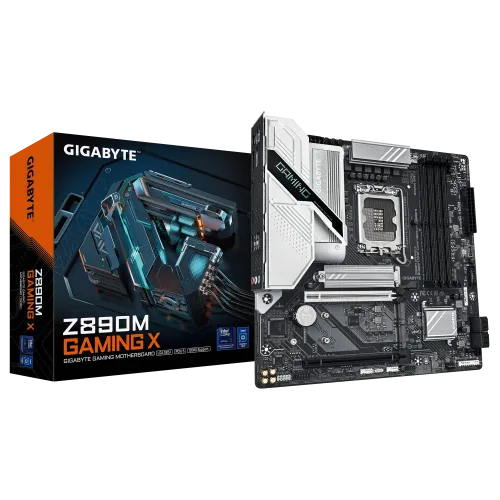

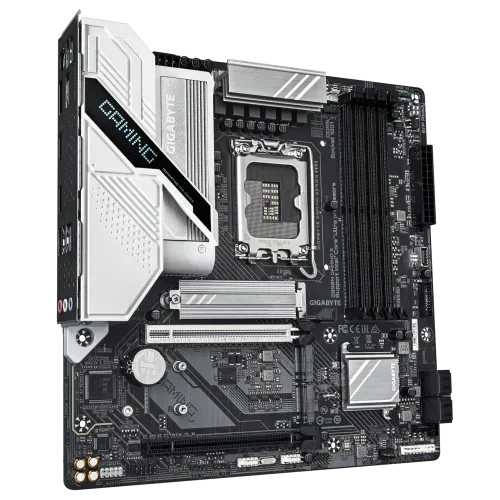

For gamers and performance users seeking next-generation capabilities in a more compact form factor, the Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard is a little but mighty answer. It supports Intel's newest processors and is built with the newest LGA 1851 socket, offering powerful performance for multitasking, gaming, and streaming. DDR5 memory, which offers higher speeds and increased efficiency for more fluid gameplay and productivity, is supported by the board. It has strong connectivity features, including numerous NVMe M.2 slots for ultra-fast SSD storage, high-speed PCIe slots for graphics cards, and improved power supply to keep stability under demanding workloads, despite its Micro ATX chassis. Additionally, the motherboard incorporates contemporary networking features to guarantee seamless internet access. The Gigabyte Z890M GAMING X is a dependable option for creating a small gaming or productivity PC because of its sturdy parts and gaming-focused design, which offer a great mix between size, performance, and expandability. The Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard comes with 3 years warranty.
