| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
|
| Chipset | Intel H810 Express Chipset | |
| Form Factor | Micro ATX Form Factor | |
| Memory | ||
| Number of Memory Slots | 2 x DDR5 DIMM | |
| Channel Supported | DDR5 | |
| Maximum Memory | up to 128 GB | |
| Supported Memory | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz (Graphics specifications may vary depending on CPU support.) |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|
| Network | ||
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|
| Audio | ||
| Audio | 1 x front panel audio header |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|

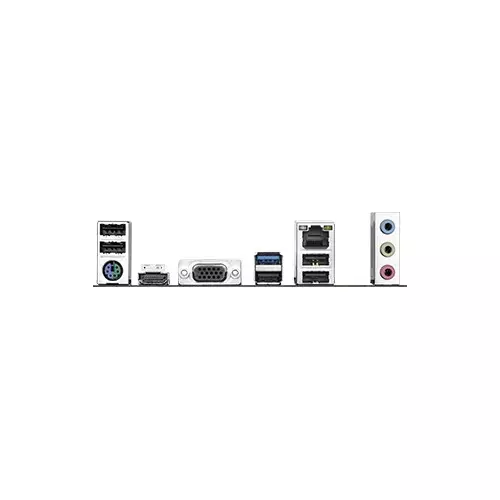

| Ports & Connectors | ||
| HDMI | 1 x HDMI port | |
| USB Ports | Chipset: - 1 xUSB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel |
|
| Audio | 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| Warranty | ||
| Warranty | 3 years | |

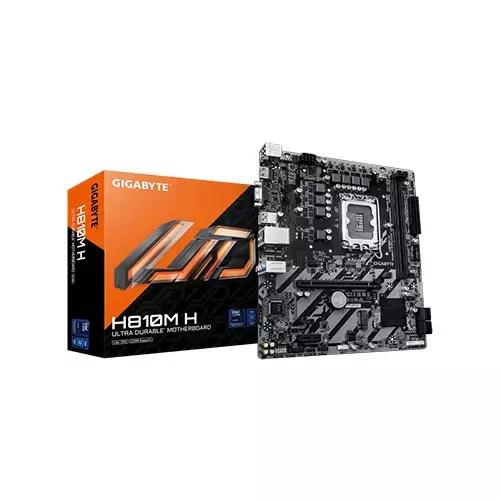

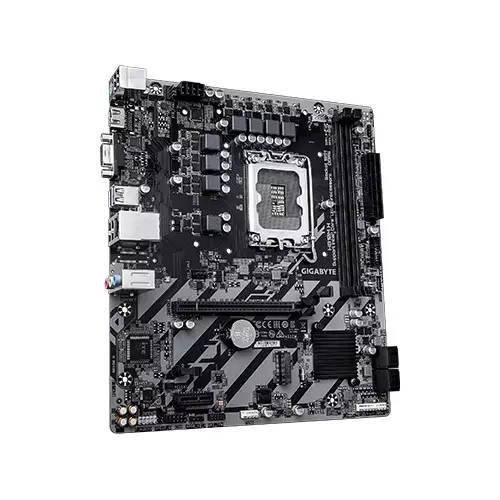

The Gigabyte H810M H LGA1851 DDR5 Intel Motherboard is a budget-friendly solution built for Intel’s latest 14th and 13th Gen processors, offering reliable performance for everyday computing needs. Featuring support for DDR5 memory, it delivers enhanced speed and efficiency compared to older generations, making it ideal for smooth multitasking and productivity tasks. With its Micro ATX form factor, the H810M H is perfect for compact builds without sacrificing essential connectivity options, including PCIe slots, high-speed storage interfaces, and multiple USB ports. Gigabyte’s Ultra Durable design, solid power delivery, and improved thermal management ensure long-lasting stability, making this motherboard a dependable choice for home, office, or entry-level gaming setups. Gigabyte H810M H LGA1851 DDR5 Intel Micro ATX Motherboard comes with 3 years warranty.
