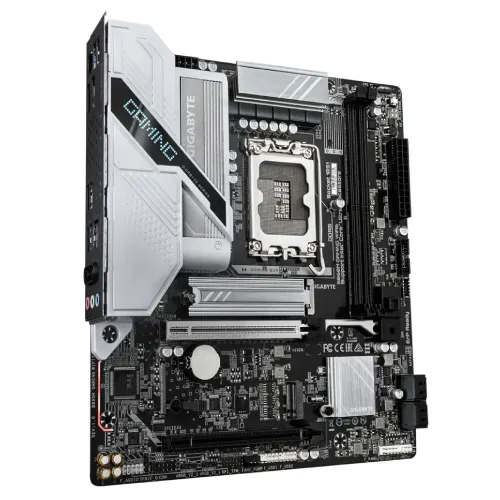

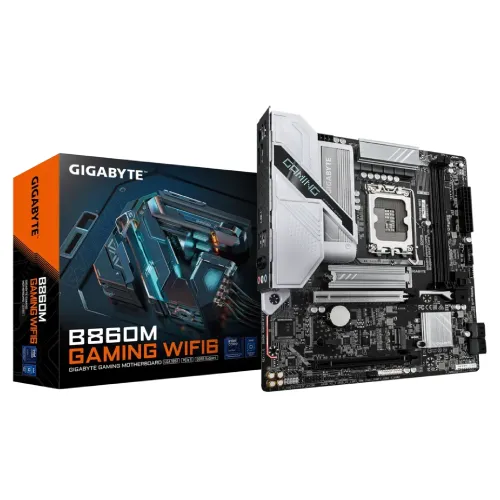

-500x500.png "Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard")
-500x500.png "Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard")
-500x500.png "Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard")
| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors(Series 2) | |
| Chipset | Intel B860 Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM |
|
| Channel Supported | DDR5 | |
| Maximum Memory | 128GB | |
| Supported Memory | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
| Storage | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard |
|
| Audio | ||
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI | |
| USB Ports | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| Display Port | 1 x DisplayPort (Note) |
|
| Audio | 3 x audio jacks | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |

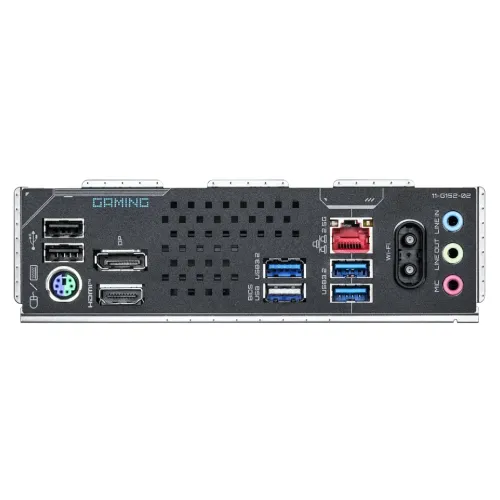

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Special feature | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Warranty | ||
| Warranty | 3 Years | |
Designed for Intel's most recent 14th and 13th Gen processors on the LGA 1851 socket, the Gigabyte B860M GAMING WIFI6 mATX Motherboard is a feature-rich choice that offers powerful performance for productivity and gaming in a small mATX form size. Better multitasking, increased stability, and higher speeds are guaranteed with its DDR5 memory support. It offers quick, dependable, and low-latency connectivity for smooth online gaming and streaming thanks to its Wi-Fi 6 and 2.5GbE LAN capabilities. The motherboard has several M.2 slots with heatsinks for incredibly quick NVMe SSDs, PCIe 5.0 support for next-generation graphics cards, and sophisticated thermal solutions. For gamers and PC builders seeking powerful performance in a small package, the Gigabyte B860M GAMING WIFI6 is a dependable option because to its high-quality audio, RGB Fusion customization, and sturdy Ultra Durable components. The Gigabyte B860M GAMING WIFI6 LGA 1851 MATX Motherboard comes with 3 years warranty.
