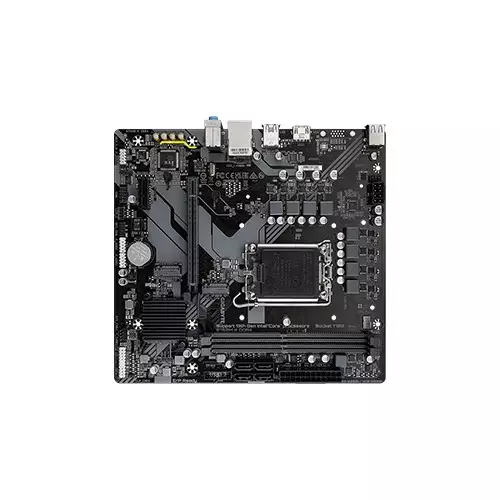

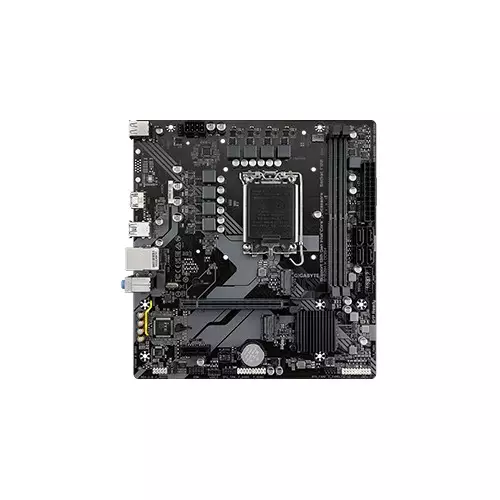

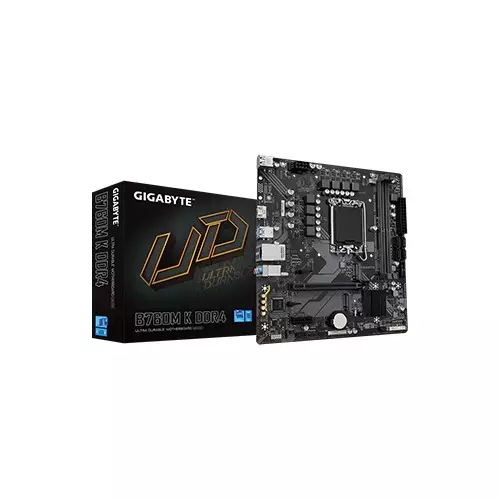

-500x500.png "Gigabyte B760M K DDR4 LGA1700 Intel Micro ATX Motherboard")
-500x500.png "Gigabyte B760M K DDR4 LGA1700 Intel Micro ATX Motherboard")
-500x500.png "Gigabyte B760M K DDR4 LGA1700 Intel Micro ATX Motherboard")
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|
| Chipset | Intel B760 Express Chipset |
|
| Form Factor | Micro ATX Form Factor |
|
| Memory | ||
| Number of Memory Slots | 2 x DDR4 DIMM | |
| Channel Supported | DDR4 | |
| Maximum Memory | up to 64 GB | |
| Supported Memory | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports |
|
| Expansion Slots | ||
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Storage | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Network | ||
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|
| Audio | ||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports |
|

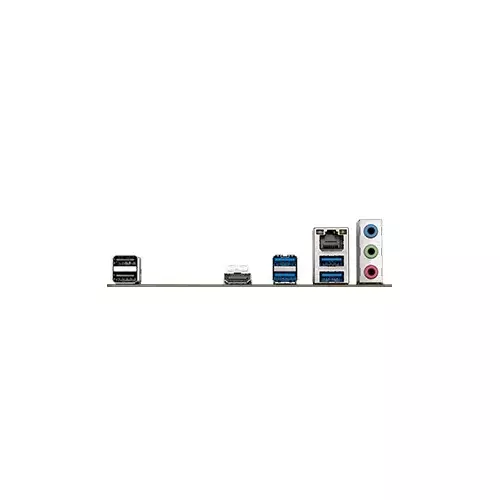

| USB Ports | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| Audio | 3 x audio jacks |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC- TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC- TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 2 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Warranty | ||
| Warranty | 3 years | |
Supporting Intel 12th, 13th, and 14th Gen Core processors on the LGA1700 socket, the Gigabyte B760M K DDR4 LGA1700 Intel Micro ATX Motherboard is a dependable and reasonably priced choice. It guarantees steady and effective performance for daily computing, gaming, and productivity tasks thanks to its dual-channel DDR4 memory support. It is an excellent option for smaller setups because to its small Micro ATX form factor without sacrificing necessary features. Fast data access and seamless multitasking are ensured by the motherboard's PCIe 4.0 graphics card slots and M.2 NVMe SSD compatibility for high-speed storage. Gigabit LAN and top-notch audio components are also included for a smooth networking and multimedia experience. The Gigabyte B760M K DDR4 offers stability, endurance, and reliable performance thanks to its Ultra Durable components and efficient thermal design. This makes it a great choice for consumers looking for an affordable yet strong platform on which to build an Intel-based system. Gigabyte B760M K DDR4 LGA1700 Intel Micro ATX Motherboard comes with 3 years warranty.
