| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4 | |
| Chipset | AMD B550 Chipset | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Memory | ||
| Number of Memory Slots | 4x memory slots | |
| Channel Supported | Dual channel memory architecture | |
| Maximum Memory | 128GB | |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Graphics | ||
| Graphics | 1x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 2.0b port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
|
| Max Shared Memory | 16GB | |
| Expansion Slots | ||
| Expansion Slots | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIE 3.0 x16 PCI_E4 (From B550 chipset) Supports PCIe 3.0 x4 4x PCIe x1 slots PCI_E2, E3, E5 and E6 slots (From B550 chipset) Supports PCIe 2.0 X1 |
|
| Storage | ||
| Supported Storage | 6x SATA 6Gb/s ports (From B550 chipset) 1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280/ 22110 storage devices |
|
| Network | ||
| LAN | 1x Realtek RTL8111H LAN controller | |
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.0b | |
| USB Ports | 1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 connectors (From B550 chipset) Supports additional 4 USB 2.0 ports |
|
| DVI-D (s) | 1x DVI-D port | |
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x Clear CMOS jumper |
|
| Others | ||
| Special feature | 2x 4-pin RGB LED connectors 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

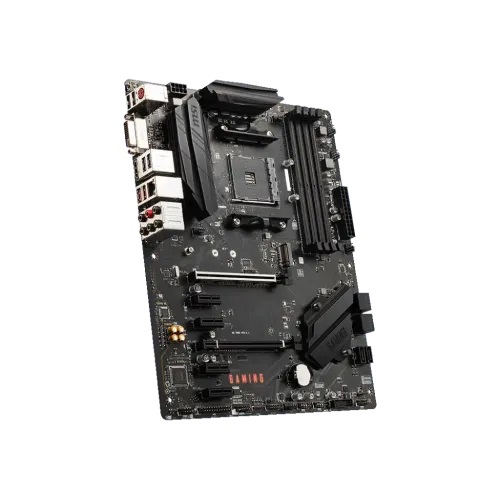

The MSI B550 Gaming Gen3 AMD ATX Motherboard is a high-performance motherboard designed for the AM4 socket and powered by the AMD B550 chipset. It supports dual-channel memory and has 4 DIMM slots, allowing a maximum memory capacity of 128GB. The motherboard features two PCIe x16 slots, four PCIe x1 slots, and six SATA III ports, making it suitable for gaming and other high-performance applications. Additionally, it has one M.2 slot, supporting high-speed NVMe SSDs for lightning-fast storage. For added security, the motherboard features RAID support and a TPM header. The front panel has two USB 3.2 ports, and the rear panel features two USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports, and two USB 3.2 Gen 2 Type-A ports. This motherboard also features Realtek® ALC897 Codec audio and has DVI-D and HDMI ports for video output. Additionally, it supports Crossfire technology, enabling multi-GPU setups for improved performance. MSI B550 Gaming Gen3 has a maximum form factor of ATX and measures 12 x 9.6 inches. It supports Windows 10 64-bit and Windows 11 64-bit operating systems, making it a great choice for high-performance gaming builds. MSI B550 Gaming Gen3 AMD ATX Motherboard comes with 3 years of warranty.
