| Basic Information | ||
| Supported CPU | AM5 Socket | |
| Chipset | AMD X870 | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Channel Supported | Dual-Channel | |
| Maximum Memory | 256GB | |
| Supported Memory | DDR5 up to 8000 MT/s | |
| Graphics | ||
| Graphics | PCIe 5.0 x16 slot | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) | |
| Storage | ||
| Supported Storage | 3 x M.2 (PCIe 5.0 compatible) + 4 x SATA III | |
| Network | ||
| LAN | Realtek 2.5Gigabit Ethernet | |
| Wireless | Wi-Fi 6 (802.11ax) + Bluetooth 5.3 | |
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Ports & Connectors | ||
| HDMI | HDMI | |
| RAID | RAID 0, 1, 5, 10 | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 4 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software | |
| Wireless Communication module | Wi-Fi 6 (802.11ax) | |
| Special feature | PCIe 5.0 and DDR5 future-ready support | |
| Warranty | ||
| Warranty | 3 Years | |

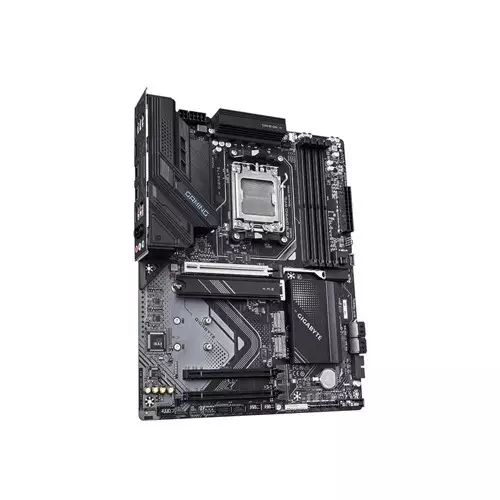

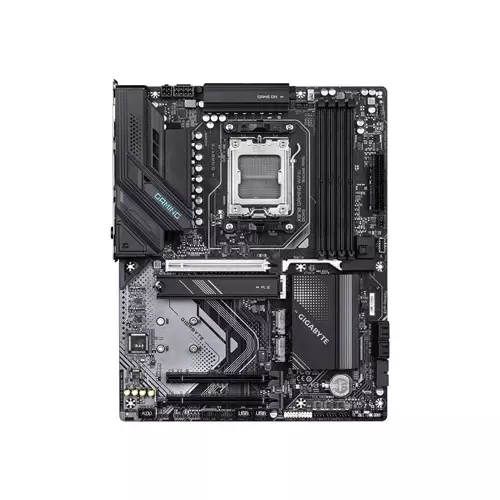

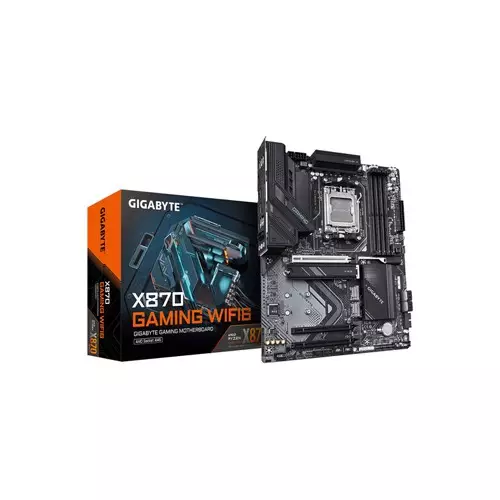

The Gigabyte X870 GAMING WIFI6 AM5 ATX Motherboard is built for enthusiasts and gamers who want a stable, feature-rich platform for modern AMD AM5 processors. Powered by the AMD X870 chipset, this ATX motherboard is designed to deliver a smooth, future-ready experience with support for DDR5 memory, PCIe 5.0 expansion, and high-speed storage options. If you’re planning a gaming rig or a productivity workstation, the X870 GAMING WIFI6 helps you build a system that can handle demanding workloads while keeping connectivity and upgrade paths in mind.
At the heart of this motherboard is the AMD X870 chipset paired with the AM5 socket, making it compatible with the latest AM5 CPU lineup. This combination is ideal for users who want strong overall performance and a modern foundation for upgrades. Compared to older platforms, an AM5-based build with DDR5 and PCIe 5.0 support is typically better suited for long-term use, especially when you plan to add faster memory kits or next-generation GPUs and SSDs over time.
This board supports DDR5 memory with four dual-channel DDR5 slots, enabling flexible configuration for different performance needs. It supports DDR5 speeds up to 8000 MT/s and supports up to 256GB total memory capacity. For gamers, higher DDR5 speeds can help improve responsiveness in memory-sensitive scenarios, while for creators and multitaskers, the ability to scale up to 256GB supports heavier projects, large datasets, and smoother workflow when running multiple applications at once.
The Gigabyte X870 GAMING WIFI6 includes a PCIe 5.0 x16 slot designed for next-generation graphics cards. This is a strong choice if you want a motherboard that can keep pace with modern GPU performance and future upgrades. When building a high-end system, pairing a PCIe 5.0-ready board with a capable GPU helps maintain bandwidth headroom, which can be especially valuable for high refresh rate gaming and demanding rendering tasks.
For storage, the motherboard offers three M.2 slots, including PCIe 5.0 compatibility, along with four SATA III ports. This gives you multiple ways to configure your storage strategy—whether you prefer fast NVMe SSDs for OS and games, or additional SATA drives for bulk storage. The board also supports RAID 0, 1, 5, and 10, which can be useful if you want improved performance (RAID 0) or redundancy and reliability (RAID 1/5/10) depending on your use case.
Connectivity is a key strength of this model. It includes Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for wireless devices, plus Realtek 2.5Gigabit Ethernet for fast, reliable wired networking. For online gaming and streaming, having both Wi-Fi 6 and 2.5GbE helps reduce bottlenecks and supports smoother network performance. If your workspace is near the router, the 2.5GbE LAN option is a great way to maximize stability, while Wi-Fi 6 is convenient for flexible placement without running cables.
The motherboard provides an HDMI port for display output and includes dual USB-C (USB4) support, along with multiple USB-A ports. This makes it easier to connect peripherals such as high-speed storage devices, modern accessories, and external displays. USB4 support is particularly helpful for users who want faster data transfer and versatile connectivity for compatible devices, making daily tasks like file transfers and device docking more efficient.
To support different cooling setups, the board includes dedicated headers for air and liquid cooling configurations. This is beneficial for users who want to maintain lower temperatures during long gaming sessions or heavy rendering workloads. It also integrates RGB lighting headers for enhanced aesthetics, allowing you to build a more personalized system look. For builders, the combination of cooling support and modern connectivity makes this motherboard a practical base for both performance-focused and visually styled builds.
If you’re looking for a Gigabyte X870 GAMING WIFI6 motherboard price in Bangladesh with a strong feature set, this model stands out for its AM5 platform, DDR5 support up to 8000 MT/s, PCIe 5.0 readiness, triple M.2 storage, and Wi-Fi 6 + Bluetooth 5.3 connectivity. It’s well-suited for gamers who want a responsive system, and for creators who need reliable performance and scalable memory/storage options. For a future-ready build that can evolve with your upgrades, the X870 GAMING WIFI6 is a compelling choice.
