MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard

Description

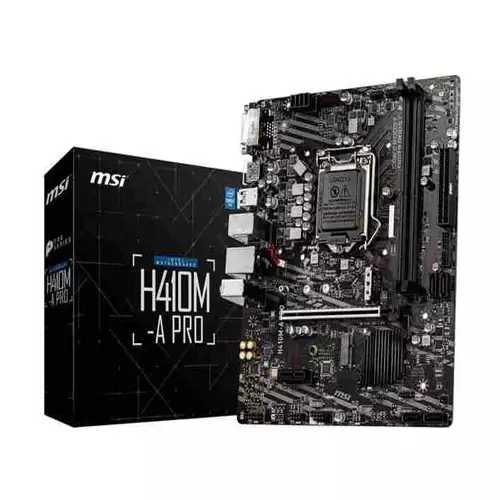

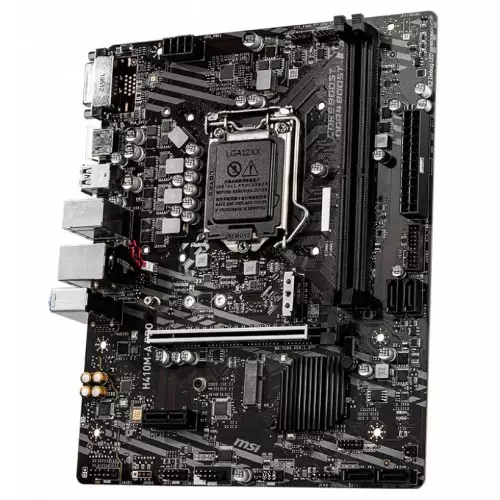

MSI Intel H410M-A PRO Micro-ATX Motherboard for 10th Gen Intel Builds

The MSI Intel H410M-A PRO Micro-ATX Motherboard is built around the Intel H410 chipset and the LGA 1200 socket, making it a practical choice for business-focused PCs and everyday productivity systems. If you’re upgrading an older, out-of-date motherboard or assembling a new workstation from scratch, this board helps you streamline the build process while keeping core compatibility aligned with 10th Gen Intel processors. It’s designed to support stable daily operation with a feature set that fits office workloads, light content creation, and general multitasking.

Core Platform: Intel H410 Chipset & LGA 1200 Support

Powered by the Intel H410 chipset architecture, the H410M-A PRO supports 10th Gen Intel Core i9, Pentium Gold, and Celeron processors on the LGA 1200 socket. This makes it well-suited for users who want a dependable platform for Windows 10 (64-bit) environments, including common business applications, web-based workflows, and productivity suites. Compared to older platforms, the LGA 1200 design provides a more modern upgrade path for compatible Intel CPUs, helping you extend the life of your system without changing every component at once.

Memory System: Dual-Channel DDR4 Up to 64GB

The motherboard includes 2 x DDR4 memory slots supporting dual-channel operation, enabling improved bandwidth for smoother multitasking and faster data handling compared to single-channel configurations. It supports non-ECC, un-buffered DDR4 memory with speeds up to 2933 MHz (for Intel Core i7/i9) and up to 2666 MHz (for Intel Core i5 and below). With support for up to 64GB of total memory, it’s a strong fit for users running multiple browser tabs, office applications, and background services—especially when you want headroom for future upgrades. Intel Extreme Memory Profile (XMP) support also helps you take advantage of compatible memory kits for better performance within the supported specifications.

Graphics & Display Outputs: DVI-D and HDMI 1.4

For display connectivity, the H410M-A PRO provides 1x DVI-D port (up to 1920x1200 60Hz) and 1x HDMI 1.4 port (up to 4096x2160 30Hz). This combination is convenient for office setups that may use a mix of monitors, including standard productivity displays and higher-resolution screens. If you’re building a workstation that relies on integrated graphics, these ports help you create a clean, cable-friendly desk arrangement. The HDMI 1.4 output is particularly useful when you want to connect to larger displays for presentations, training sessions, or media playback within the supported resolution limits.

Storage Expansion: SATA III and M.2 for Faster Load Times

Storage support includes 4x SATA 6Gb/s ports plus 1x M.2 slot (Key M). The M2_1 slot supports up to PCIe 3.0 x4 and SATA 6Gb/s, supporting 2242/2260/2280 storage devices. This gives you flexibility to pair a traditional SATA SSD/HDD for capacity with an M.2 drive for quicker OS and application loading. For typical business use, an M.2 SSD can significantly reduce boot and application launch times compared to relying only on SATA drives, while SATA ports remain useful for bulk storage, backups, and additional drives.

Connectivity: Intel I219V Gigabit LAN

For wired networking, the motherboard uses an Intel I219V Gigabit LAN controller. This is a reliable option for stable connectivity in office environments, home workstations, and systems that require consistent performance for video calls, file transfers, and cloud-based collaboration. If your workflow depends on dependable network access—such as remote meetings or transferring large documents—Gigabit Ethernet helps keep day-to-day tasks responsive.

Audio: Realtek ALC892/ALC897 7.1-Channel HD Audio

Audio is handled by a Realtek ALC892/ALC897 codec with 7.1-channel high-definition audio support. This is ideal for users who want clear sound for conference calls, training videos, and everyday multimedia. Whether you’re using headphones, a headset with a microphone, or a basic speaker setup, the onboard audio solution supports a more immersive experience for typical office and home entertainment needs.

Expansion & Build-Friendly Design

The H410M-A PRO includes expansion support with 1x PCIe 3.0 x16 and 1x PCIe 3.0 x1 slot, giving you room to add a compatible graphics card or additional expansion cards such as networking or specialized I/O solutions. For a smoother DIY experience, the board features steel armor PCIe slots reinforced with heavy soldered connections to help prevent bending, along with an XL clip for easier device swapping. Double ESD protection adds an extra grounding layer to help reduce the risk of shorts during installation, and an EZ debug LED system helps identify component issues faster—useful when troubleshooting during initial setup.

Ports, Headers & Trusted Platform Support

On the rear I/O, you get keyboard/mouse connectivity, LAN, DVI-D, HDMI, USB 3.2 Gen 1 5Gbps Type-A, and multiple USB 2.0 ports. Internally, the board provides a 24-pin ATX main power connector and an 8-pin ATX 12V power connector, along with fan connectors (1x 4-pin CPU fan and 1x 4-pin system fan). For system security and manageability, it includes a TPM module connector, supporting Trusted Platform Module integration for compatible security features. Additional internal headers include front panel audio, front panel connectors, a serial port connector, a clear CMOS jumper, and a chassis intrusion connector—helpful for users who want more control over system behavior and maintenance.

Software & Warranty

MSI Dragon Center software is included for managing advanced motherboard features from a dashboard, including fan control, hardware monitoring, and overclock settings (where supported). It also supports user scenarios and live updates, helping you tailor system behavior to different usage patterns. The motherboard comes with a 3-year warranty, providing added confidence for long-term ownership.
