| Basic Information | ||
| Supported CPU | Intel® Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® (LGA1151, 6th Gen) | |
| Chipset | Intel® H110 Express Chipset | |
| Memory | ||
| Number of Memory Slots | 2 | |
| Channel Supported | Dual Channel | |
| Maximum Memory | Up to 32 GB | |
| Supported Memory | DDR4 2133 MHz; supports ECC UDIMM 1Rx8/2Rx8 (non-ECC mode) and non-ECC UDIMM 1Rx8/2Rx8/1Rx16 | |
| Graphics | ||
| Graphics | Intel® HD Graphics (integrated) | |
| Max Shared Memory | 1024 MB | |
| Storage | ||
| Supported Storage | 4 x SATA 6Gb/s connectors | |
| Network | ||
| LAN | Realtek® GbE LAN (10/100/1000 Mbit) | |
| Audio | ||
| Audio | Realtek® ALC887 High Definition Audio (2/4/5.1/7.1-channel) with S/PDIF Out | |
| BIOS | ||
| BIOS | GIGABYTE UEFI DualBIOS™ Technology | |
| Ports & Connectors | ||
| HDMI | HDMI 1.4 | |
| Audio | Realtek® ALC887 High Definition Audio (S/PDIF Out supported) | |
| Others | ||
| Bundled Software | GIGABYTE™ APP Center; cFosSpeed Internet Accelerator Software | |
| Special feature | Audio Noise Guard with LED Trace Path Lighting; GIGABYTE UEFI DualBIOS™ Technology; Support Intel® Small Business Basics | |
| Warranty | ||
| Warranty | 3 Years | |

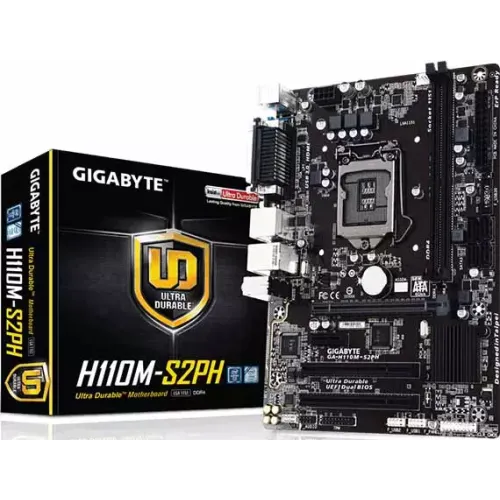

The GIGABYTE GA-H110M S2PH-DDR4 is a dependable Intel H110 Express motherboard designed to support 6th Generation Intel® Core™ processors. Built for everyday productivity and stable home/office computing, it combines dual-channel DDR4 memory support, integrated graphics outputs, and a straightforward storage setup with SATA 6Gb/s connectivity. If you’re assembling a cost-conscious PC that still needs reliable performance for web work, office applications, and general multitasking, this board offers a practical feature set in a compact platform.
CPU compatibility: This motherboard supports Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Pentium®, and Intel® Celeron® processors in the LGA1151 package. That makes it suitable for users upgrading an existing LGA1151 build or creating a new system around a 6th Gen Intel® CPU. With L3 cache varying by processor model, you can choose a CPU level that matches your workload—ranging from basic computing to more demanding day-to-day tasks.
Memory configuration: The GA-H110M S2PH-DDR4 provides 2 x DDR4 DIMM slots and supports a dual-channel memory architecture. It supports DDR4 2133 MHz memory modules, helping deliver consistent system responsiveness for multitasking and general computing. The board supports up to 32 GB of system memory, which is ideal for users who want headroom for heavier browser sessions, office suites, and multiple background applications.
Memory type notes: It supports ECC UDIMM 1Rx8/2Rx8 modules, operating in non-ECC mode, and also supports non-ECC UDIMM 1Rx8/2Rx8/1Rx16 configurations. For most home and office builds, non-ECC UDIMMs are typically the straightforward choice, while the ECC compatibility (in non-ECC mode) provides flexibility if you already have compatible modules.
Onboard video: The motherboard includes an integrated graphics processor with Intel® HD Graphics support. It features 1 x D-Sub port (up to 1920x1200@60 Hz) and 1 x HDMI port (up to 4096x2160@24 Hz), supporting HDMI 1.4. The maximum shared memory is 1024 MB, which helps the system handle display tasks without requiring a dedicated graphics card—making it a good fit for office work, media playback, and everyday desktop use.
Audio chipset: Onboard audio is powered by the Realtek® ALC887 codec, supporting High Definition Audio configurations including 2/4/5.1/7.1-channel output. For 7.1-channel audio, you’ll need to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. This setup is well-suited for users who want more immersive sound for movies, casual gaming, or music listening—especially when paired with compatible speakers or a headset.
Digital audio: The board also supports S/PDIF Out, which is useful if you connect to external audio receivers or sound systems that accept optical/coaxial digital input.
LAN: The GA-H110M S2PH-DDR4 includes a Realtek® GbE LAN chip supporting 10/100/1000 Mbit networking. This is a strong baseline for stable wired internet performance in homes and small offices, supporting smooth video calls, file transfers, and reliable access to cloud services. For users who prioritize low-latency and consistent throughput, a wired GbE connection is often more dependable than Wi‑Fi for streaming and large downloads.
Storage interface: The chipset provides 4 x SATA 6Gb/s connectors. This allows you to connect multiple SATA drives for system storage and data organization—such as an OS drive plus additional HDDs/SSDs for documents, media, and backups. If you’re building a practical storage layout, having four SATA ports helps you scale capacity without needing immediate upgrades.
UEFI DualBIOS™ technology: The board includes GIGABYTE UEFI DualBIOS™ Technology, which is designed to improve system resilience by providing an additional BIOS safeguard. This can be especially valuable during BIOS updates or when experimenting with system settings.
GIGABYTE APP Center: It also features the GIGABYTE™ APP Center, designed to be simple and easy to use for managing supported utilities. For many users, this reduces setup friction and helps keep system tools organized.
Audio-focused design: The platform includes Audio Noise Guard with LED trace path lighting, which is intended to help maintain cleaner audio signals. Combined with the Realtek codec, it supports a more enjoyable listening experience for speakers and headphones.
The GIGABYTE GA-H110M S2PH-DDR4 comes with a 3 Years warranty, giving added confidence for long-term ownership in a home or office PC build.
