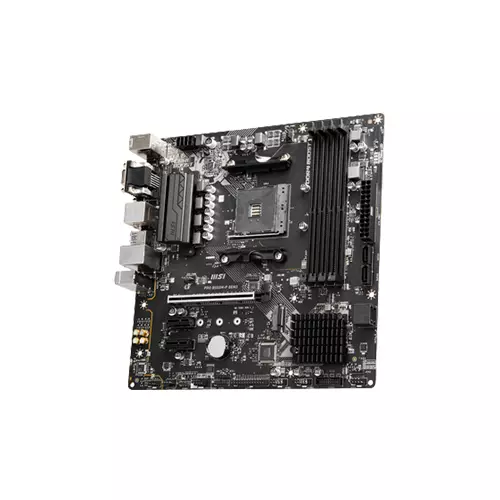

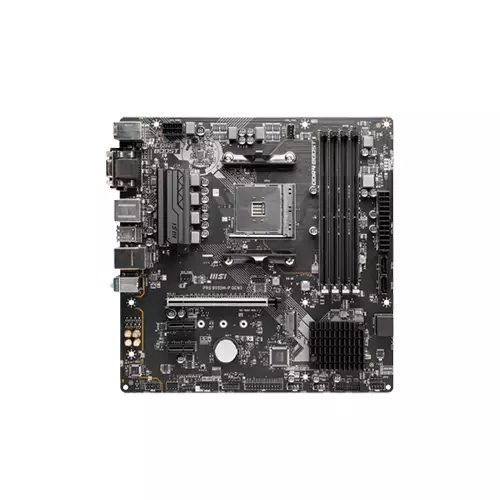

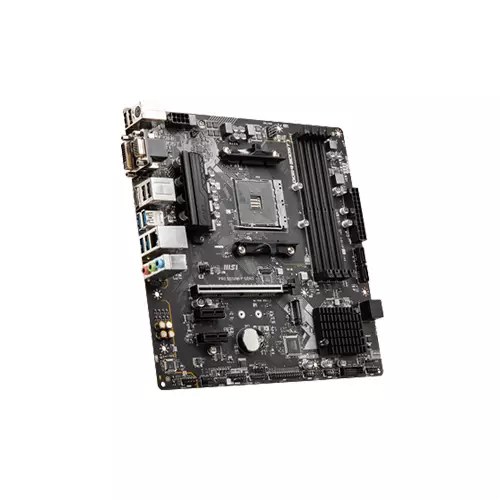

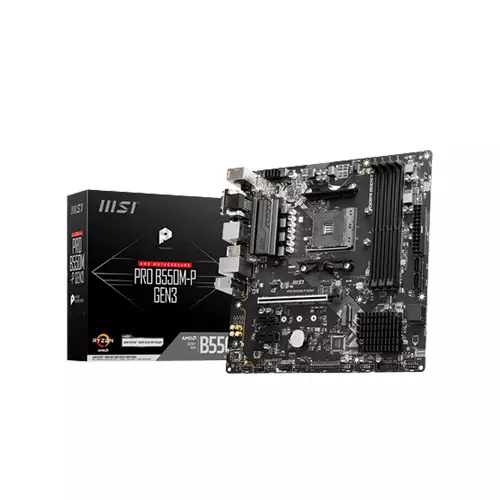

MSI PRO B550M-P GEN3 AM4 DDR4 MICRO ATX MOTHERBOARD

Description

MSI PRO B550M-P GEN3 AM4 DDR4 Micro ATX Motherboard for Reliable Ryzen Builds

The MSI PRO B550M-P GEN3 is a DDR4 Micro ATX motherboard designed for dependable everyday performance and smooth system stability. Built around the AMD B550 chipset, it supports a wide range of AMD Ryzen desktop processors and provides a practical platform for work, study, and gaming-ready PC builds. With a clean, professional PRO-series approach, this board focuses on efficient operation, easier troubleshooting, and long-term usability—ideal for users who want a straightforward upgrade path without unnecessary complexity.

CPU Support for AMD Ryzen Desktop Processors (AM4)

This motherboard supports AMD Ryzen™ 5000 and 3000 Series desktop processors, along with AMD Ryzen™ 4000 G-Series desktop processors. It is not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G, so it’s important to confirm your CPU model before purchase. The AM4 platform makes it a strong choice for users building a new system or upgrading an existing Ryzen setup, especially when paired with DDR4 memory for a balanced performance-to-cost configuration.

DDR4 Memory System with Up to 128GB Capacity

Equipped with 4x DDR4 memory slots, the MSI PRO B550M-P GEN3 supports up to 128GB of RAM, giving you room for multitasking, heavier workloads, and future upgrades. The board supports DDR4 memory speeds including 1866/2133/2400/2667/2800 (as listed in the source), and it also supports DDR4 up to 4400 (OC) MHz. With a fully isolated DDR4 circuit designed to deliver pure data signals, it helps improve signal integrity for better performance and stability—particularly useful when running memory-intensive applications like large spreadsheets, development environments, or modern games.

Storage Expansion with SATA and High-Speed M.2

For storage, the motherboard offers 4x SATA 6Gb/s ports from the AMD B550 chipset, supporting reliable SSD and HDD setups for everyday computing. For faster boot and application loading, it includes an M.2 slot (Key M) with Turbo M.2 support, enabling PCI-E Gen3 x4 performance for NVMe-based SSDs. This combination is well-suited for users who want a responsive OS drive plus additional storage for media libraries, backups, or project files—an excellent setup for both productivity PCs and gaming systems.

Graphics and Display Connectivity: HDMI, VGA, and DVI-D

The MSI PRO B550M-P GEN3 supports both digital and legacy video output, featuring HDMI, VGA, and DVI-D ports. This flexibility is helpful when you’re connecting to different display types—such as a modern monitor for daily use or a legacy display for troubleshooting and temporary setups. It also supports 4K and legacy video, making it a practical choice for users who want clear output options without needing additional adapters.

Audio Boost for Immersive Studio-Grade Sound

Audio Boost technology is included to deliver studio-grade sound quality, enhancing the listening experience for gaming, video calls, and media playback. If you use headphones or a basic speaker setup, this feature helps provide a more enjoyable audio profile compared to basic onboard audio implementations. It’s a good fit for creators and students who spend time on voice communication, online learning, or audio/video consumption.

Core Boost Power Design and EZ Debug LED Troubleshooting

The board includes Core Boost technology, combining MSI’s premium layout and optimized power design to deliver faster and more precise current delivery to the CPU. This supports multi-core processors and helps create favorable conditions for overclocking scenarios. For easier maintenance, it also features EZ Debug LED, which simplifies troubleshooting by helping you identify issues during boot—useful for DIY builders and anyone who wants faster diagnosis when something doesn’t start correctly.

Connectivity and Network: 1Gbps Realtek LAN

For networking, the MSI PRO B550M-P GEN3 uses a 1x Realtek® RTL8111H 1Gbps LAN controller. This provides stable wired connectivity for online work, streaming, and gaming sessions where consistent latency matters. Wired LAN is often preferred over wireless for tasks like large downloads, video conferencing, and competitive gaming because it can reduce interference and maintain a more predictable connection.

PRO Series Usability: BIOS Control, Fan Management, and MSI Center

The PRO series focus extends beyond hardware into usability. The motherboard supports fully controllable BIOS and software-based management, including speed and temperature monitoring for CPU and system fans. Total Fan Control allows you to check system characteristics in a simplified graphical interface and set up to 4 temperature targets for automatic fan speed adjustments. Additionally, MSI Center integrates MSI exclusive tools into a user-friendly interface, making it easier to manage performance settings and system monitoring without advanced technical knowledge.

Built for Stability and Compatibility Testing

MSI conducts thorough memory testing with popular memory brands under extreme conditions to help ensure stable operation across common configurations. This testing approach supports compatibility and reduces the likelihood of frustrating boot or memory instability issues. For buyers in Bangladesh looking for a dependable AM4 DDR4 motherboard for daily use, this stability-first design helps make the build process smoother and the system more reliable over time.
