| Basic Information | ||
| Supported CPU | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel B760 | |
| Form Factor | ATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Maximum Memory | 256GB | |
| Supported Memory | DDR5 | |
| Graphics | ||
| Graphics | Integrated With Processor | |
| Expansion Slots | ||
| Expansion Slots | 3 x M.2 (1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)) | |
| Storage | ||
| Supported Storage | 3 x M.2 (1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)) | |
| Network | ||
| LAN | Realtek 2.5GbE LAN chip | |
| Wireless | Wi‑Fi 6E | |
| Audio | ||
| Audio | Realtek Audio CODEC | |
| BIOS | ||
| BIOS | AMI UEFI BIOS | |
| Ports & Connectors | ||
| HDMI | 1 | |
| USB Ports | 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support, 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header), 1 x USB 2.0/1.1 port on the back panel | |
| Display Port | 1 | |
| RAID | 0 , 1 , 5, 10 | |
| TPM (Trusted Platform Module ) | 1 | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset jumper, Back Panel Connectors: 2 x antenna connectors (2T2R), 1 x RJ-45 port, 6 x audio jacks | |
| Warranty | ||
| Warranty | 3 year | |

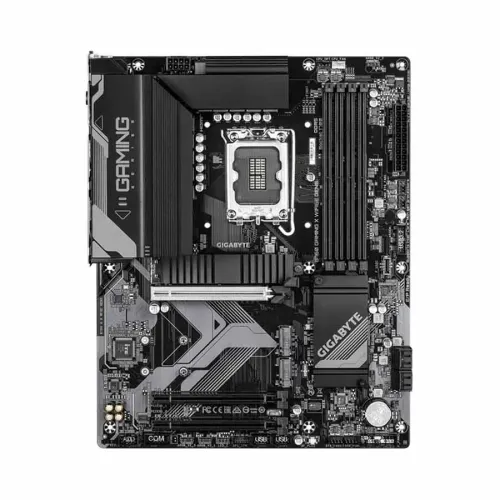

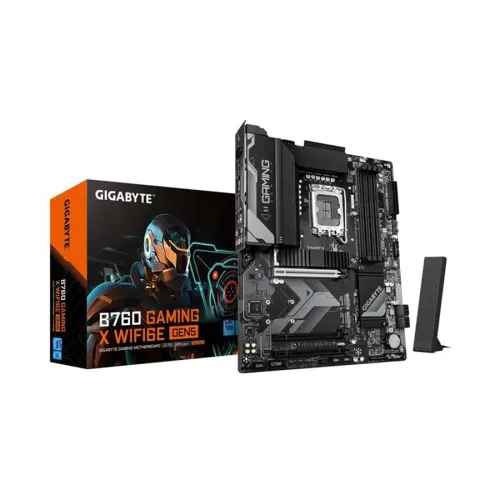

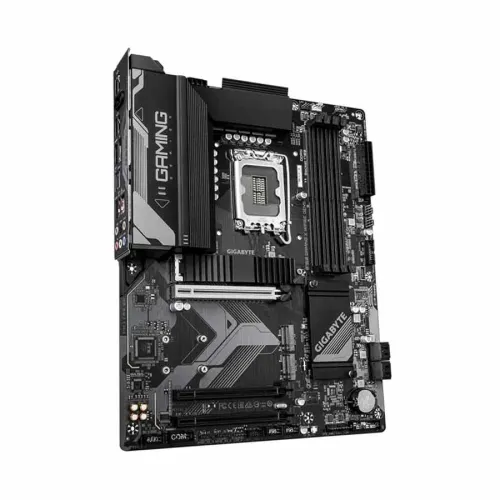

The Gigabyte B760 GAMING X GEN5 is an ATX motherboard built for smooth gaming performance, fast content creation workflows, and reliable everyday multitasking. Designed around the Intel B760 chipset and the LGA1700 socket, it supports Intel 12th/13th/14th Gen processors, giving you a flexible platform for both new builds and upgrades. With DDR5 memory support and modern wireless connectivity, this board is a strong choice for users who want a responsive system without compromising on connectivity or platform longevity.
This motherboard supports Intel 12th, 13th, and 14th Generation Core processors, along with Pentium Gold and Celeron CPUs, all using the LGA1700 socket. That compatibility makes it ideal if you’re planning a staged upgrade path—such as starting with a mid-range CPU and later moving to a higher-performance Intel Core model—while keeping the same motherboard. It’s also well-suited for productivity setups where stable CPU performance matters for tasks like video editing, rendering, and large spreadsheet work.
Equipped with DDR5 memory support, the Gigabyte B760 GAMING X GEN5 helps improve system responsiveness through faster memory bandwidth compared to older DDR generations. The board includes 4 memory slots and supports up to 256GB of maximum memory, which is beneficial for heavy multitasking, memory-intensive creative applications, and smoother performance when running multiple programs at once. If you’re building a gaming PC, DDR5 can also help reduce bottlenecks during high-load scenarios, especially when paired with a capable CPU and fast storage.
With an ATX form factor, this motherboard is designed to fit standard ATX cases, offering more room for airflow and component installation than smaller form factors. That extra space can be helpful for managing thermals—particularly when you’re using a larger CPU cooler or adding multiple expansion components. For builders in Bangladesh who want a clean, upgrade-ready setup, ATX is a practical balance between performance potential and build convenience.
The board features Wi‑Fi 6E technology, enabling ultra-fast wireless networking with lower latency. This is especially useful for online gaming, live streaming, and video calls where stable connection quality matters. Compared to older Wi‑Fi standards, Wi‑Fi 6E can provide better performance in environments with many connected devices, helping your system stay responsive even during peak network usage. For users who prefer fewer cables, the built-in wireless option simplifies setup while still supporting demanding workloads.
The Gigabyte B760 GAMING X GEN5 includes thermal-focused design elements such as heatsinks and cooling zones to help manage temperatures under sustained workloads. Keeping temperatures under control supports consistent performance during long gaming sessions or extended rendering tasks. The board also supports PCIe Gen5 components, which is valuable if you plan to use next-generation graphics or high-speed storage solutions for faster data transfer and improved overall responsiveness.
To maintain stable performance, install the motherboard in a static-free environment and handle it by the edges to avoid accidental damage. Periodically clean dust from heatsinks, fans, and ports using compressed air, and ensure your PC case has proper airflow. Keeping BIOS and firmware updated helps maintain compatibility and can include security improvements, while occasional checks of cable connections can prevent performance issues caused by loose connectors over time.
If you’re looking for a future-ready Intel LGA1700 motherboard with DDR5 support and Wi‑Fi 6E, the Gigabyte B760 GAMING X GEN5 is a compelling foundation for your next-generation PC. You can purchase this motherboard from PQS Computers online or from their showrooms in Bangladesh, with warranty support and professional assistance available for configuration and troubleshooting needs.
