| Basic Information | ||
| Supported CPU | Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron | |
| Chipset | Intel B760 Express | |
| Form Factor | Micro ATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Channel Supported | Dual-channel | |
| Maximum Memory | 256 GB | |
| Supported Memory | DDR5 (up to 7600(O.C.) MT/s) | |
| Graphics | ||
| Graphics | HDMI 2.1 and DisplayPort 1.2 | |
| Expansion Slots | ||
| Expansion Slots | PCIe 5.0 x16, PCIe 3.0 x4 | |
| Storage | ||
| Supported Storage | Dual M.2 PCIe 4.0 and 4x SATA 6Gb/s | |
| Network | ||
| LAN | Realtek 2.5GbE LAN | |
| Audio | ||
| Audio | Realtek HD Audio CODEC (up to 7.1-channel) | |
| BIOS | ||
| BIOS | Q-Flash Plus | |
| Ports & Connectors | ||
| HDMI | HDMI 2.1 | |
| Display Port | DisplayPort 1.2 | |
| Audio | Realtek HD Audio CODEC | |
| RAID | RAID 0, 1, 5, 10 | |
| TPM (Trusted Platform Module ) | TPM (Trusted Platform Module) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC- TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper | |
| Others | ||
| Bundled Software | Norton Internet Security | |
| Special feature | Q-Flash Plus, TPM support | |
| Warranty | ||
| Warranty | 3-year warranty | |

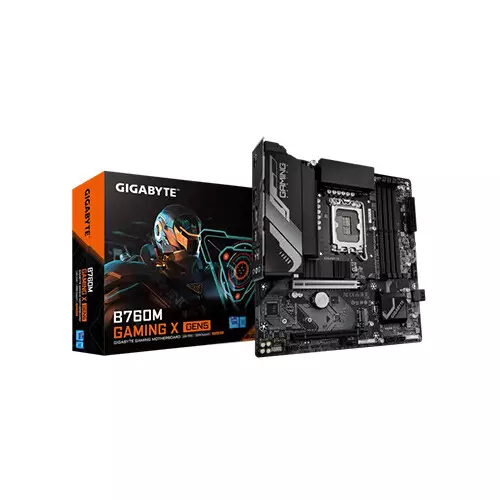

The Gigabyte B760M GAMING X GEN5 DDR5 Intel Micro ATX Motherboard is built for users in Bangladesh who want a reliable, feature-rich foundation for gaming rigs, content creation workstations, and everyday productivity PCs. Powered by the Intel B760 Express chipset and designed for the LGA1700 socket, it supports Intel 14th, 13th, and 12th Generation processors, giving you flexibility whether you’re upgrading an existing system or planning a new build with future-ready performance.
This motherboard supports DDR5 memory with up to 7600(O.C.) MT/s performance, using 4 DIMM slots for a maximum memory capacity of 256GB. The dual-channel memory architecture helps improve responsiveness for multitasking, gaming, and demanding applications, while XMP support is included to help you run memory at optimized speeds with stability. It also supports both ECC and non-ECC DIMMs, offering versatility for different user needs—whether you prioritize maximum performance or enhanced reliability for long-running workloads.
For storage, the B760M GAMING X GEN5 includes dual M.2 PCIe 4.0 slots, enabling fast boot and application load times—ideal for gamers who want quicker map loading and creators who work with large files. It also provides four SATA 6Gb/s connectors for additional drives. RAID support (RAID 0, 1, 5, and 10) is available, making it easier to configure setups focused on performance, redundancy, or a balanced approach depending on your workflow.
Graphics connectivity is supported through HDMI 2.1 and DisplayPort 1.2, with resolutions up to 4096x2304—useful for high-definition gaming, productivity displays, and content editing. Expansion options are designed to keep your system adaptable: it features a PCIe 5.0 x16 slot for next-gen graphics cards, helping you build a platform that can evolve as GPU technology advances. There is also a PCIe 3.0 x4 slot for additional cards, such as extra storage controllers or specialized add-in hardware.
For stable online gaming and smooth streaming, the motherboard uses a Realtek 2.5GbE LAN chip, delivering ultra-fast wired connectivity for reduced latency and better throughput compared to standard gigabit setups. Audio is handled by the Realtek HD Audio CODEC, supporting up to 7.1-channel output, which is well-suited for immersive sound experiences in games and richer audio playback for media consumption.
The Gigabyte B760M GAMING X GEN5 DDR5 motherboard offers extensive connectivity with multiple USB 3.2 Gen1, USB 2.0, and USB Type-C ports, along with headers for Thunderbolt add-in cards. It also includes support for RGB and addressable LED strips, helping you build a clean, customizable setup. For security and manageability, TPM support is included. BIOS updates are made easier with Q-Flash Plus, which is especially helpful when you want to update firmware without unnecessary complexity.
Bundled software: Norton Internet Security is included for added protection.
Form factor: Micro ATX (24.4cm x 24.4cm), making it a strong choice for compact builds while still offering premium features and expansion options.
Warranty: 3-year warranty for long-term reliability.
If you’re looking for a DDR5 motherboard that balances performance, expandability, and practical connectivity, the Gigabyte B760M GAMING X GEN5 is a compelling option. Its support for high-speed DDR5 (up to 7600(O.C.) MT/s), PCIe 5.0 x16 for future GPUs, dual M.2 PCIe 4.0 storage, and fast 2.5GbE LAN makes it well-suited for gamers and creators who want a dependable platform without compromising on modern features.
You can purchase the Gigabyte B760M GAMING X GEN5 DDR5 Intel Micro ATX Motherboard from Tech Land BD with genuine product assurance, a 3-year warranty, and reliable after-sales support. Enjoy nationwide delivery, flexible EMI options, and peace of mind when upgrading your PC with a future-ready Intel B760 platform.
