| Basic Information | ||
| Supported CPU | Supports 4th Generation Intel® Core™ processors | |
| Chipset | Intel H81 | |
| Form Factor | Micro ATX | |
| Memory | ||
| Number of Memory Slots | 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules | |
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 Maximum shared memory of 1 GB | |
| Storage | ||
| Supported Storage | 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices | |
| Network | ||
| LAN | LAN with high ESD Protection | |
| Audio | ||
| Audio | Realtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel | |
| BIOS | ||
| BIOS | GIGABYTE UEFI DualBIOS™ | |
| Ports & Connectors | ||
| USB Ports | Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Ports | 1 x 24-pin ATX mai n power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper | |
| Others | ||
| Special feature | GIGABYTE On/Off Charge™ for USB devices; GIGABYTE Ultra Durable™ 4 Plus; All solid capacitors design | |
| Warranty | ||
| Warranty | 03 Years Warranty | |

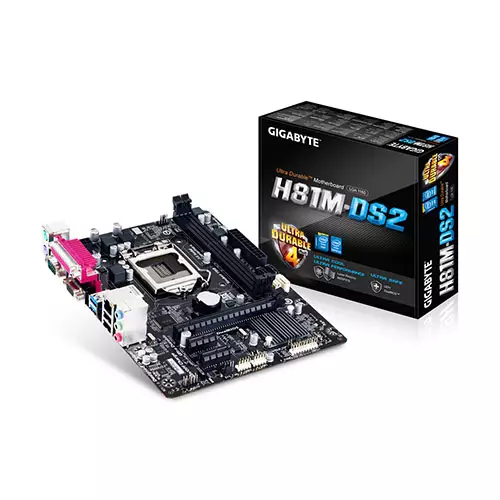

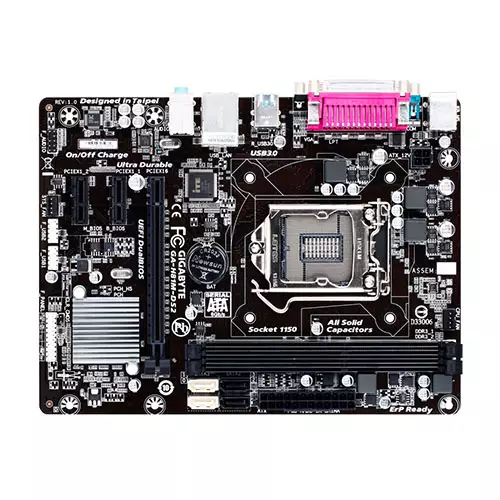

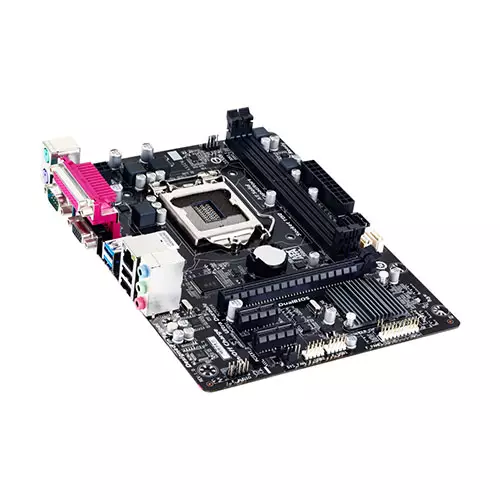

The Gigabyte GA-H81M-DS2 is a Micro ATX motherboard designed to support 4th Generation Intel® Core™ processors, making it a practical choice for building a stable home or office PC. Built on the Intel 8 Series platform with the H81 chipset, it focuses on efficient day-to-day computing, dependable system stability, and long-term component durability—ideal for users who want a straightforward upgrade path without unnecessary complexity.
This motherboard supports 4th Generation Intel® Core™ processors, enabling smooth performance for common productivity tasks such as web browsing, document work, and multitasking. Compared to older platforms, the 8 Series design is intended to improve overall efficiency and productivity, while pairing with Intel’s integrated graphics (HD4600 mentioned in the platform description) for capable everyday visuals and smoother frame rates in compatible DX11 titles.
Gigabyte’s Ultra Durable™ 4 Plus technology is featured on this model, emphasizing component choices that help maintain stable operation over time. The design uses all solid capacitors and low RDS(on) MOSFETs rated to work at higher temperatures, which supports cooler and more efficient performance. For buyers, this means the GA-H81M-DS2 is well-suited for systems that run for long hours—such as office PCs, study/workstations, and home systems that stay powered throughout the day.
With GIGABYTE UEFI DualBIOS™, the motherboard includes both a Main BIOS and a Backup BIOS. This provides protection against BIOS failure scenarios such as virus attack, hardware malfunction, improper overclocking settings, or power loss during BIOS updates. If you frequently experiment with settings or perform firmware updates, DualBIOS™ helps reduce downtime risk and makes maintenance more confident than systems relying on a single BIOS chip.
The GA-H81M-DS2 includes USB 3.0 ports with GIGABYTE 3x USB power, supporting faster and more capable connectivity for compatible peripherals. It also features GIGABYTE On/Off Charge™ for USB devices, which is especially useful for charging phones, tablets, or other USB-powered accessories. This is convenient in daily use because it helps keep your devices powered without needing to rely solely on software or specific usage patterns.
For wired connectivity, the motherboard offers LAN with high ESD protection, helping safeguard the network interface against electrostatic discharge events—an advantage in environments where cables are frequently connected or where static can occur. On the rear panel, it includes LPT, COM, and D-SUB ports, which can be valuable for users who need legacy connectivity for specific peripherals, industrial equipment, or older display/communication setups.
The Gigabyte GA-H81M-DS2 comes with a 03 Years Warranty, giving additional peace of mind for long-term ownership. If you’re assembling a dependable Micro ATX system for home, education, or office use, this warranty support complements the board’s durability-focused design.
