Gigabyte GA-H81M-S2PH DDR3 Motherboard
  • Gigabyte GA-H81M-S2PH DDR3 Motherboard
  • Gigabyte GA-H81M-S2PH DDR3 Motherboard
  • Gigabyte GA-H81M-S2PH DDR3 Motherboard

Gigabyte GA-H81M-S2PH DDR3 Motherboard

0
(0) Review
  • Brand:Gigabyte
  • Product Code: 20616
  • Model: GA-H81M-S2PH
  • Availability: In Stock

Description

  • Form Factor - Micro-ATX
  • Chipset - Intel H81
  • Sockets Supported - LGA1150
  • Supported CPU - Intel Core i7/ i5/ i3/ Pentium/ Celeron processor
  • Generation - 4th
  • Memory Slot - 2
  • Memory Max. - 16GB
  • Back-Connect Design - No
  • Body Color - Black
Show More
৳8,800
remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPUIntel Core i7/ i5/ i3/ Pentium/ Celeron
Chipset Intel H81
Form Factor Micro-ATX
Memory
Number of Memory Slots DDR3
Maximum Memory16GB
Graphics
Graphics Intel HD Graphics support
Network
LANRealtek GbE LAN
Audio
Audio Realtek ALC887 codec
BIOS
BIOS2 x 64 Mbit flash, AMI EFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Ports & Connectors
HDMI 1
USB Ports 2 x USB 3.0/2.0, 6 x USB 2.0/1.1
Internal I/O Ports1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper
Warranty
Warranty 3 year

Description

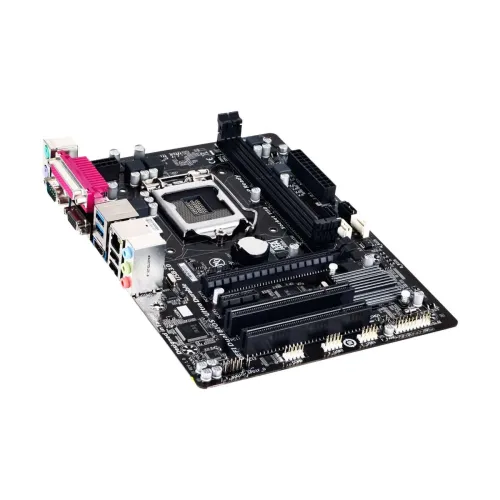

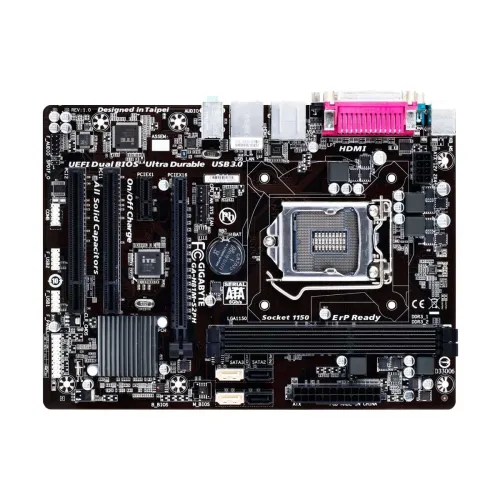

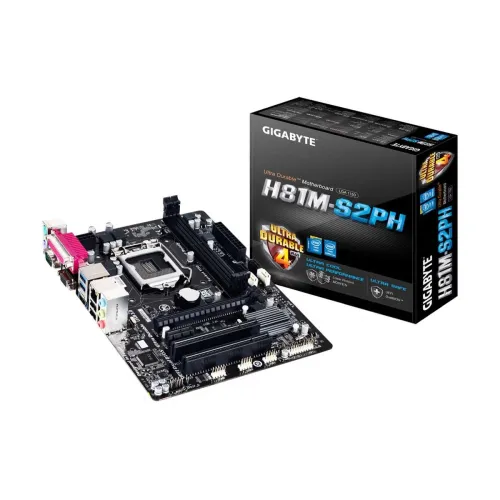

Gigabyte GA-H81M-S2PH DDR3 Motherboard

The Gigabyte GA-H81M-S2PH DDR3 Motherboard is engineered to support 4th Generation Intel Core, Pentium, and Celeron processors in the LGA1150 package, powered by the Intel H81 Express Chipset. Built with a micro-ATX form factor, it features two DIMM sockets supporting up to 16GB of dual-channel DDR3 memory at 1600/1333 MHz. For graphics and display, it integrates Intel HD Graphics support via D-Sub and HDMI 1.4a ports. Storage connectivity includes two SATA 6Gb/s and two SATA 3Gb/s connectors. Expansion capabilities consist of one PCI Express x16 slot, one PCI Express x1 slot, and two legacy PCI slots. Networking is handled by a Realtek GbE LAN chip, while audio performance is driven by the Realtek ALC887 codec supporting up to 7.1-channel high-definition audio. This board incorporates GIGABYTE Ultra Durable 4 Plus technology with all-solid capacitors, UEFI DualBIOS, USB 3.0 ports, and On/Off Charge technology. Rear panel I/O options include LPT, COM, and PS/2 ports. It comes with a 3-year manufacturing warranty.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of Gigabyte GA-H81M-S2PH DDR3 Motherboard in Bangladesh?

The best price of Gigabyte GA-H81M-S2PH DDR3 Motherboard in Bangladesh is 8,800. You can buy the Gigabyte GA-H81M-S2PH DDR3 Motherboard at best price from our website.
